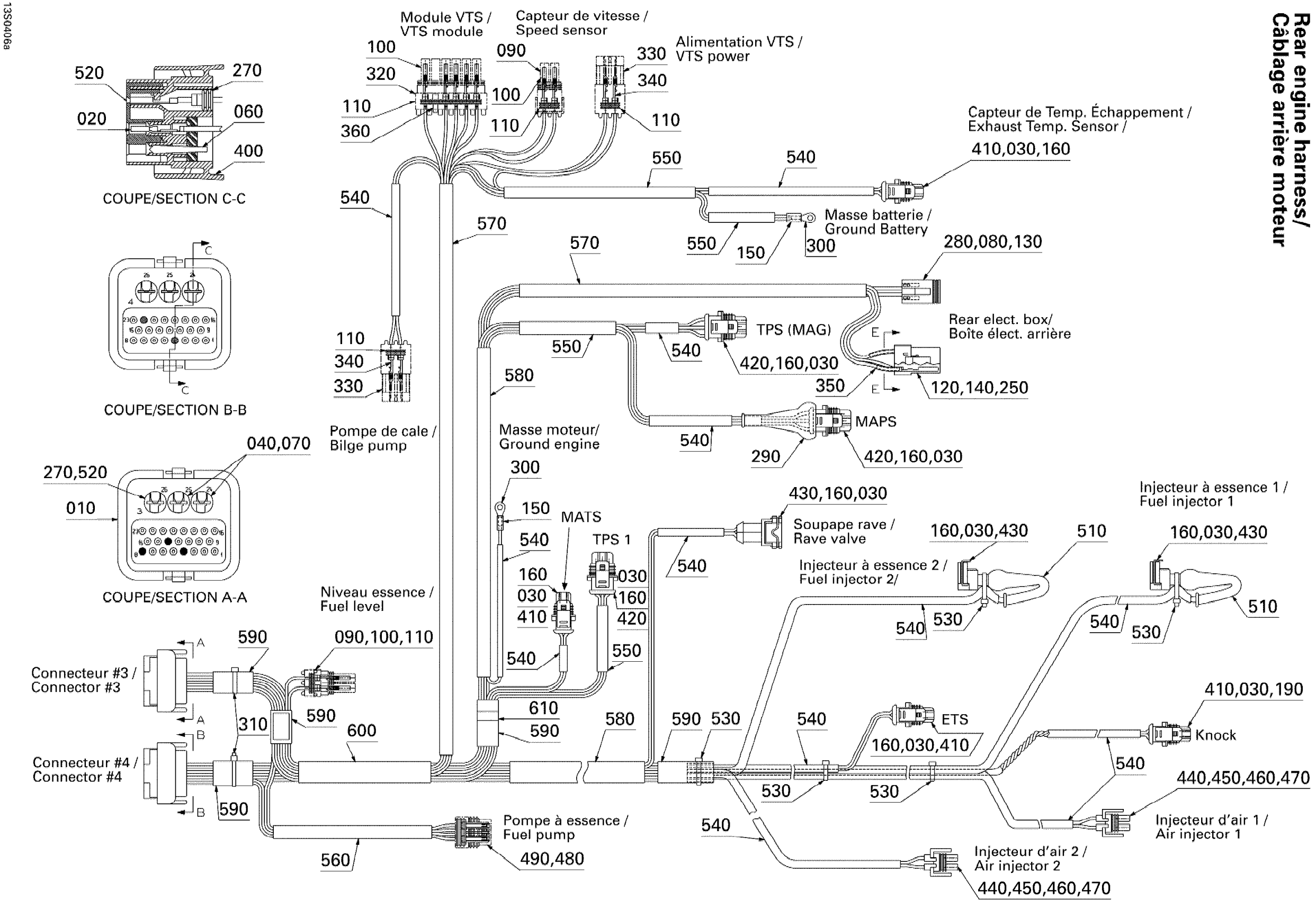

Sea-doo XP DI, 2004 Rear Engine Harness Diagram

#

Description
Price

10

Rear Engine Wiring Harness | Includes 10 to 610

278001878

Unavailable

10

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

20

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

30

Wire Seal

278000999

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

60

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

70

Seal

278001223

Unavailable

80

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

90

Male Connector, 2 Circuits

278000220

Unavailable

100

Female Terminal

278000223

Unavailable

110

Wire Seal

278000218

Unavailable

120

Female Terminal Housing, 4 Circuits

278001473

Unavailable

130

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

140

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

150

Not Available As Spare Part - Friction Washer

Unavailable

160

Female Terminal

278000998

Unavailable

190

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

250

Female Lock, 4 Circuits

278001474

Unavailable

270

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

280

Female Terminal

278000632

Unavailable

290

Not Available As Spare Part - Friction Washer

Unavailable

300

Open Barrel Terminal

278001392

Unavailable

310

Tie Wrap 142 mm

293750002

Unavailable

320

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

330

Female Housing, 2 Circuits

278000217

Unavailable

340

Male Terminal

409004300

Unavailable

350

Not Available As Spare Part - Friction Washer

Unavailable

360

Wire Seal

278000216

Unavailable

400

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

410

Male Housing, 2 Circuits

278001005

Unavailable

420

Male Housing, 3 Circuits

278000997

Unavailable

430

Male Connector, 2 Circuits

278001003

Unavailable

440

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

Unavailable

450

Female Terminal

278001481

Unavailable

460

Seal

278001482

Unavailable

470

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

Unavailable

480

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

490

Female Terminal

278001114

Unavailable

510

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

520

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

530

Tie Wrap 94 mm | 4X4

293750001

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable

550

Not Available As Spare Part - Friction Washer

Unavailable

560

Not Available As Spare Part - Friction Washer

Unavailable

570

Not Available As Spare Part - Friction Washer

Unavailable

580

Not Available As Spare Part - Friction Washer

Unavailable

590

Not Available As Spare Part - Friction Washer

Unavailable

600

Not Available As Spare Part - Friction Washer

Unavailable

610

Not Available As Spare Part - Friction Washer

Unavailable
