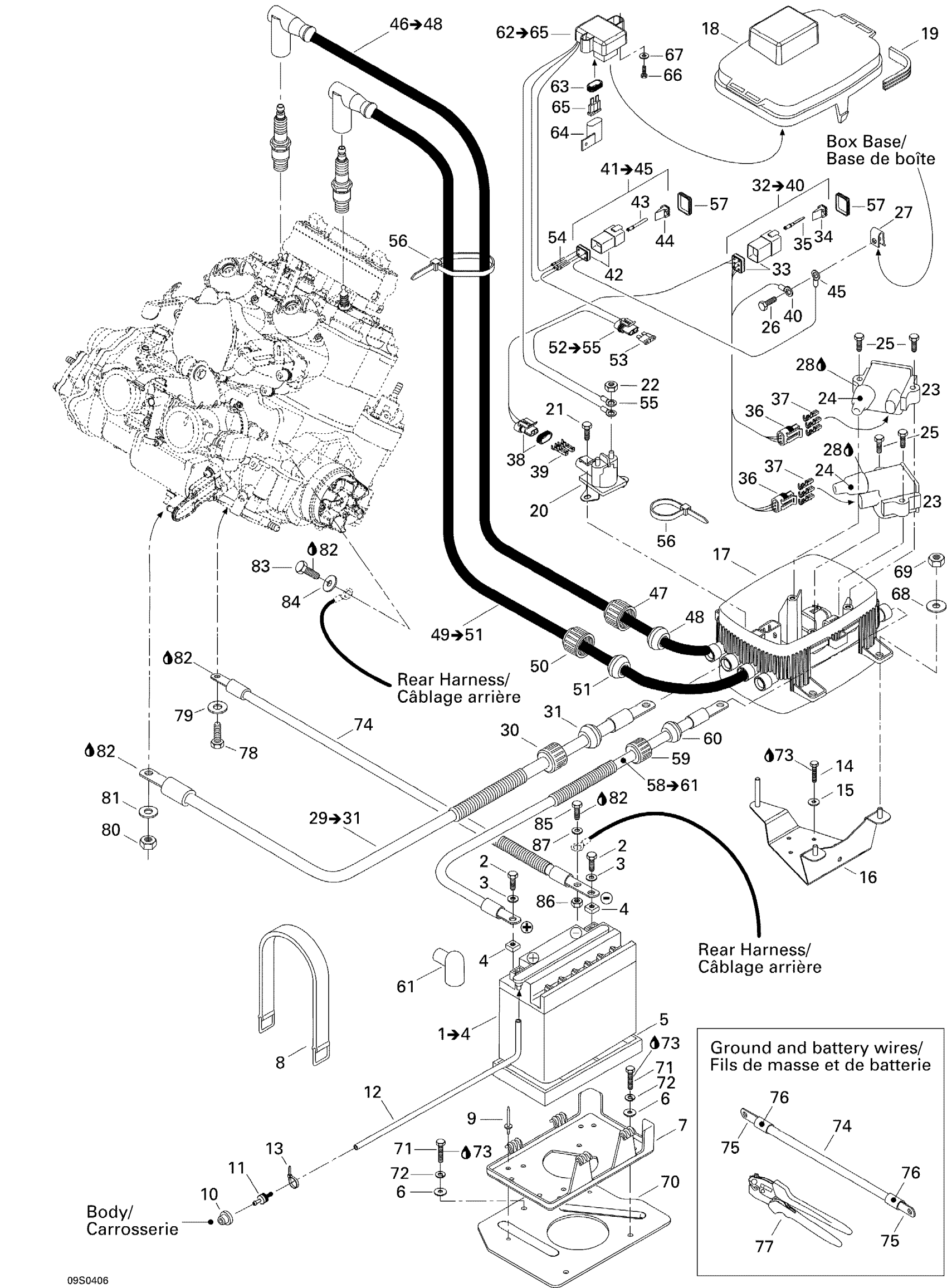

Sea-doo XP DI, 2004 Electrical System Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$144.75

2

Hex. Screw M6 X 16

207161644

$0.61

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Lower Battery Pad

278001746

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.64

7

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

8

Retainer Strap

293850097

$9.26

9

Avdel Rivet 3/16"

293150037

$0.47

10

Grommet

293720029

$1.13

11

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

12

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$0.83

14

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

15

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

16

Electric Box Support

278001897

Unavailable

17

Electric Box Base

278001761

Unavailable

18

Box Cover

278001785

Unavailable

19

GASKET - Call your local BRP dealership

278001173

Unavailable

20

Starter Relay

278003012

$35.07

21

Hex. Flange Screw M6 X 10

210261040

$1.25

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

24

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

25

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

26

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

27

U Type Nut M6

250100029

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

29

Starter Positive Cable, Red | Includes 29 to 31

278001893

Unavailable

30

Electric Wire Cap

278000100

Unavailable

31

GROMMET - Call your local BRP dealership

278000098

Unavailable

32

Box Harness | Includes 17 to 25

278001458

Unavailable

33

Male Terminal Housing, 6 Circuits

710001539

$15.57

34

Female Lock, 6 Circuits

278000735

$2.93

35

Male Terminal

278000631

$4.00

36

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

38

Male Connector, 2 Circuits

278001113

$12.65

39

Female Terminal

278001114

$2.55

40

Open Barrel Terminal

278001392

$4.00

41

Electric Box Harness | Includes 41 to 45

278001885

Unavailable

42

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

43

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

44

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

Grommet

278000682

Unavailable

49

Coil Cable, 560 mm | Includes 49 to 51

278001521

Unavailable

50

Electric Wire Cap

278000100

Unavailable

51

Grommet

278000682

Unavailable

52

Fuse Harness, 3 Amperes | Includes 52 to 55

278001884

Unavailable

53

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

54

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

55

Ring Terminal

278000300

Unavailable

56

Tie Wrap 142 mm

293750002

$0.88

57

Gasket

293200055`

Unavailable

58

Battery Positive Cable, Red | Includes 58 to 61

278001886

Unavailable

59

Electric Wire Cap

278000100

Unavailable

60

GROMMET - Call your local BRP dealership

278000098

Unavailable

61

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

62

CUT-OFF RELAY - Call your local BRP dealership | Includes 62 to 65

278001784

Unavailable

63

Cushion

278000805

$3.12

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Fuse, 30 Amperes

410917200

$3.12

66

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

67

Flat Washer M5, Stainless

234051600

$0.64

68

Flat Washer M6, Stainless

234062600

$0.64

69

Hex. Elastic Stop Nut M6

232561600

$0.92

70

Support Plate

292001008

Unavailable

71

Hex. Screw 10-14 X 7/8”

211000023

$2.91

72

Helical Lock Washer M5

234151601

$0.91

73

Loctite 271, 10 ml

293800005

$20.77

74

Ground Cable, Black

278001877

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Not Available As Spare Part - Friction Washer

Unavailable

78

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

79

Flat Washer 10 mm, Stainless

234001600

$0.91

80

Hex. Elastic Stop Nut M6

232561600

$0.92

81

Stainless Flat Washer M6

234061600

$0.25

82

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

83

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

84

Stainless Flat Washer M6

234061600

$0.25

85

Hex. Cap Screw M6 X 12

207161260

$1.21

86

Hex. Elastic Stop Nut M6

232561600

$0.92

87

Stainless Flat Washer M6

234061600

$0.25
