Electrical Accessories

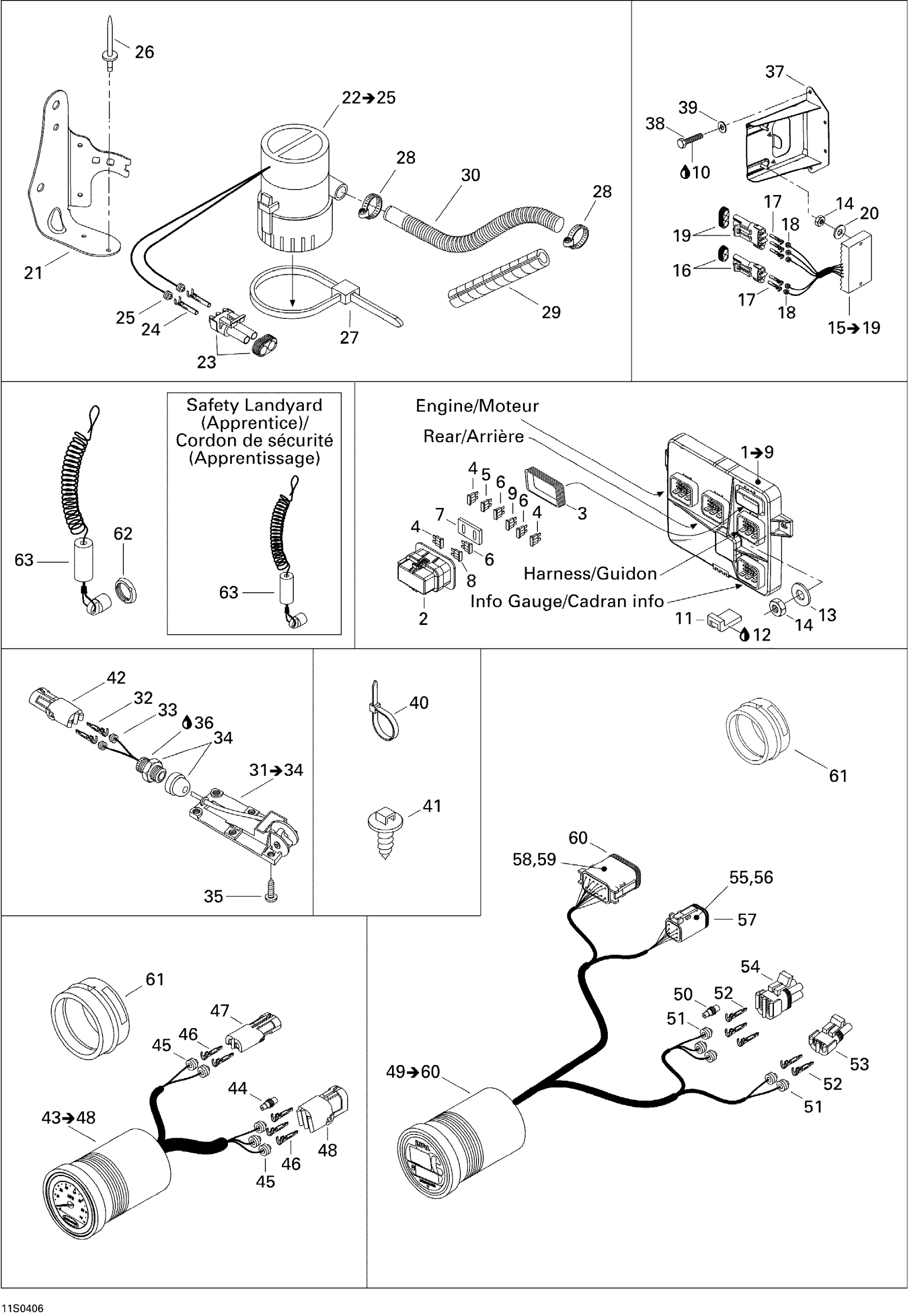

Sea-doo XP DI, 2004 Electrical Accessories Diagram
#
1
ELECTRONIC MODULE - Call your local BRP dealership | Includes 1 to 9
278001895
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
Unavailable
5
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
6
Fuse, 25 Amperes
278001443
Unavailable
7
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
8
Fuse, 30 Amperes
410917200
Unavailable
9
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
10
Loctite 271, 10 ml
293800005
Unavailable
11
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
12
Glue Tube, Loctite 454, 20 G
413708300
Unavailable
13
Flat Washer M6, Stainless
234062600
Unavailable
14
Hex. Elastic Stop Nut M6
232561600
Unavailable
15
Rectifier Ass’Y | Includes 30 - 34.
278001554
Unavailable
16
Male Connector, 2 Circuits
278000220
Unavailable
17
Female Terminal
409007300
Unavailable
18
Wire Seal
278000218
Unavailable
19
Male Housing, 3 Circuits
278000273
Unavailable
20
Stainless Flat Washer M6
234061600
Unavailable
21
BILGE SUPPORT - Call your local BRP dealership
271000897
Unavailable
22
BILGE PUMP - Call your local BRP dealership | Includes 22 to 25
278001176
Unavailable
23
Male Connector, 2 Circuits
278000220
Unavailable
24
Female Terminal
278000223
Unavailable
25
Wire Seal
278000218
Unavailable
26
Pop-Rivet 5/32
293150059
Unavailable
27
Tie Wrap 368 mm
293750008
Unavailable
28
Tridon Gear Clamp
293650172
Unavailable
29
Tubing 25 MM 1000MM Long
219704402
Unavailable
30
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
31
Speed Sensor | GTI LE / Includes 13 to 14
278001668
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
35
Phillips Screw M5 x 12
250000319
Unavailable
36
Was 293800013 Loctite 56765
219704454
Unavailable
37
Support
278001888
Unavailable
38
Hex. Plastite Screw M4, 8 X 20
243042060
Unavailable
39
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
40
Tie Wrap 142 mm
293750002
Unavailable
40
Tie-Rap 180 mm
414115200
Unavailable
40
Tie Wrap 368 mm
293750008
Unavailable
41
Mount Dart
293730040
Unavailable
42
Female Housing, 2 Circuits
278000217
Unavailable
43
SPEEDOMETER - Call your local BRP dealership | Includes 34 to 39 / LE
278001822
Unavailable
44
Wire Seal
278000216
Unavailable
45
Wire Seal
278001065
Unavailable
46
Male Terminal | XT Models
278000222
Unavailable
47
Female Housing, 2 Circuits
278000217
Unavailable
48
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
49
LCD Gauge | Includes 49 to 60
278001883
Unavailable
50
Wire Seal
278000216
Unavailable
51
Wire Seal
278001065
Unavailable
52
Female Terminal
278000223
Unavailable
53
Male Connector, 2 Circuits
278000220
Unavailable
54
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
55
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
56
Female Terminal
278001665
Unavailable
57
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
58
Female Lock, 12 Circuits
409015700
Unavailable
59
Female Terminal
278001665
Unavailable
60
Female Terminal Housing, 12 Circuits
278002377
Unavailable
61
Gauge Support
293720047
Unavailable
62
Safety Nut (DESS Switch)
278002963
Unavailable
63
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
Unavailable
63
Safety Lanyard, Learning Key
278002203
Unavailable
