1986 Yamaha Maxim X CA (XJ700XSC) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

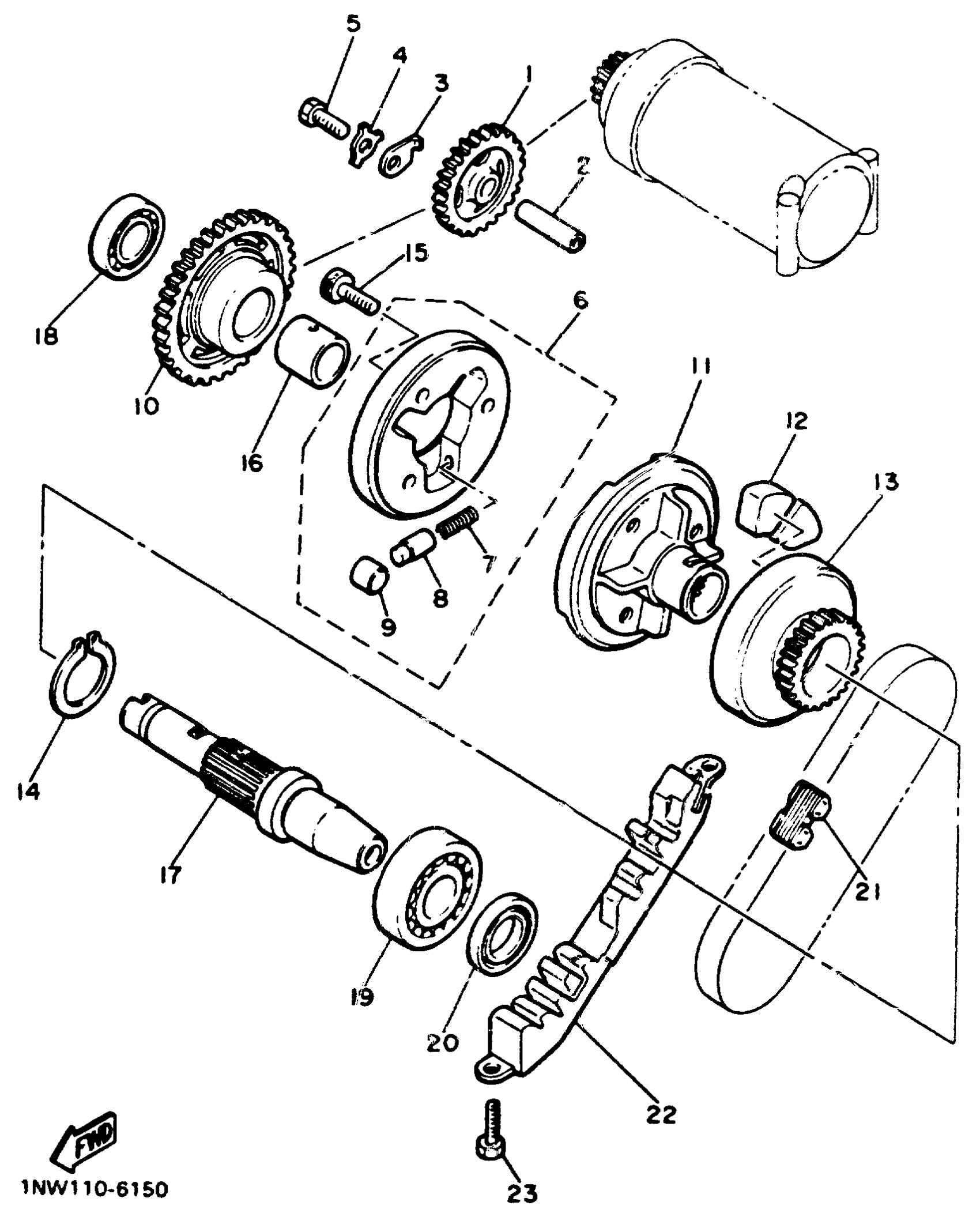

1986 Yamaha Maxim X CA (XJ700XSC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, IDLER 1

4H7-15512-00-00

—

$30.38

In stock

2

SHAFT 1

3TJ-15521-00-00

—
Out of stock

3

PLATE, STOPPER

2H7-15531-00-00

—

$1.95

In stock

4

WASHER, LOCK (371)

90215-06040-00

1

$2.45

In stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

STARTER CLUTCH OUTER ASSY

31A-15580-00-00

—

$253.83

In stock

7

SPRING, COMPRESSION (2H7)

90501-04503-00

1

$6.92

In stock

8

CAP, STARTER CLUTCH

1J7-15583-01-00

1

$16.60

In stock

9

PIN,DOWEL(341)

93615-12088-00

1

$5.63

In stock

10

GEAR, IDLER 2

4H7-15517-00-00

1
Out of stock

11

WHEEL, STARTER

4H7-15524-00-00

1
Out of stock

12

ABSORBER 1

4H7-16155-01-00

1
Out of stock

13

SPROCKET, STARTER 2

4H7-15519-00-00

1
Out of stock

14

CIRCLIP

93410-32075-00

1

$6.97

In stock

15

BOLT, SOCKET

91317-08014-00

1

$5.10

In stock

16

COLLAR

90387-202A7-00

1
Out of stock

17

SHAFT 2

(1AA-15522-00-00)

1
Out of stock

18

BEARING (5Y1)

93306-00426-00

—

$35.60

In stock

19

BEARING (3Y1)

93306-20541-00

—

$33.15

In stock

20

OIL SEAL (4H7)

93102-25218-00

—

$9.78

In stock

21

CHAIN, PRIMARY

4SV-11456-00-00

1
Out of stock

22

GUIDE, UPPER

4H7-11474-01-00

—

$29.29

In stock

23

BOLT(8CP)

97017-06014-00

—

$5.12

In stock
