1986 Yamaha Maxim X CA (XJ700XSC) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

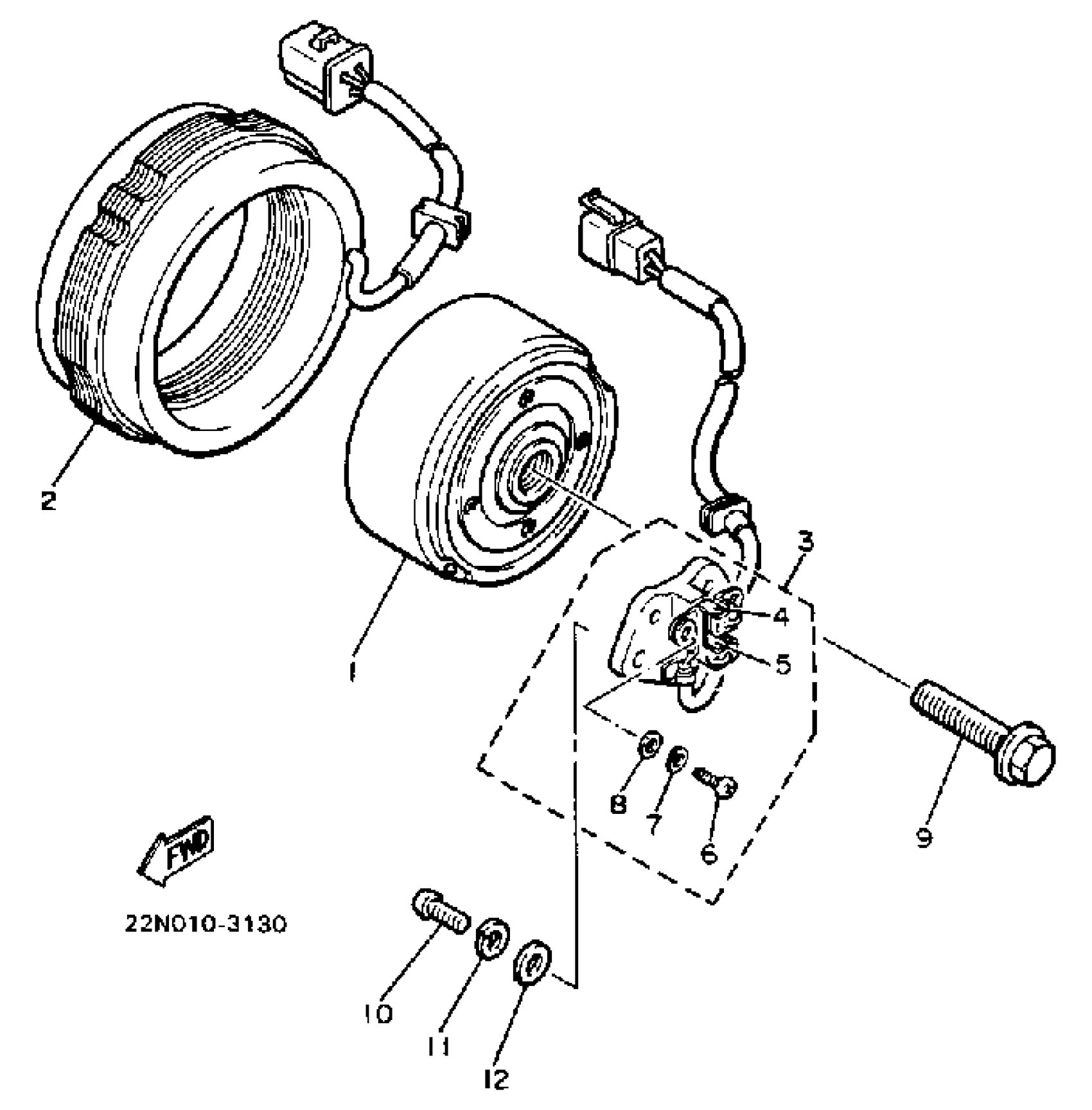

1986 Yamaha Maxim X CA (XJ700XSC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

22N-81650-10-00

1
Out of stock

2

STATOR ASSEMBLY

22N-81610-10-00

1
Out of stock

3

BRUSH HOLDER ASSEMBLY

(22N-81619-10-00)

1
Out of stock

4

.. BRUSH 1

46X-81611-10-00

1
Out of stock

5

.. BRUSH 2

4G0-81612-10-00

1
Out of stock

6

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

BOLT, WASHER BASED (4H7)

90105-10152-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
