1986 Yamaha Maxim X CA (XJ700XSC) Headlight Diagram

← All diagrams

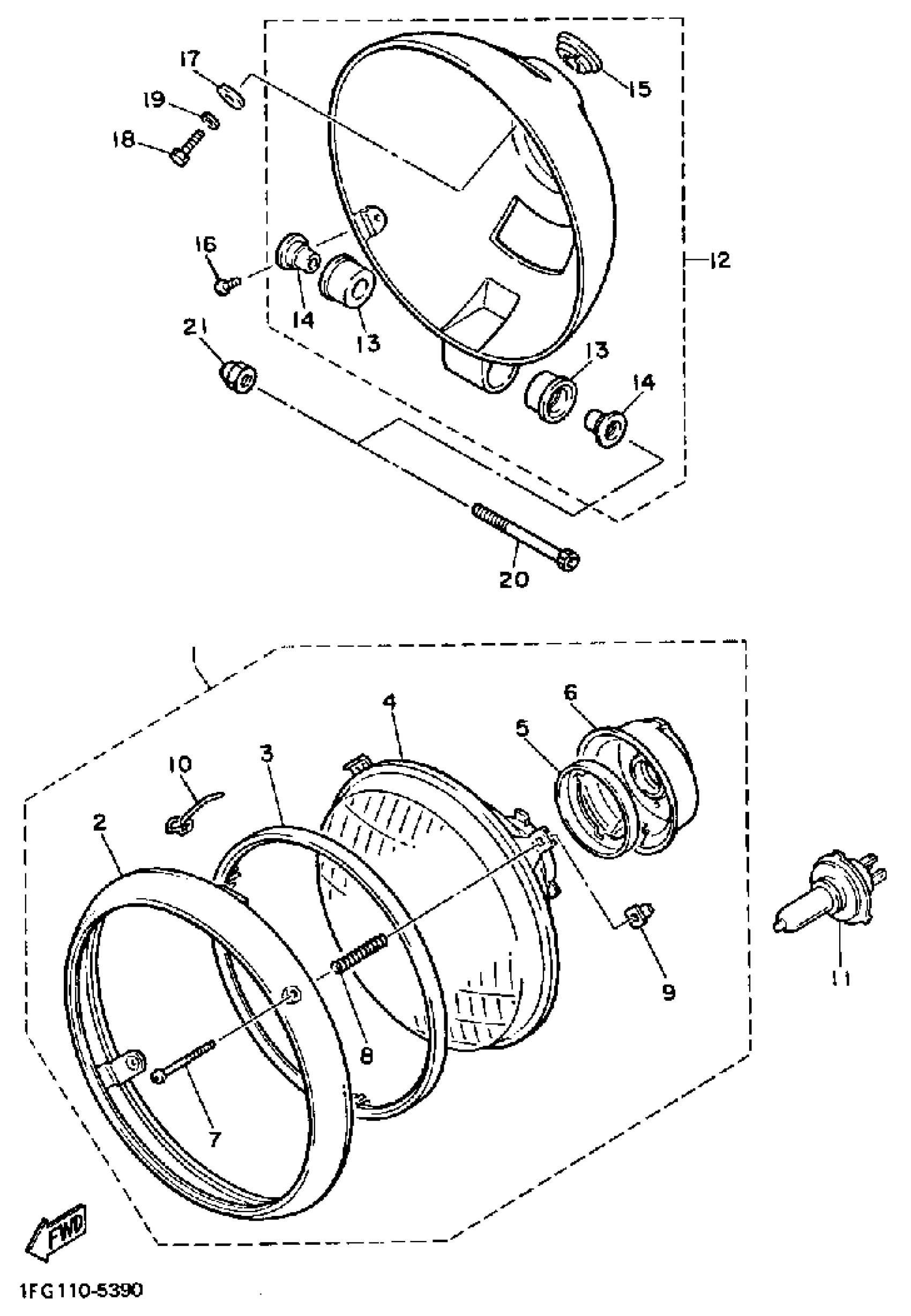

Find the part on the Headlight diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Maxim X CA (XJ700XSC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

42X-84303-A1-00

1
Out of stock

2

RIM, HEADLIGHT

42X-84315-01-00

1

$113.35

In stock

3

RING, RETAINING

5Y3-84395-00-00

—

$47.86

In stock

4

LENS, HEADLIGHT

42X-84321-A0-00

1

$116.37

In stock

5

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

6

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

7

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

11

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

12

BODY ASSY

42X-84330-01-00

1

$207.40

In stock

13

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

14

. COLLAR BODY FITTING

42X-84338-00-00

1
Out of stock

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

16

SCREW, PAN HEAD(1AA)

90157-05084-00

—

$3.49

In stock

17

WASHER, PLATE

90201-06086-00

—
Out of stock

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

BOLT, FLANGE (3JPE)

95024-08045-00

—

$6.80

In stock

21

NUT, CROWN

95303-08800-00

—

$7.52

In stock
