1987 Kawasaki X2 Muffler Diagram

← All diagrams

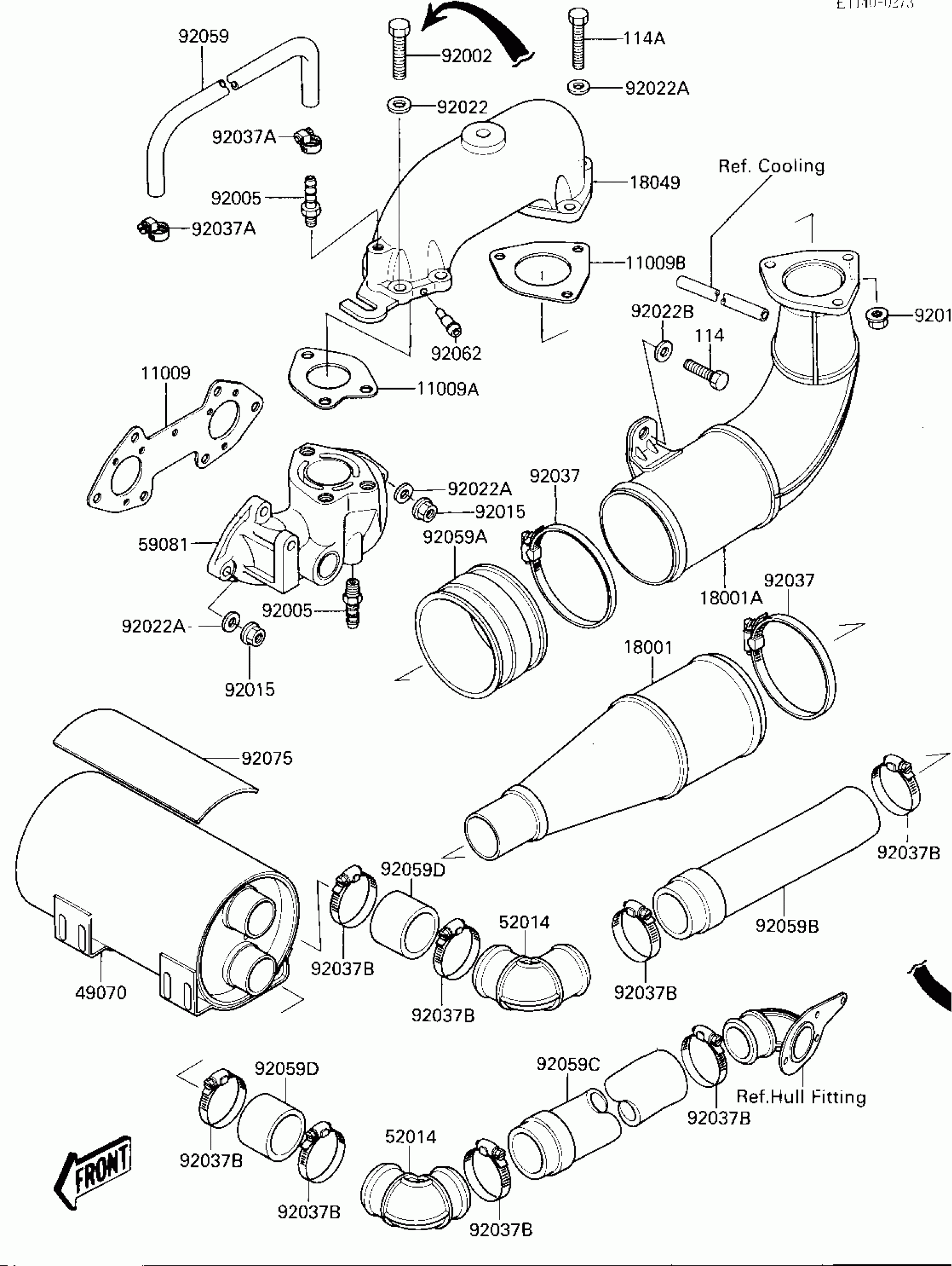

Find the part on the Muffler diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki X2 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST MANIFOLD

11009-3722

1
Out of stock

11009A

GASKET,EXHAUST PIPE

11060-3725

1

$25.12

In stock

11009B

GASKET,MUFFLER

11009-3724

1
Out of stock

18001

MUFFLER,BODY

18001-3716

1

$160.70

In stock

18001A

MUFFLER,TUNED

18001-3718

1

$319.28

In stock

18049

PIPE-EXHAUST

18049-3710

1

$220.99

In stock

49070

1

$121.99

In stock

52014

ELBOW

52014-3702

1
Out of stock

59081

MANIFOLD-EXHAUST

59081-3705

1
Out of stock

92002

BOLT

92002-3746

1
Out of stock

92005

FITTING,HOSE

92005-3001

1
Out of stock

92015

NUT,FLANGED,8MM

92015-3709

1

$4.01

In stock

92022

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92022A

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

92022B

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92037

CLAMP,MAX120.7MM

92037-3733

1
Out of stock

92037A

CLAMP

92037-504

1

$10.76

In stock

92037B

CLAMP

92037-509

1

$4.88

In stock

92059

TUBE,9X190

92059-3021

1
Out of stock

92059A

TUBE,MUFFLER CONNECTING

92059-3767

1
Out of stock

92059B

TUBE

92059-3805

1

$64.97

In stock

92059C

TUBE

92059-3806

1
Out of stock

92059D

TUBE

92059-3807

1
Out of stock

92062

NOZZLE

92062-3705

1

$7.01

In stock

92075

DAMPER,MUFFLER

92075-522

1
Out of stock

114

BOLT-SMALL

114R0825

1
Out of stock

114A

BOLT-SMALL,8X35

114R0835

1
Out of stock
