1987 Kawasaki X2 Cooling Diagram

← All diagrams

Find the part on the Cooling diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

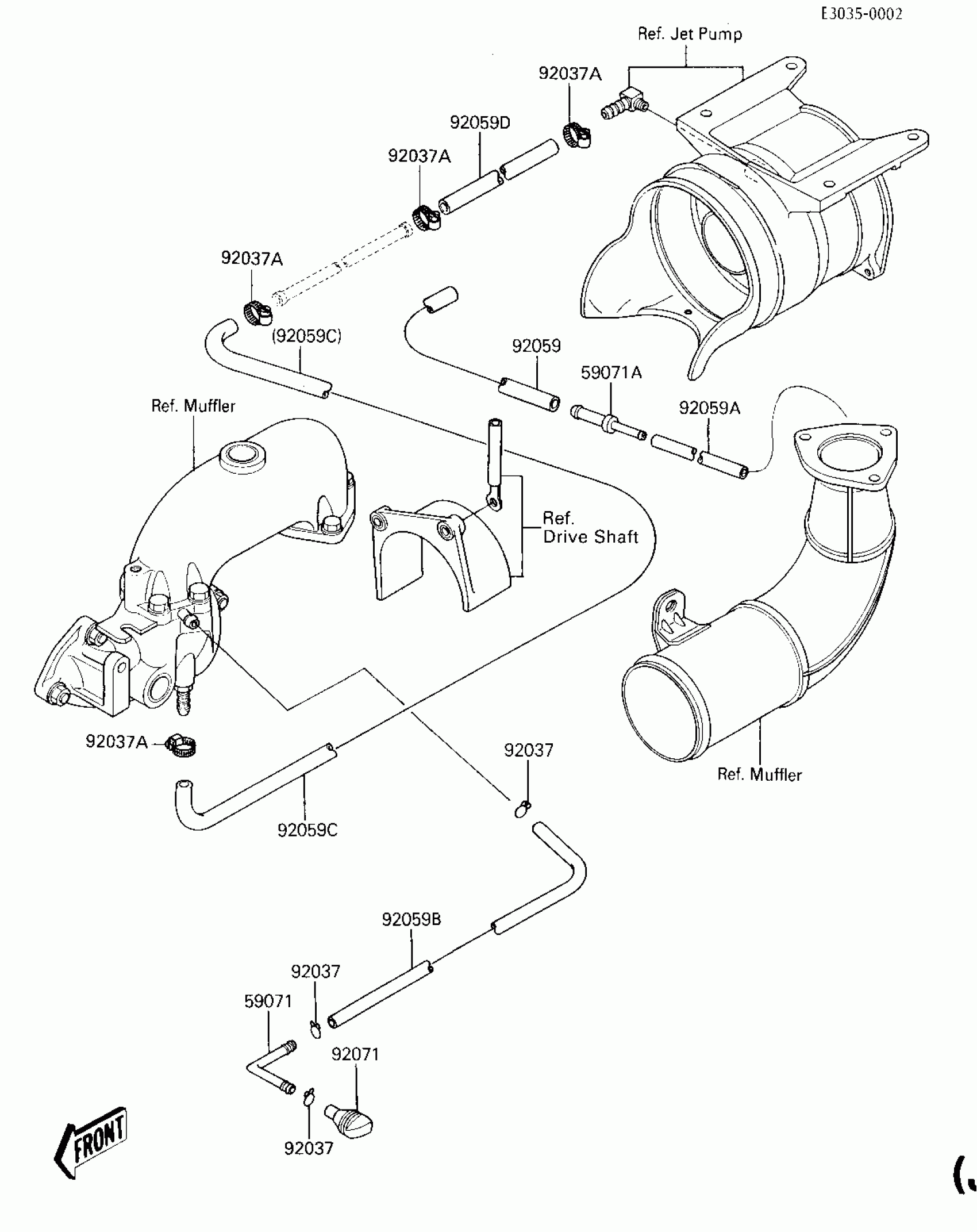

1987 Kawasaki X2 Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

59071

JOINT

59071-3706

1

$9.41

In stock

59071A

JOINT

59071-3715

1

$13.73

In stock

92037

CLAMP

92037-1173

1

$2.92

In stock

92037A

CLAMP

92037-504

1

$10.76

In stock

92059

TUBE,9X16X80

92059-3039

1
Out of stock

92059A

TUBE,5.8X500

92059-3756

1
Out of stock

92059B

TUBE,5.8X10.8X650

92059-3759

1
Out of stock

92059C

TUBE,HULL TO ENGINE,9X16X680

92059-3761

1
Out of stock

92059D

TUBE,9X360

92059-503

1
Out of stock

92071

GROMMET

92071-3736

1
Out of stock
Cooling →
