1987 Kawasaki X2 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

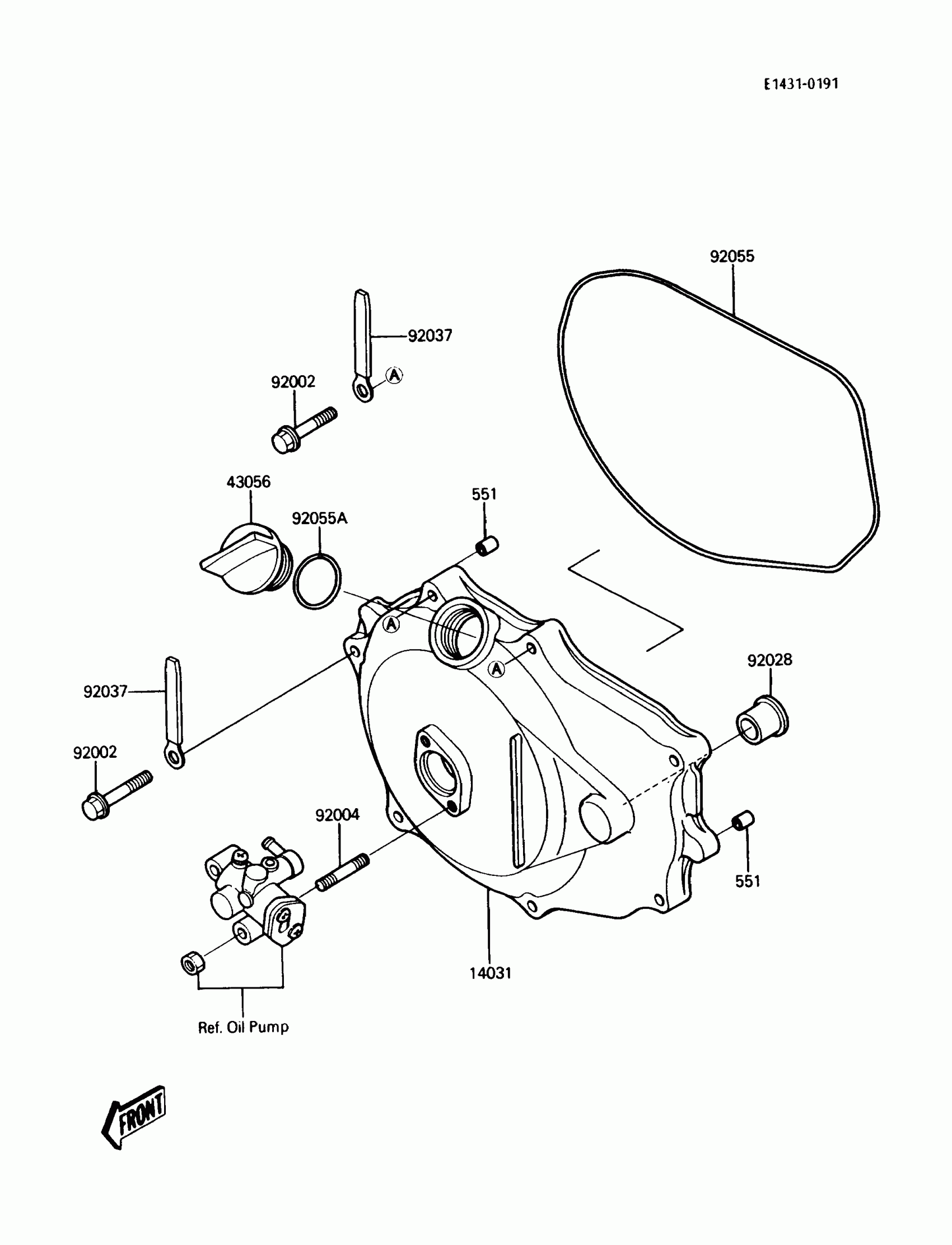

1987 Kawasaki X2 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14031

COVER-GENERATOR

14031-3707

1
Out of stock

43056

BREATHER

14069-3709

1
Out of stock

92002

BOLT,6X30

92002-3726

1
Out of stock

92004

STUD

92004-3710

1
Out of stock

92028

BUSHING

92028-3718

1

$7.48

In stock

92037

CLAMP,L=100

92037-3736

1

$4.85

In stock

92055

1

$27.78

In stock

92055A

RING-O

92055-515

1

$2.29

In stock

92059

TUBE,VINYL,5X73

92059-3017

1
Out of stock

551

PIN-DOWEL

551R0812

1

$6.30

In stock
