1987 Kawasaki X2 Engine Hood Diagram

← All diagrams

Find the part on the Engine Hood diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

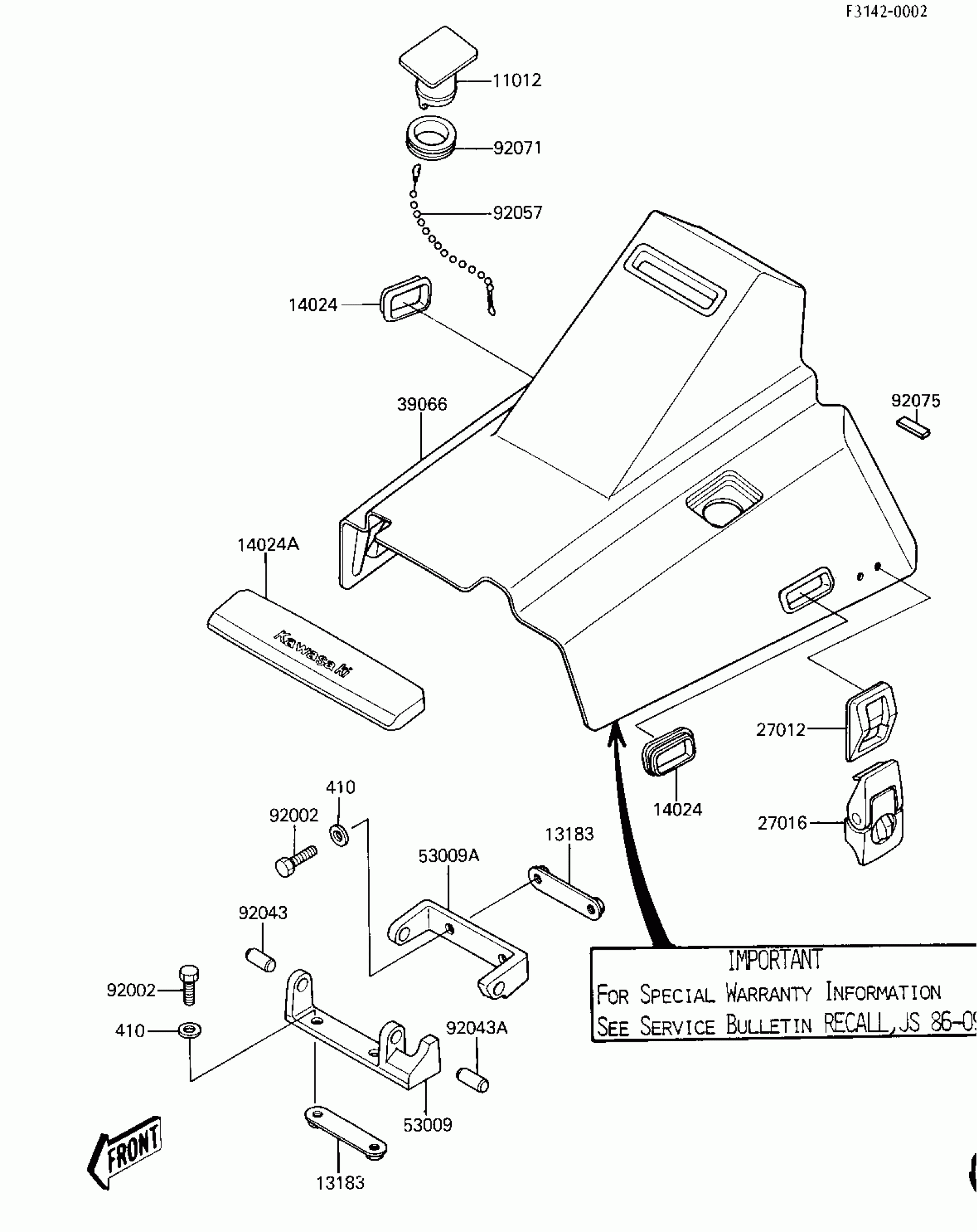

1987 Kawasaki X2 Engine Hood Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE HOOD,JET WHITE

11012-3711-8C

1
Out of stock

13183

PLATE

13183-3706

1
Out of stock

14024

COVER,ENGINE HOOD,JET WHITE

14024-3714-8U

1
Out of stock

14024A

COVER,ENGINE HOOD,FR

14024-3740

1
Out of stock

27012

HOOK

27012-3708

1

$34.80

In stock

27016

LOCK-ASSY,ENGINE HOOD

27016-3706

1
Out of stock

39066

HOOD-ASSY-ENGINE,J.WHITE

39066-3705-8C

1

$467.95

In stock

53009

HINGE,DECK

53009-3703

1
Out of stock

53009A

HINGE,ENGINE HOOD

53009-3704

1
Out of stock

92002

BOLT,8X20

92002-3718

1
Out of stock

92043

PIN,10X23

92043-3710

1
Out of stock

92043A

PIN,10X25

92043-3711

1
Out of stock

92057

CHAIN,COVER,L=250

92057-3701

1
Out of stock

92071

GROMMET

92071-3731

1
Out of stock

92075

DAMPER

92075-3757

1
Out of stock

410

1

$1.68

In stock
