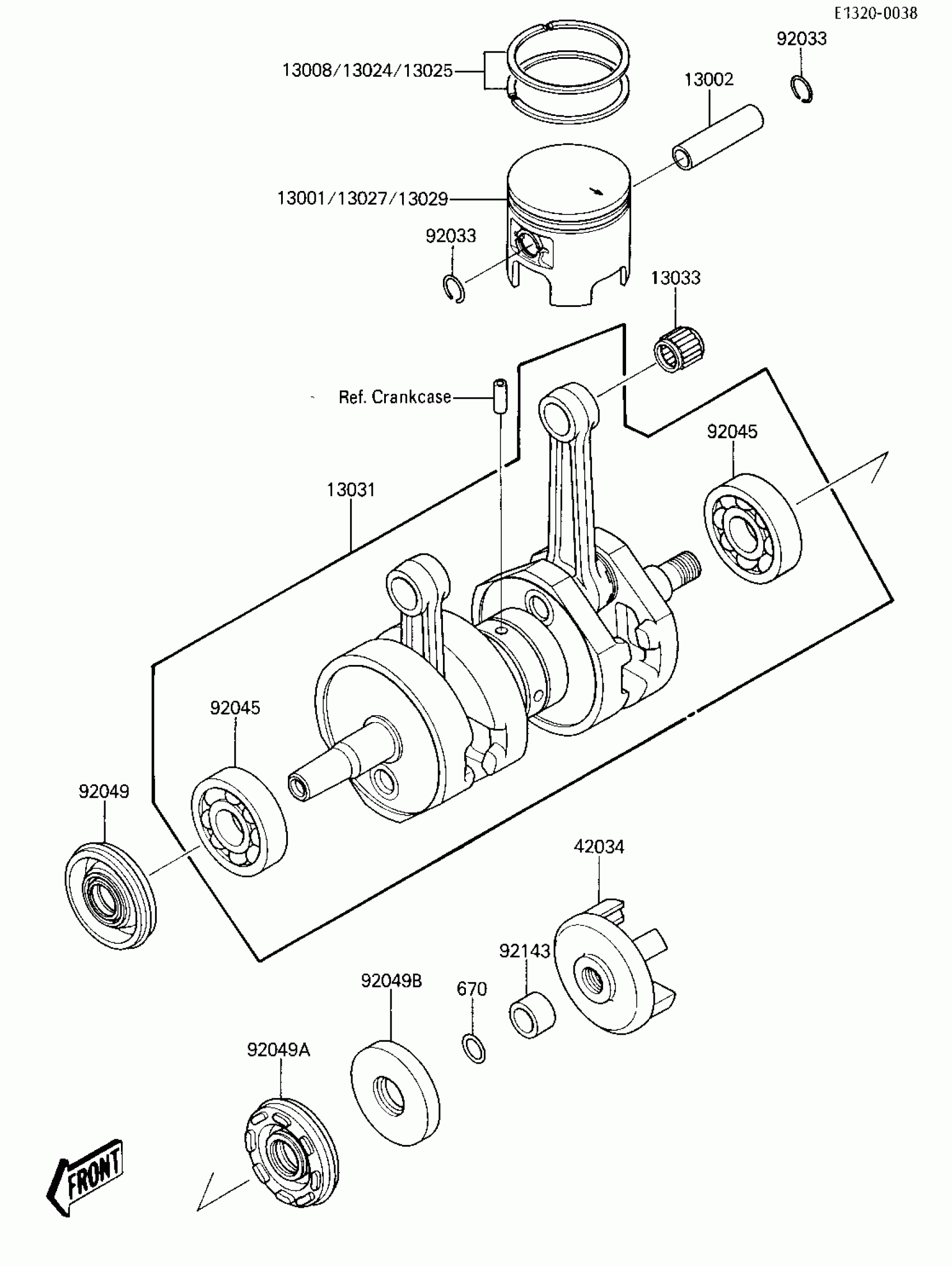

Find the part on the Crankshaft/pistons diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki X2 Crankshaft/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,STD

13001-3705

1
Out of stock

13002

PIN-PISTON

13002-017

1
Out of stock

13008

RING-SET-PISTON,STD

13008-3701

1
Out of stock

13024

RING-SET-PISTON LL,O/S,1.00

13024-3701

1
Out of stock

13025

RING-SET-PISTON L,O/S,0.50

13025-3701

1
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-3703

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-3703

1
Out of stock

13031

CRANKSHAFT-COMP

13031-3719

1
Out of stock

13033

BEARING-SMALL END

13033-1010

1

$23.08

In stock

42034

COUPLING

42034-3705

1

$65.75

In stock

92033

CIRCLIP-PISTON PIN

92036-015

1

$3.93

In stock

92045

1

$55.29

In stock

92049

SEAL-OIL,FPJ5307210

92049-3704

1
Out of stock

92049A

SEAL-OIL,FWJ15307210

92049-3705

1
Out of stock

92049B

SEAL-OIL,S30726

92049-3706

1
Out of stock

92143

COLLAR

92027-3713

1
Out of stock

670

O RING,14MM

670B2014

1

$1.08

In stock
