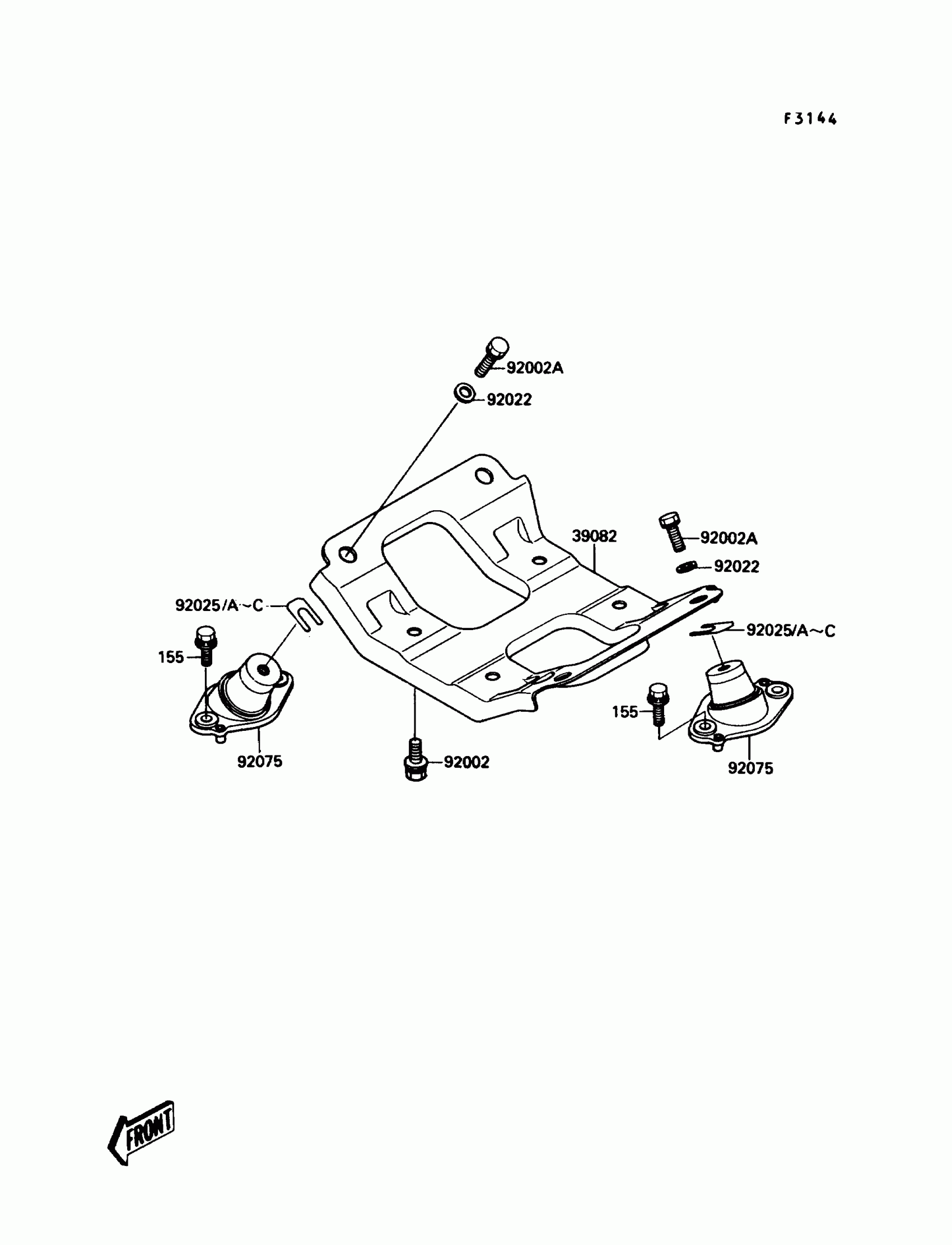

Kawasaki X2 ENGINE MOUNT Diagram

#

Description

Price

39082

MOUNT-ENGINE

39082-3705

Unavailable

92002

BOLT,10X25

92002-3765

Unavailable

92002A

BOLT,10X25

92002-3778

Unavailable

92022

WASHER,32X10.5X4

92022-3023

$6.74

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92075

DAMPER,ENGINE MOUNT

92160-3757

$107.80

155

BOLT-WSP-SMALL,8X20

155R0820

$4.81

410

W-PLAIN-S,10MM

410S1000

Unavailable

461

WASHER-SPRING,10MM

461S1000

$0.84
