1990 Yamaha Wave Runner III (WRA650D) Graphic - Tool Diagram

← All diagrams

Find the part on the Graphic - Tool diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

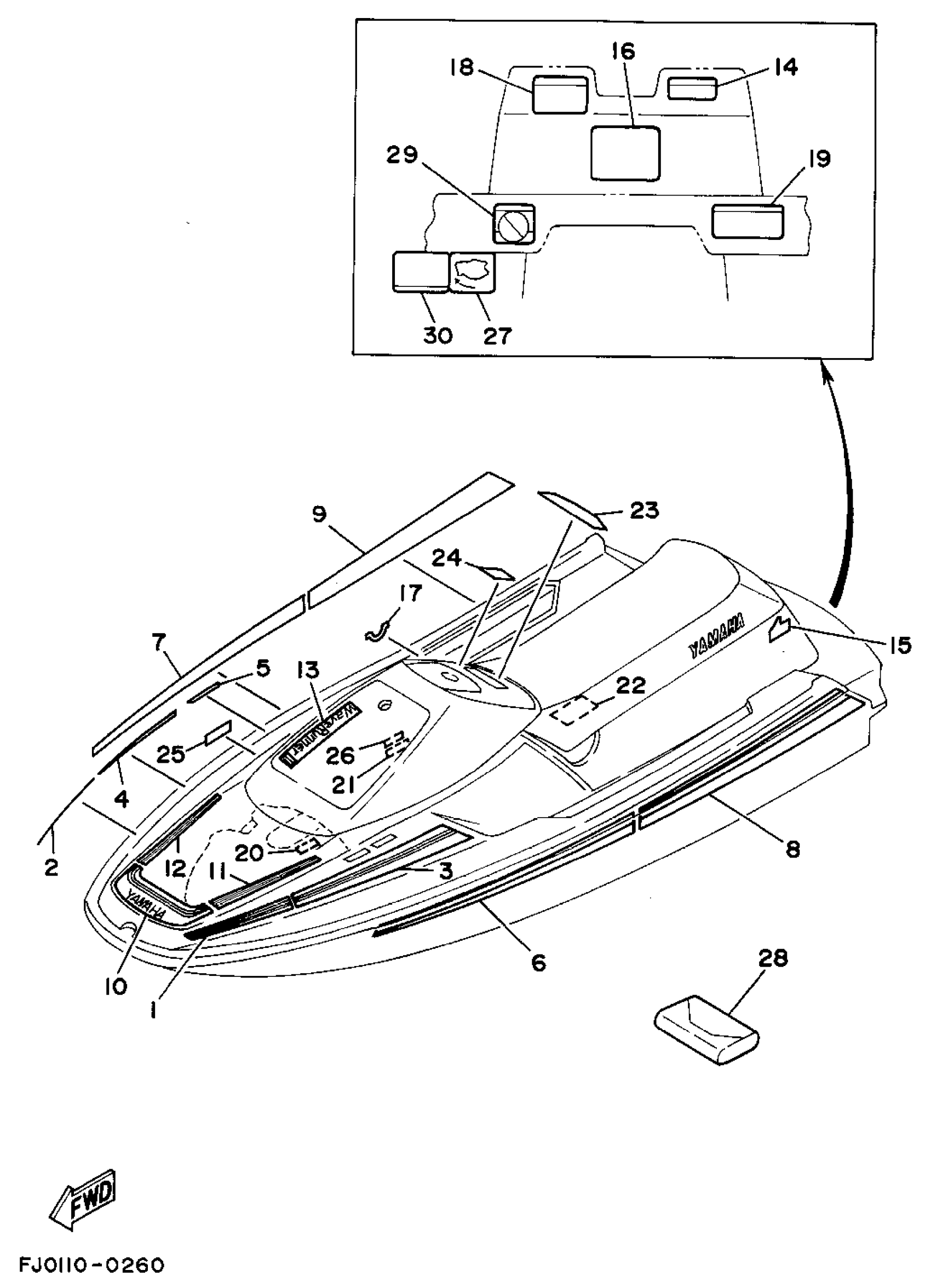

1990 Yamaha Wave Runner III (WRA650D) Graphic - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC A (L.H-F)

FJ0-64173-10-00

1

$70.99

In stock

2

GRAPHIC A (R.H-F)

FJ0-64173-20-00

1
Out of stock

3

GRAPHIC A (L.H-R)

FJ0-64173-30-00

1
Out of stock

4

GRAPHIC A (R.H-C)

FJ0-64173-40-00

1
Out of stock

5

GRAPHIC A (R.H-R)

FJ0-64173-50-00

1
Out of stock

6

GRAPHIC B (L.H-C)

FJ0-64174-30-00

1
Out of stock

7

GRAPHIC B (R.H-C)

FJ0-64174-40-00

1
Out of stock

8

GRAPHIC B (L.H-R)

FJ0-64174-50-00

1

$75.99

In stock

9

GRAPHIC B (R.H-R)

FJ0-64174-60-00

1
Out of stock

10

GRAPHIC D

FJ0-64194-00-00

1

$70.99

In stock

11

GRAPHIC D (L.H)

FJ0-64194-10-00

1
Out of stock

12

GRAPHIC D (R.H)

FJ0-64194-20-00

1
Out of stock

13

EMBLEM A

FJ0-64121-00-00

1
Out of stock

14

LABEL, CAUTION 2

FJ0-64183-30-00

1
Out of stock

15

LABEL, CAUTION 4

FJ0-64183-50-00

1
Out of stock

16

LABEL,CAUTION

GJ3-U411A-00-00

1
Out of stock

17

LABEL, CAUTION 6

FJ0-64183-70-00

1

$6.92

In stock

18

LABEL,CAUTION

GJ3-U411A-00-00

1
Out of stock

19

LABEL, CAUTION 8

FJ0-64183-90-00

1
Out of stock

20

LABEL, CAUTION

FJ0-64183-A1-00

1
Out of stock

21

LABEL,CAUTION 10

GA9-U418C-41-00

1
Out of stock

22

LABEL, CAUTION (BATTERY)

EU0-U418B-00-00

1
Out of stock

23

LABEL,WARNING

LIT-18069-30-00

1
Out of stock

24

LABEL, WARNING

FJ0-64161-30-00

1
Out of stock

25

LABEL, WARNING

GA9-U416B-00-00

1
Out of stock

26

LABEL, WARNING 4

GA9-U416F-00-00

1
Out of stock

27

LABEL, WARNING 5

GH3-U411A-10-00

1
Out of stock

28

TOOL SET

EU0-65986-13-00

1
Out of stock

29

MARK

6R8-13444-00-00

1
Out of stock

30

LABEL, WARNING 5

GH3-U411A-10-00

1
Out of stock
