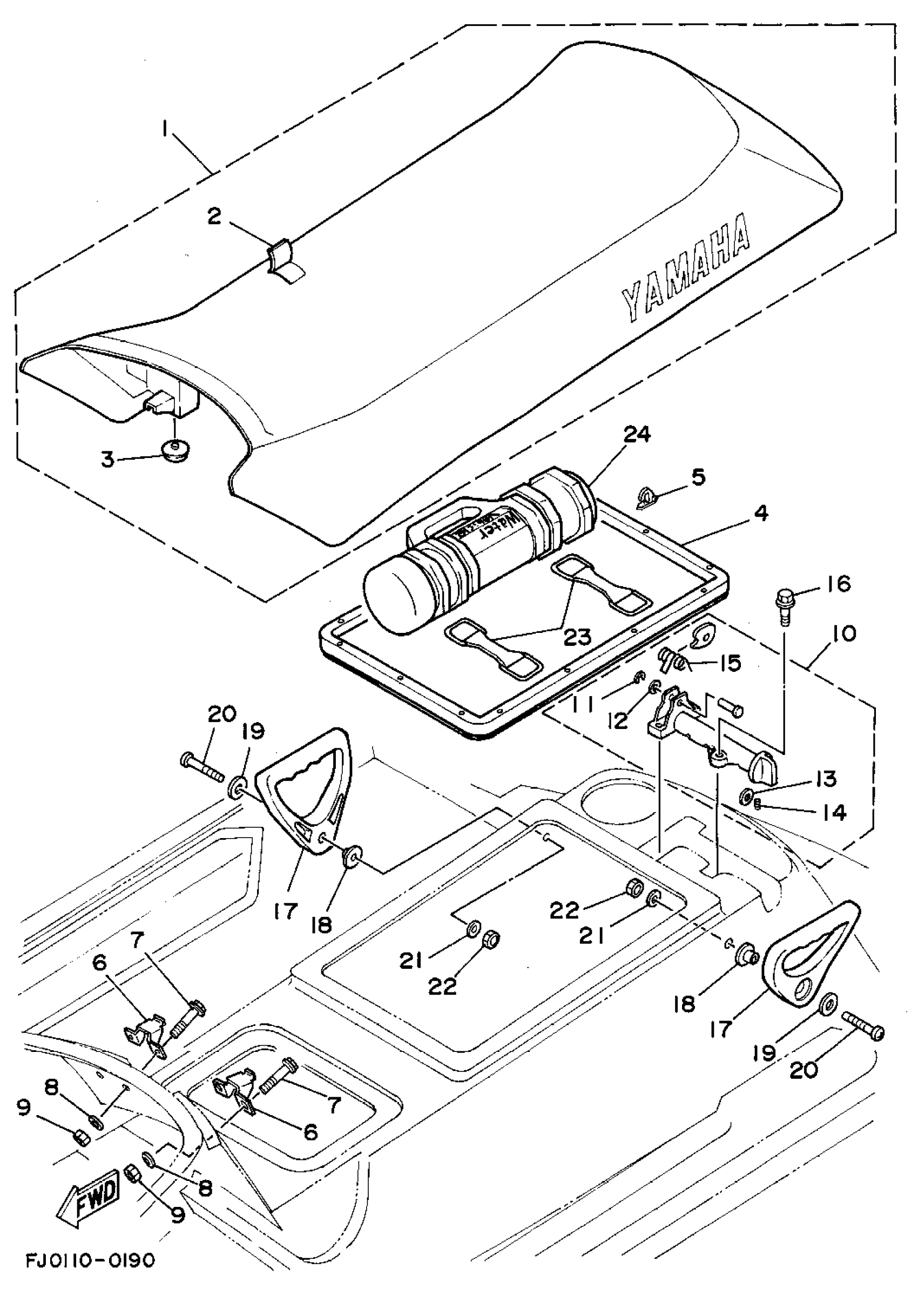

Find the part on the Seat diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANDEM SEAT ASSY

FJ0-63710-04-00

1
Out of stock

2

. COVER, SEAT

FJ0-63711-00-00

1
Out of stock

3

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

4

PACKING 2

FJ0-62664-00-00

1
Out of stock

5

RIVET

90269-06916-00

1
Out of stock

6

STAY, SEAT 1

FJ0-63784-00-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

10

SEAT, LOCK ASSY

FJ0-63850-31-00

1
Out of stock

11

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

12

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

13

. PLATE, STOPPER

FJ0-63851-00-00

1
Out of stock

14

. SPRING, CYLINDER

FJ0-63853-00-00

1
Out of stock

15

. SPRING

FJ0-63852-00-00

1
Out of stock

16

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

17

GRIP, ASSIST

FJ0-63771-00-00

1
Out of stock

18

COLLAR

90387-08905-00

1
Out of stock

19

WASHER (FJ0)

90201-08929-00

—
Out of stock

20

SCREW

90150-08911-00

1
Out of stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

23

BAND

EU0-67569-02-00

1
Out of stock

24

CASE 2 ASSEMBLY

EW2-65920-00-00

1
Out of stock
