1990 Yamaha Wave Runner III (WRA650D) Starting Motor Diagram

← All diagrams

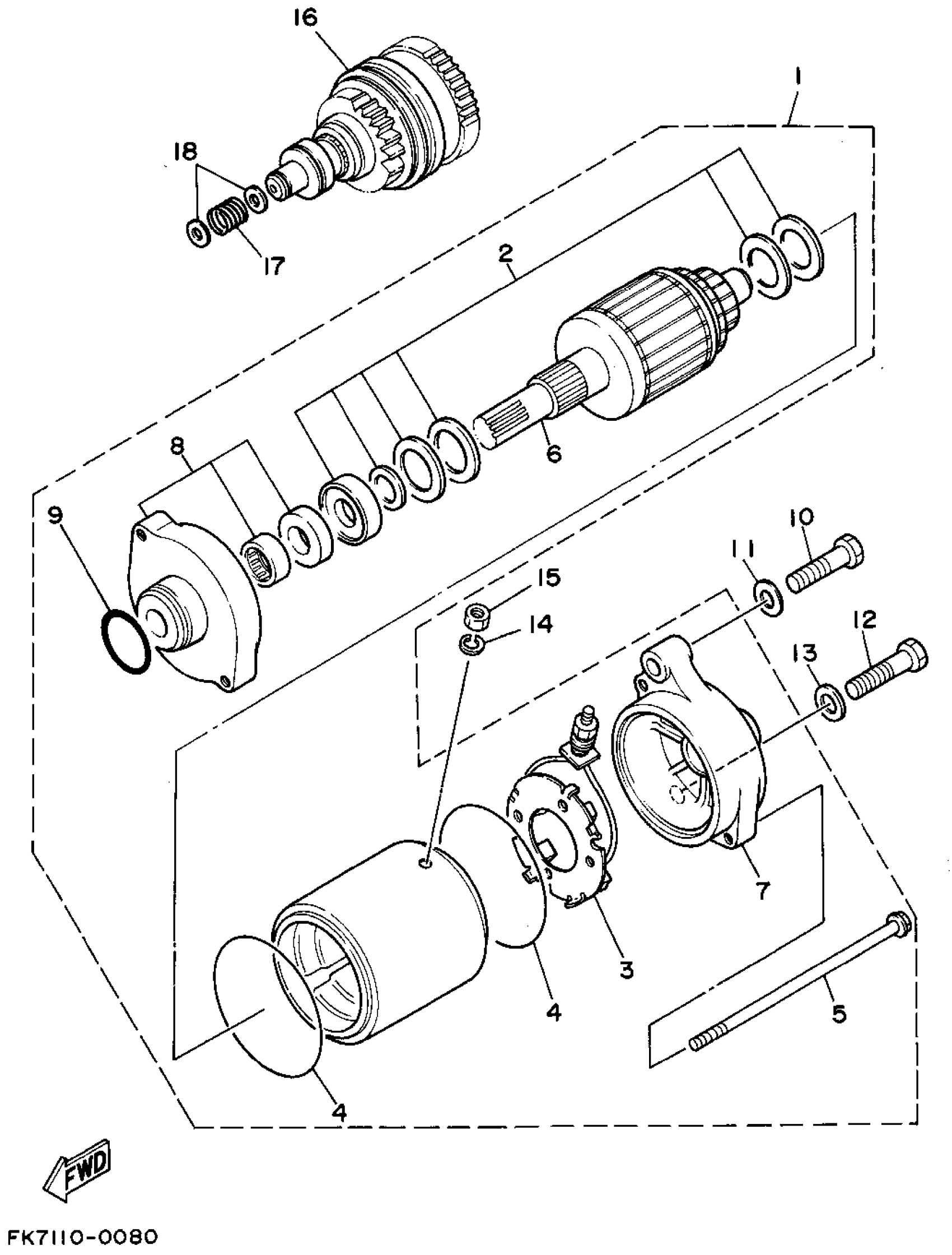

Find the part on the Starting Motor diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSY

6M6-81800-10-00

1

$393.22

In stock

2

WASHER KIT

3AJ-81809-00-00

—

$13.71

In stock

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

1

$123.49

In stock

4

GASKET

35C-81844-00-00

—

$43.01

In stock

5

. BOLT

6M6-81826-00-00

1

$9.10

In stock

6

. ARMATURE ASSY

6M6-81850-00-00

1

$493.99

In stock

7

. REAR BRACKET ASSY

6M6-81820-00-00

1

$172.99

In stock

8

. FRONT BRACKET ASSY

6M6-81830-00-00

1

$137.99

In stock

9

O-RING (437)

93210-24235-00

1

$5.72

In stock

10

BOLT

97014-08040-00

1

$5.26

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

BOLT

97013-08035-00

1

$4.80

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

IDLE GEAR COMP.

6M6-8183E-01-00

1

$390.25

In stock

17

SPRING, COMPRESSION

90501-14M73-00

1

$7.91

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
