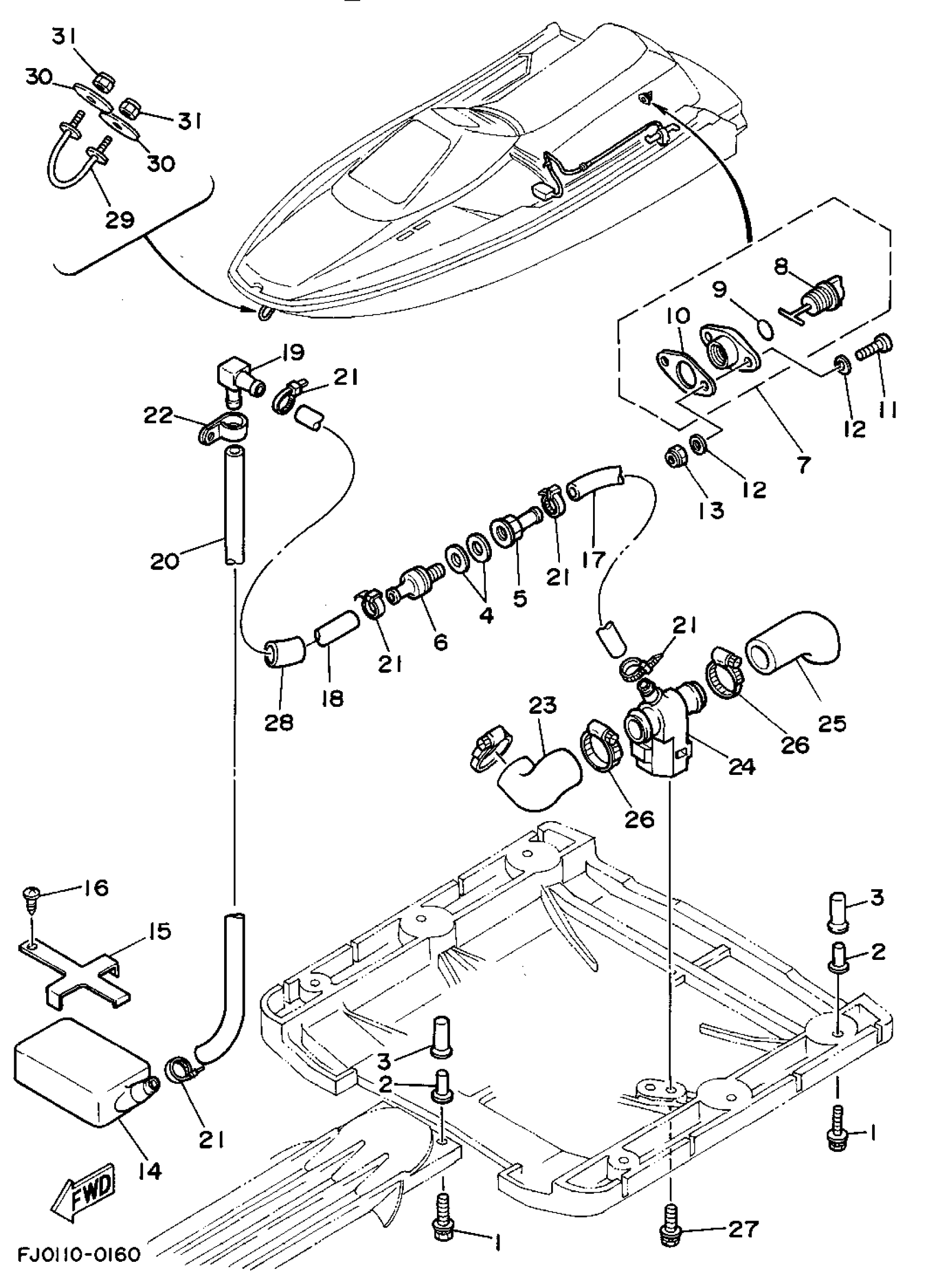

Yamaha WRA650D (WAVE RUNNER III) 1990 HULL - DECK 3 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06896-00

$5.03

2

NUT

90179-06931-00

Unavailable

3

CLING

90190-06014-00

Unavailable

4

GASKET

90430-13909-00

Unavailable

5

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

6

CONNECTION, THRU-HULL 1/4

90604-80760-00

Unavailable

7

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

8

. PLUG, DRAIN

EU0-62282-00-00

$7.40

9

. O-RING

EU0-62283-00-00

$3.70

10

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

11

SCREW, PAN HEAD

98580-05020-00

$1.43

12

. WASHER, PLAIN

92990-05200-00

$4.29

13

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

14

STRAINER, BILGE

F4R-6761D-00-00

$31.80

15

BASE

FJ0-67618-00-00

Unavailable

16

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

17

HOSE

90445-14M11-00

Unavailable

18

HOSE (L1300)

90445-14M22-00

Unavailable

19

JOINT, HOSE

6K8-51162-00-00

$11.35

20

HOSE

90445-14M03-00

Unavailable

21

CLAMP

90465-10098-00

$1.68

22

CLIP, NYLON 17

90600-91728-00

$5.45

23

HOSE, PLASHER

6R8-51161-00-00

Unavailable

24

BODY, VALVE

6K8-7610K-01-00

Unavailable

25

HOSE SUCTION

6K8-51141-00-00

Unavailable

26

HOSE CLAMP ASSY

90450-32097-00

$13.99

27

BOLT, WITH WASHER

90119-06901-00

Unavailable

28

PACKING, HOSE 2

FJ0-67578-00-00

Unavailable

29

BOW EYE 2 (C)

A00-61626-40-00

$43.92

30

WASHER, PLAIN

92990-08200-00

$2.36

31

NUT, NYLON (6J8)

95780-08300-00

$10.55
