1990 Yamaha Wave Runner III (WRA650D) Hull - Deck 1 Diagram

← All diagrams

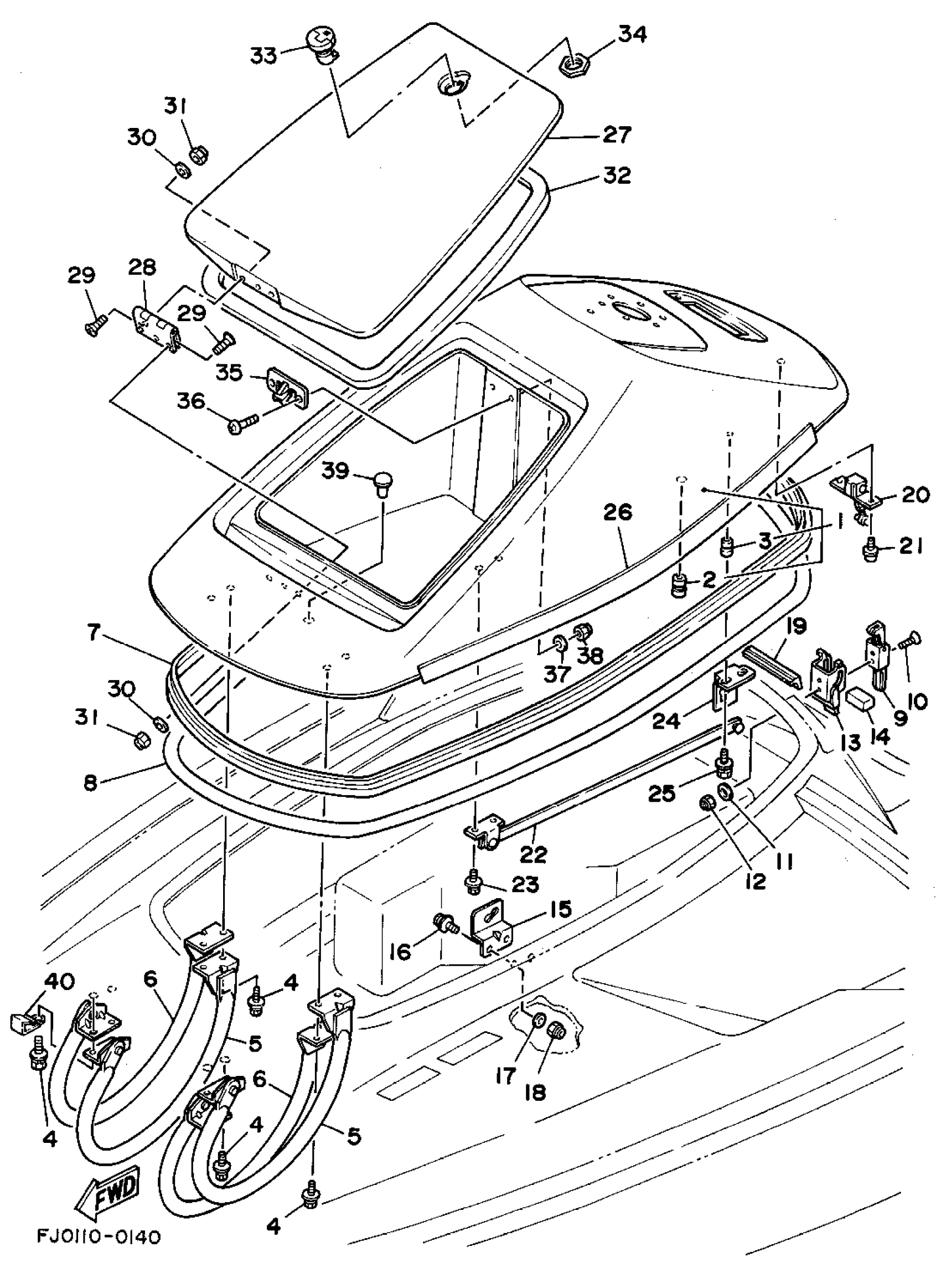

Find the part on the Hull - Deck 1 diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENG.HATCH,BLACK

GA9-U516A-02-P8

1
Out of stock

2

. NUT

90179-08927-00

1
Out of stock

3

NUT

90179-069U4-00

1
Out of stock

4

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

5

HINGE, HATCH (LH)

FJ0-65163-11-00

1
Out of stock

6

HINGE, HATCH (RH)

FJ0-65163-21-00

1
Out of stock

7

PACKING

FJ0-62663-00-00

1
Out of stock

8

TAPE

90654-91300-00

1
Out of stock

9

BRACKET, HATCH LOCK

EU0-62841-01-00

1
Out of stock

10

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

13

STOPPER, HATCH LOCK

FJ0-62849-00-00

1
Out of stock

14

DAMPER, HATCH LOCK

FJ0-62851-00-00

1
Out of stock

15

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

1
Out of stock

16

SCREW, WITH WASHER

90159-06902-00

1
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

19

TRIM

GA9-U5162-00-00

1
Out of stock

20

HOOK, HATCH LOCK

FJ0-62843-00-00

1
Out of stock

21

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

22

SUPPORT, HATCH

FJ0-62891-01-00

1

$121.99

In stock

23

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

24

FIX, SUPPORT

FJ0-62892-00-00

1
Out of stock

25

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

26

TRIM (FJ0-65162-31-00)

GA9-U5162-30-00

1
Out of stock

27

LID, ENGINE HATCH

GA9-U517B-00-P1

1
Out of stock

28

HINGE

FJ0-65173-00-00

1

$45.99

In stock

29

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

30

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

31

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

32

PACKING 3

FJ0-62665-00-00

1
Out of stock

33

LOCK, LID

FJ0-65172-00-00

1

$36.03

In stock

34

NUT, HEXAGON (1E6)

90170-22187-00

—

$9.83

In stock

35

HOOK, LID LOCK

FJ0-65174-00-00

1
Out of stock

36

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

37

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

38

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

39

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

40

CLAMP

90465-08M33-00

1

$9.98

In stock
