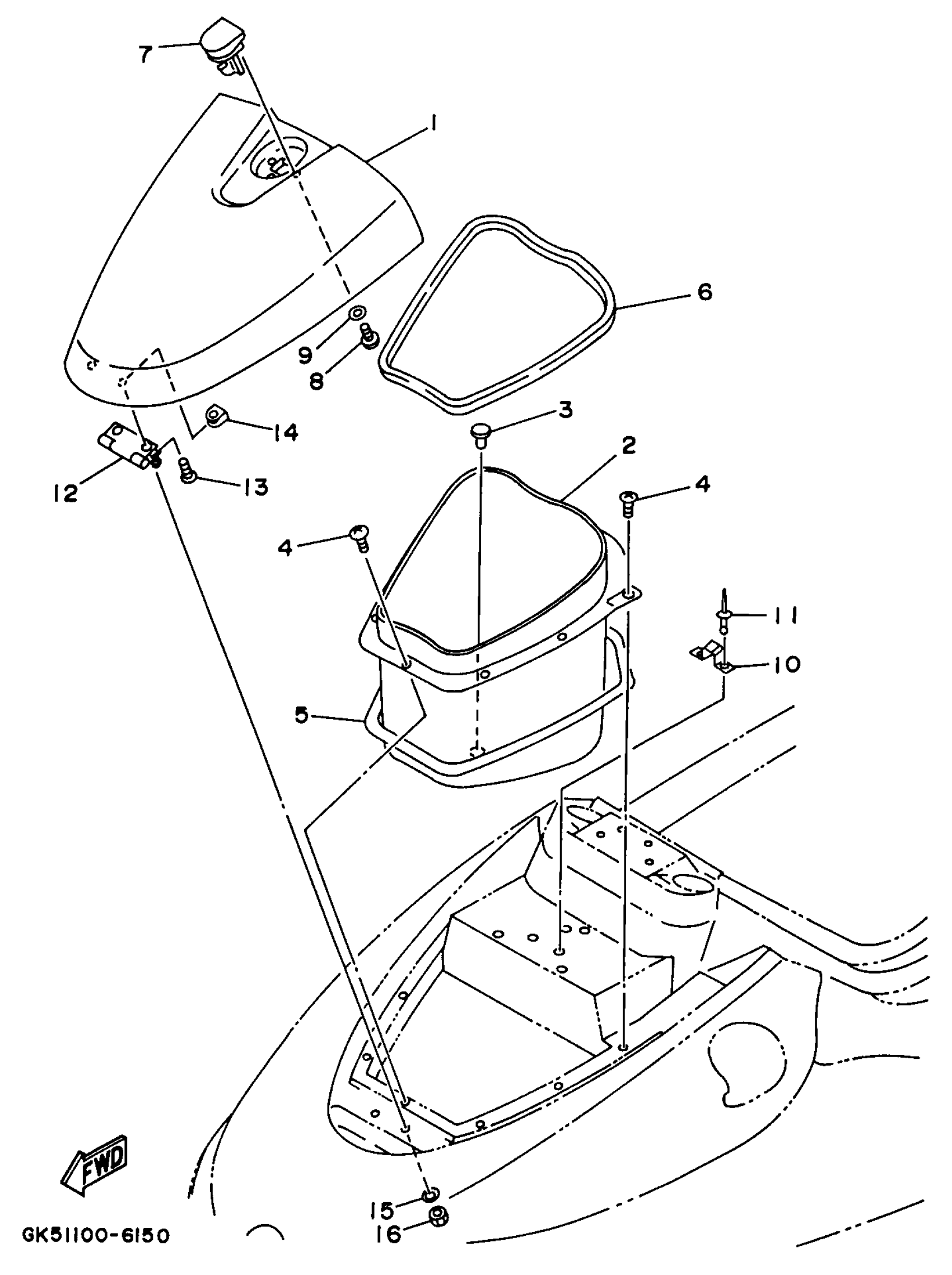

Find the part on the Engine Hatch 2 diagram for your 1996 Yamaha Wave Blaster II (WB760U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Blaster II (WB760U) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, LOCKER BOW

GK5-6476A-00-00

1
Out of stock

2

LOCKER, BOW

GK5-6475B-00-00

1

$163.99

In stock

3

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

4

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

5

PACKING, 5

GK5-6266D-00-00

1
Out of stock

6

PACKING 48

90656-67105-00

1
Out of stock

7

LOCK, LID

GJ3-6517C-01-00

1
Out of stock

8

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

HOOK, LID LOCK

GK5-6517F-00-00

1

$15.49

In stock

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

12

HINGE, LID

GK5-6517D-00-00

1
Out of stock

13

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

14

NUT

FJ0-61432-00-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

NUT, FLANGE

95720-05300-00

1

$1.38

In stock
