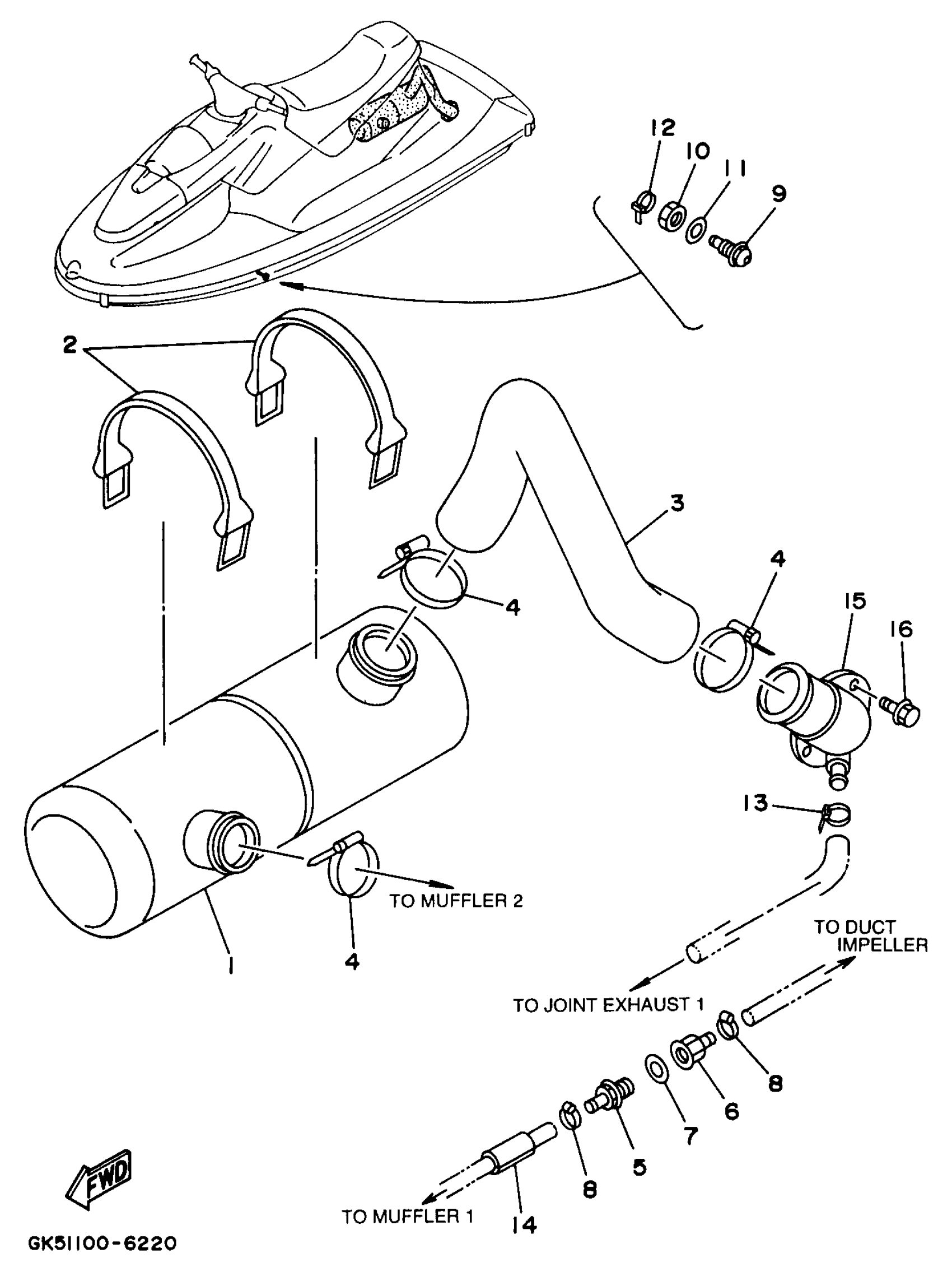

Yamaha WB760U (WAVE BLASTER II) 1996 EXHAUST 2 Diagram

#

Description
Price

1

WATER LOCK COMP.

GK5-67550-01-00

Unavailable

2

BAND

FJ0-67569-00-00

Unavailable

3

HOSE

GK5-67555-00-00

Unavailable

4

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$15.65

5

THROGUH-HULL CONNECTION 3/8

90604-80794-00

Unavailable

6

THROUGH-HULL CONNECTION 3/8"

90604-80793-00

Unavailable

7

GASKET(GJ1)

90430-16910-00

Unavailable

8

HOSE CLAMP ASSY

90450-18M09-00

$9.82

9

PILOT, WATER

GJ1-6753B-02-00

Unavailable

10

. NUT

95380-14700-00

$8.03

11

WASHER, PLAIN

92990-14200-00

$1.60

12

CLAMP

90465-10098-00

$1.68

13

CLAMP

90465-10098-00

$1.68

14

PACKING, HOSE 2

GJ1-67578-10-00

$3.64

15

EXHAUST, THRU-HULL COMP

GK5-67560-00-00

Unavailable

16

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09
