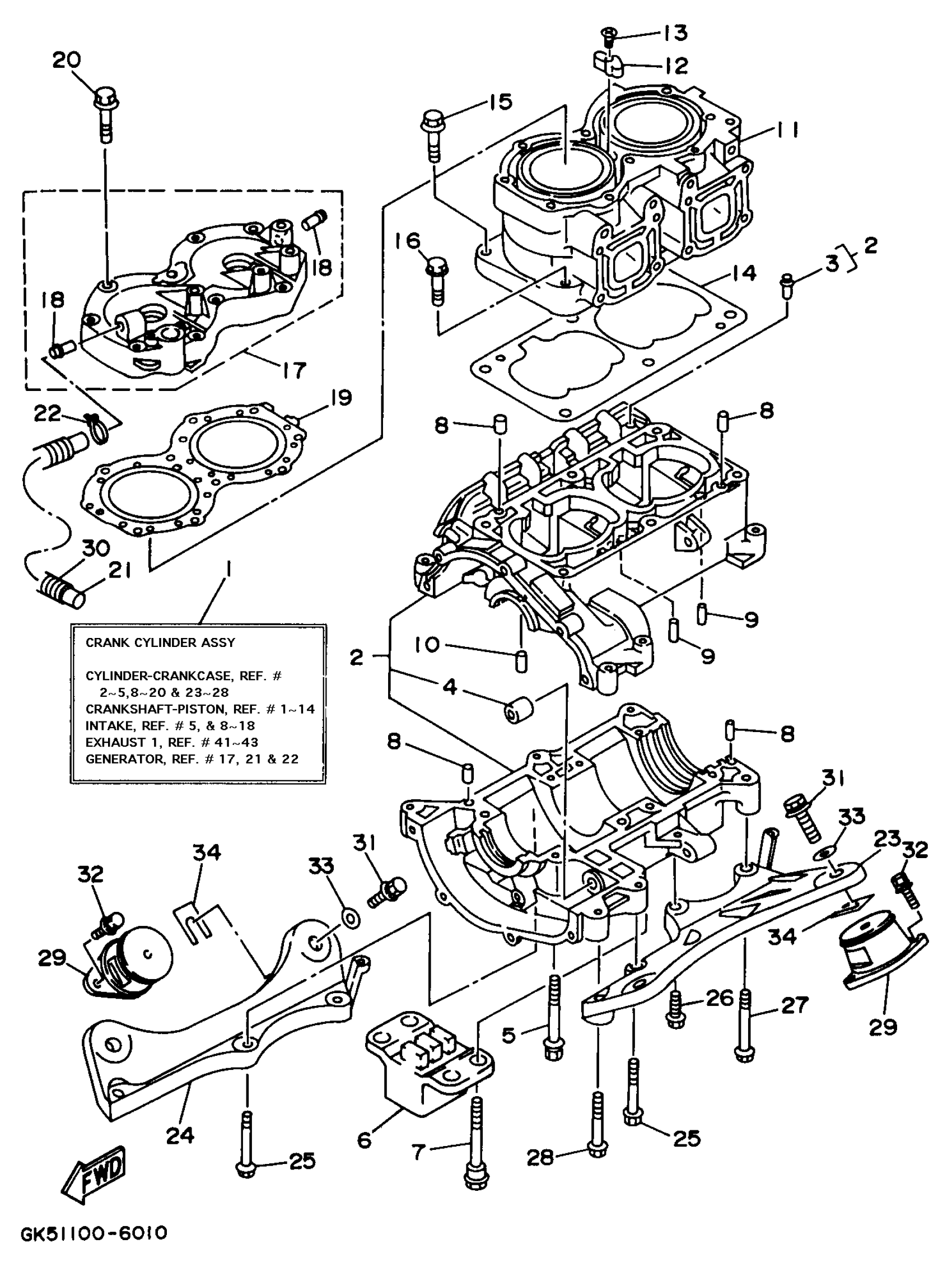

Yamaha WB760U (WAVE BLASTER II) 1996 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

65V-W0090-01-8S

Unavailable

2

CRANKCASE ASSY

64X-15100-00-00

Unavailable

3

NIPPLE

62T-14251-10-00

$4.51

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$2.95

6

STOPPER, UPPER MOUNT

64Y-44532-00-00

Unavailable

7

BOLT

90109-08M56-00

$4.09

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

PIN (2H7)

93603-10049-00

Unavailable

10

PIN, DOWEL (8H1)

93604-07141-00

$1.29

11

CYLINDER 1

64X-11311-00-8S

$1,009.08

12

ANODE

6E5-11325-00-00

$4.08

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

15

BOLT, WITH WASHER

90119-10M56-00

$10.24

16

BOLT (6F5)

90119-10M07-00

Unavailable

17

HEAD, CYLINDER 1

64X-11111-09-8S

Unavailable

18

. NIPPLE

6K8-51129-00-00

$9.62

19

GASKET, CYLINDER HEAD

64X-11181-00-00

$81.80

20

BOLT, WITH WASHER

90119-08019-00

$4.79

21

HOSE

90445-14M03-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

24

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

25

BOLT, WITH WASHER

90119-10M23-00

$10.24

26

BOLT, WITH WASHER

90119-10M00-00

$8.56

27

BOLT, WITH WASHER

90119-10M03-00

$9.08

28

BOLT, WITH WASHER

90119-10M01-00

$9.08

29

MOUNT RUBBER

62E-44517-A1-8P

$68.96

30

HOSE

90446-20M53-00

Unavailable

31

BOLT, WITH WASHER

90119-08904-00

$3.18

32

BOLT, WITH WASHER

90119-08038-00

$4.99

33

PLATE

EU0-67324-00-00

$8.14

34

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

34

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

34

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

34

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

34

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
