1996 Yamaha Wave Blaster II (WB760U) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 1996 Yamaha Wave Blaster II (WB760U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

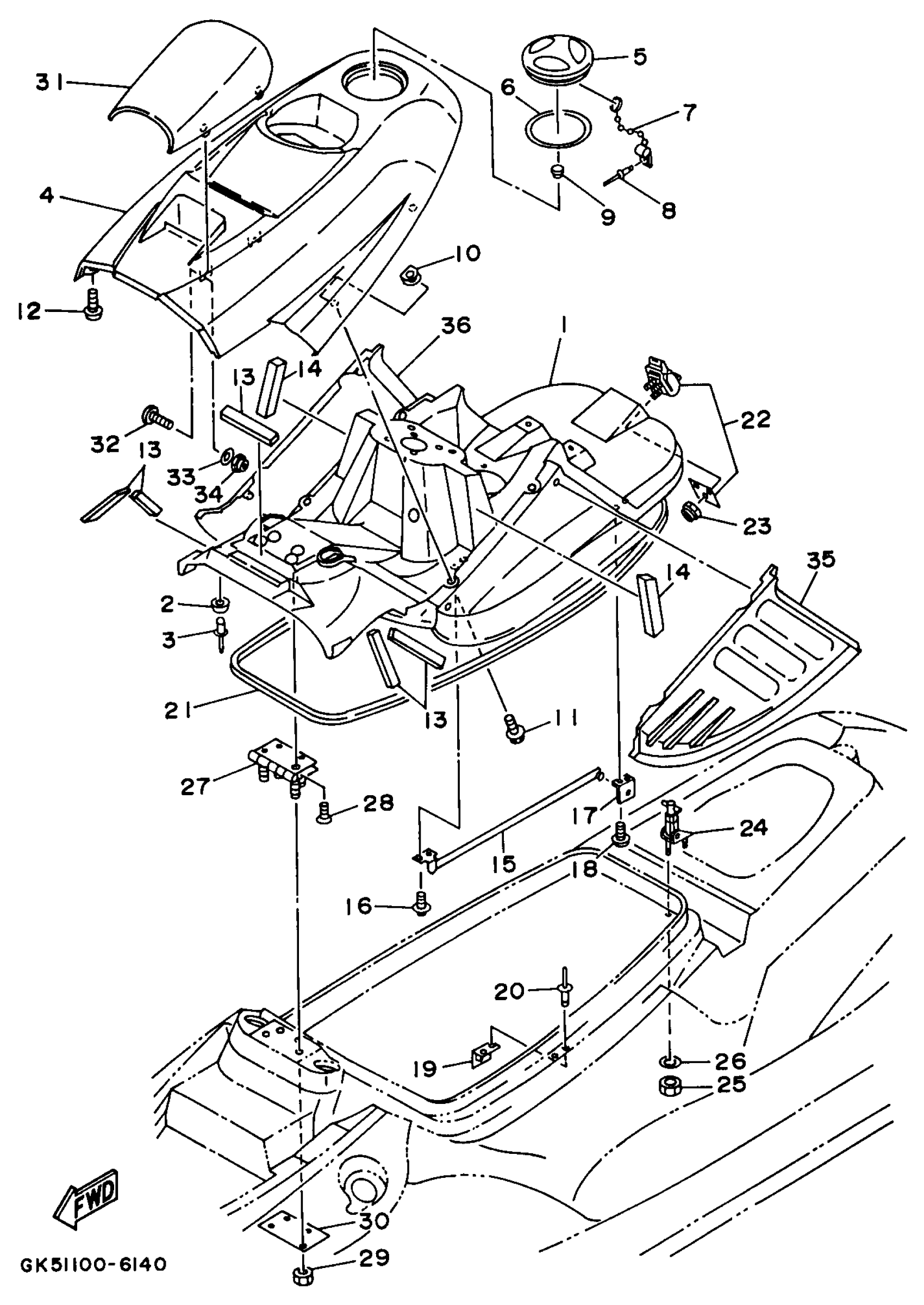

1996 Yamaha Wave Blaster II (WB760U) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GK5-6516A-10-00

1
Out of stock

2

CUSHION, RUBBER

GA7-63768-00-00

1
Out of stock

3

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

4

COVER, ENGINE HATCH

GK5-6516N-00-00

1
Out of stock

5

CAP,CASE

GK5-6591C-01-00

1
Out of stock

6

PACKING, CASE

GK5-6591D-00-00

1
Out of stock

7

CHAIN, BALL

GK5-64735-09-00

1
Out of stock

8

RIVET, BLIND

90267-409U3-00

1
Out of stock

9

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

10

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

11

BOLT, WITH WASHER

90119-06947-00

1
Out of stock

12

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

13

PACKING 6

GK5-6266E-00-00

1
Out of stock

14

PACKING 8

GK5-6266G-00-00

1
Out of stock

15

SUPPORT, HATCH

GH1-62891-01-00

1
Out of stock

16

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

17

FIX, PLATE

GK5-62892-00-00

1

$31.99

In stock

18

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

19

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

20

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

21

PACKING

GK5-62664-01-00

1
Out of stock

22

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

23

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

24

HOOK, HATCH LOCK

GK5-62843-00-00

1
Out of stock

25

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

HINGE, HATCH

GK5-6517G-00-00

1
Out of stock

28

SCREW, FLAT HEAD

98780-06014-00

1

$3.54

In stock

29

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

30

PLATE

GK5-65193-00-00

1
Out of stock

31

VISOR

GK5-6515N-00-00

1

$256.99

In stock

32

SCREW

90149-05945-00

1
Out of stock

33

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

34

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

35

PAD, KNEE 1

GK5-6353C-00-00

1
Out of stock

36

PAD, KNEE 2

GK5-6353D-00-00

1
Out of stock
