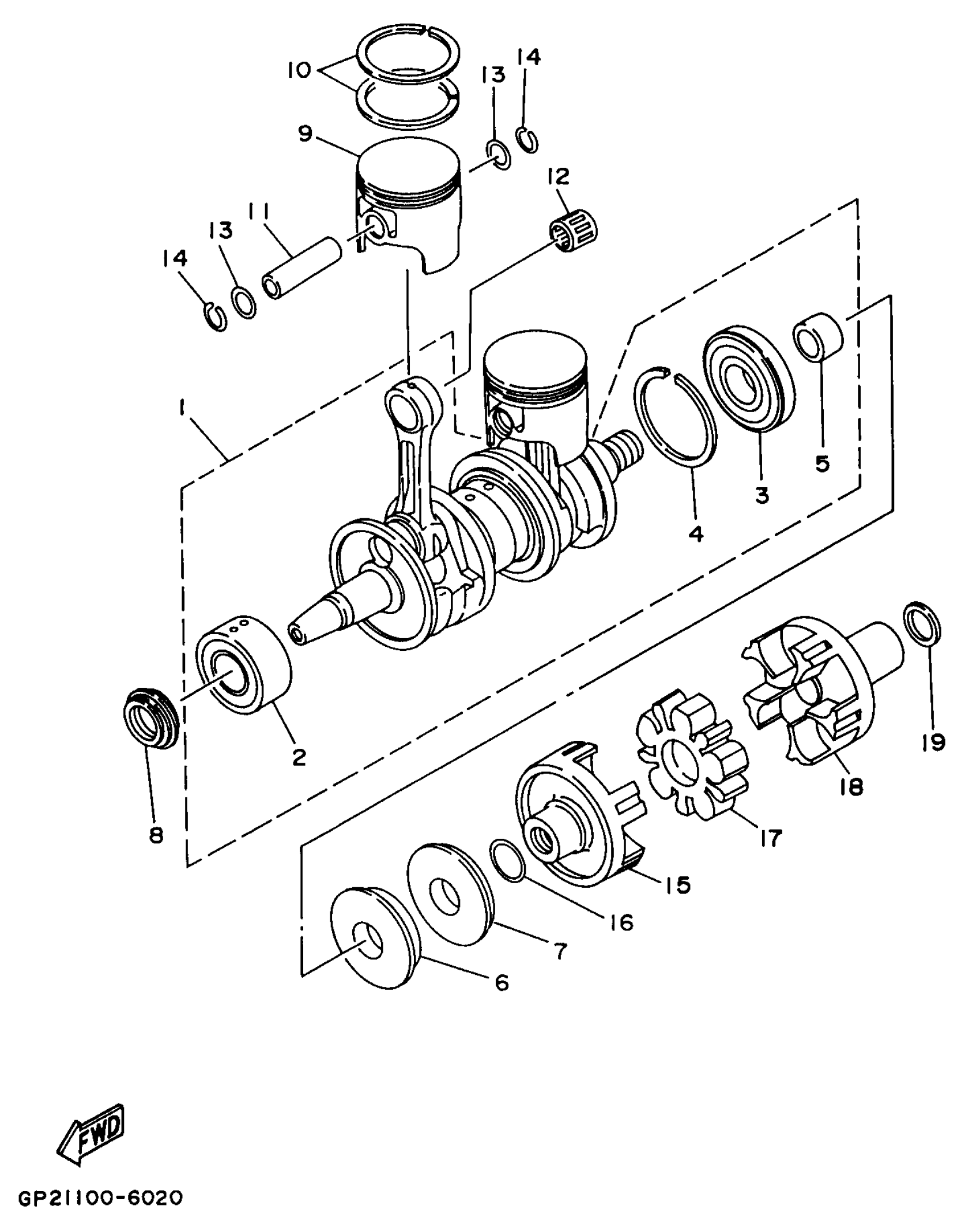

Yamaha WB760U (WAVE BLASTER II) 1996 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

65V-Y117P-01-00

$1,105.96

2

BEARING(8AB)

93305-30601-00

$186.00

3

BEARING(6M6)

93306-307U3-00

$68.93

4

CIRCLIP (834)

93440-80023-00

$12.40

5

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$23.17

6

. OIL SEAL

93102-36M33-00

$15.95

7

. OIL SEAL

93101-36M46-00

$13.29

8

. OIL SEAL

93103-32M01-00

$15.19

9

PISTON (STD)

64X-11631-00-91

$153.89

9

PISTON (0.25MM O/S)

64X-11635-00-00

Unavailable

9

PISTON (0.50MM O/S)

64X-11636-00-00

Unavailable

10

PISTON RING SET (STD)

64X-11603-00-00

$82.07

10

PISTON RING SET (0.25MM O/S)

64X-11604-00-00

$74.61

10

PISTON RING SET (0.50MM O/S)

64X-11605-00-00

Unavailable

11

PIN, PISTON

62T-11633-00-00

$18.61

12

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$33.01

13

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

63M-45813-01-94

Unavailable

16

SEAL

62T-45127-01-00

Unavailable

17

RUBBER SHAFT COUPLING

63M-4581J-00-00

$85.06

18

FLANGE, COUPLING

64T-45813-00-8P

$120.88

19

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
