2012 Kawasaki W800 (European) Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

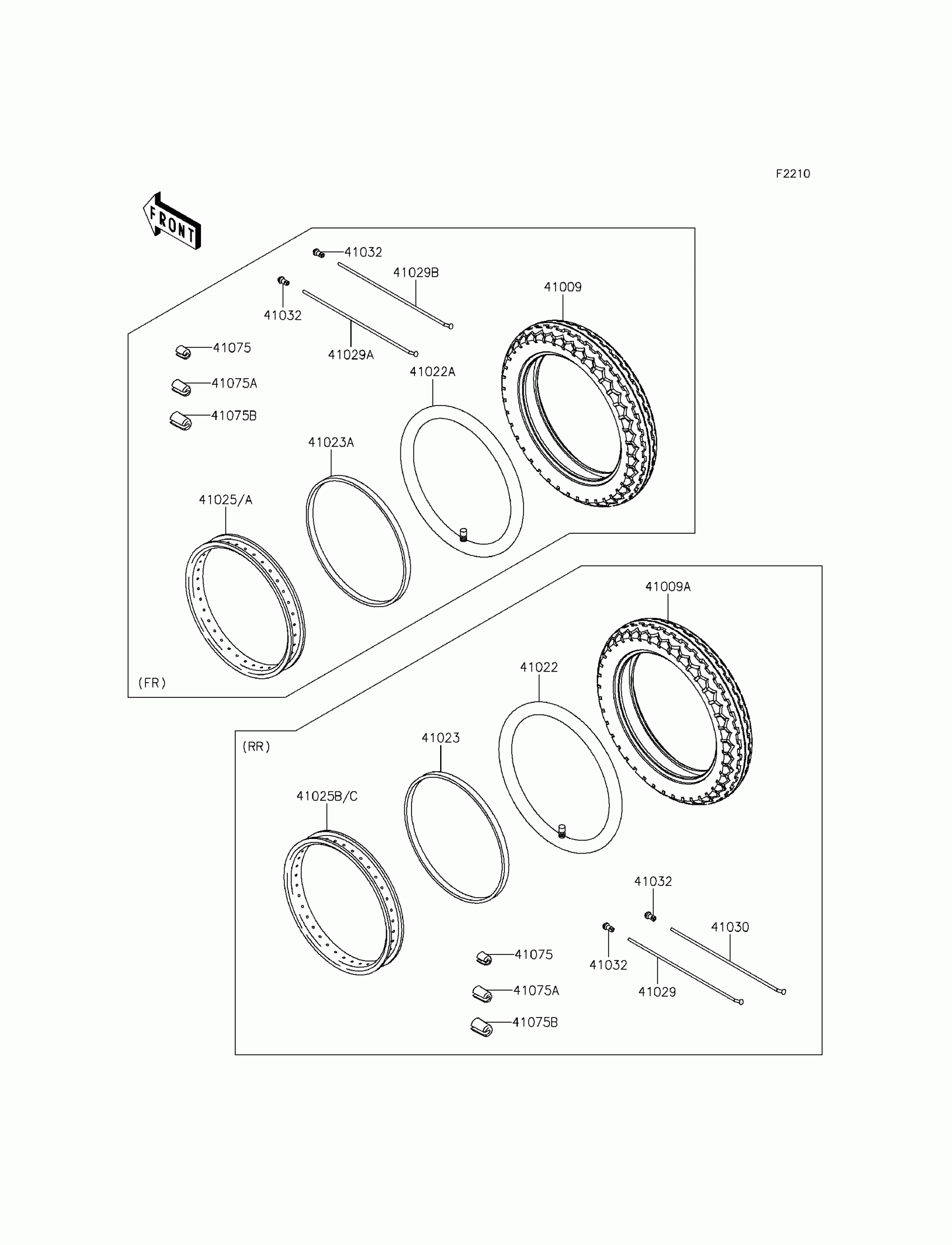

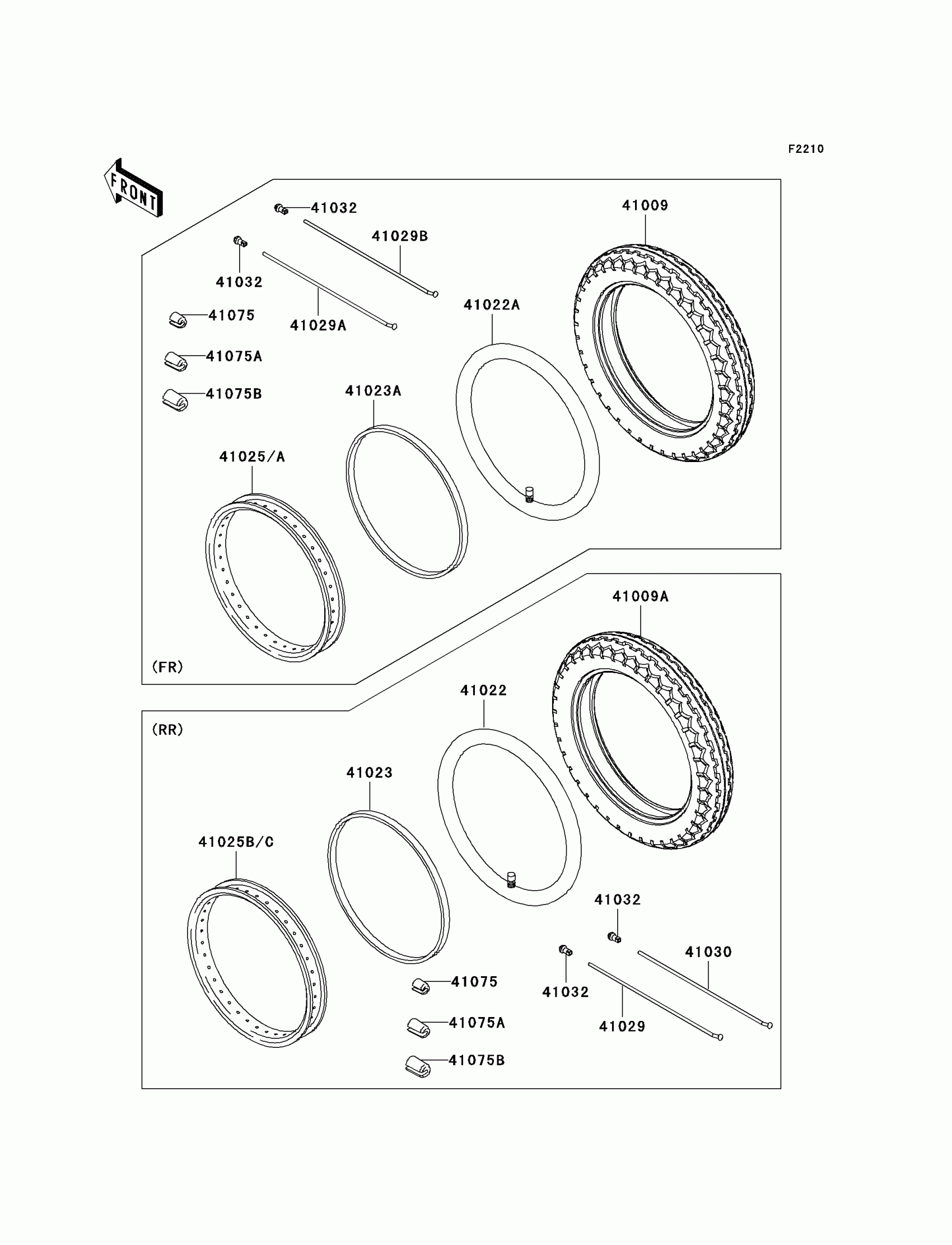

2012 Kawasaki W800 (European) Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,100/90-19 57H,TT100GPG

41009-1351

1
Out of stock

41009A

TIRE,RR,130/80-18 66H,TT100GP

41009-1352

1
Out of stock

41022

TUBE-TIRE,RR,130/80-18(D)

41022-0016

1
Out of stock

41022A

TUBE-TIRE,FR,100/90-19(D)

41022-1129

1
Out of stock

41023

BAND-RIM,100/100-18(D)

41023-1070

1
Out of stock

41023A

BAND-RIM,90-100/90-19(D)

41023-1074

1
Out of stock

41025

RIM,FR,2.15X19,SILVER

41025-1381-WA

1
Out of stock

41025B

RIM,RR,2.75X18,SILVER

41025-1382-WA

1
Out of stock

41029

SPOKE-INNER,RR,149MMX103D

41029-1300

1
Out of stock

41029A

SPOKE-INNER,FR,LH,200MMX170D

41029-1304

1
Out of stock

41029B

SPOKE-INNER,FR,RH,183MMX170D

41029-1305

1
Out of stock

41030

SPOKE-OUTER,RR,148MMX80D

41030-1164

1
Out of stock

41032

NIPPLE-SPOKE

41032-0005

1
Out of stock

41075

BALANCER-WHEEL,10G

41075-0011

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-0012

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-0013

—
Out of stock
