Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6205G

601B6205G

Unavailable

601A

BEARING-BALL,#6303UG

601B6303UG

Unavailable

41034A

DRUM-ASSY,REAR BRAKE,SILVER

41034-0070-458

$843.35

41035

PANEL-ASSY-BRAKE,RR

41035-0087

$550.16

41048

SHOE-BRAKE

41048-1130

$21.54

41050

CAM-BRAKE

41050-1065

$40.90

41051

SEAL,BRAKE CAM

41051-003

$3.25

41053

LEVER-BRAKE CAM

41053-1093

$62.49

41068

AXLE,RR,16X267

41068-0088

$85.65

41085

INDICATOR

41085-1060

$12.22

42020

SPRING,BRAKE SHOE

42020-004

$6.48

42033A

COUPLING-ASSY,RR HUB

42033-0052

$326.95

42036

SLEEVE,RR AXLE,L=22

42036-1233

$23.78

42041

SPROCKET-HUB,37T

42041-0093

$85.08

42046

WASHER,17.3X32X3.2

42046-009

$7.71

92004

STUD,10X19

92004-0028

$6.80

92027

COLLAR,L=104

92027-1714

$20.15

92027A

COLLAR,RR HUB

92027-1784

$22.49

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL

92049-1287

$9.95

92057

CHAIN,DRIVE,EK520MVXLX104L

92057-0213

$237.02

92058

JOINT-CHAIN,DRIVE

92058-0021

$13.00

92150

BOLT,8X27

92150-1797

$4.90

92152

COLLAR,17.2X30X9.5

92152-0916

$10.29

92160

DAMPER,SHOCK,RR HUB

92160-1524

$71.26

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,CASTLE,16MM

92210-1171

$11.17

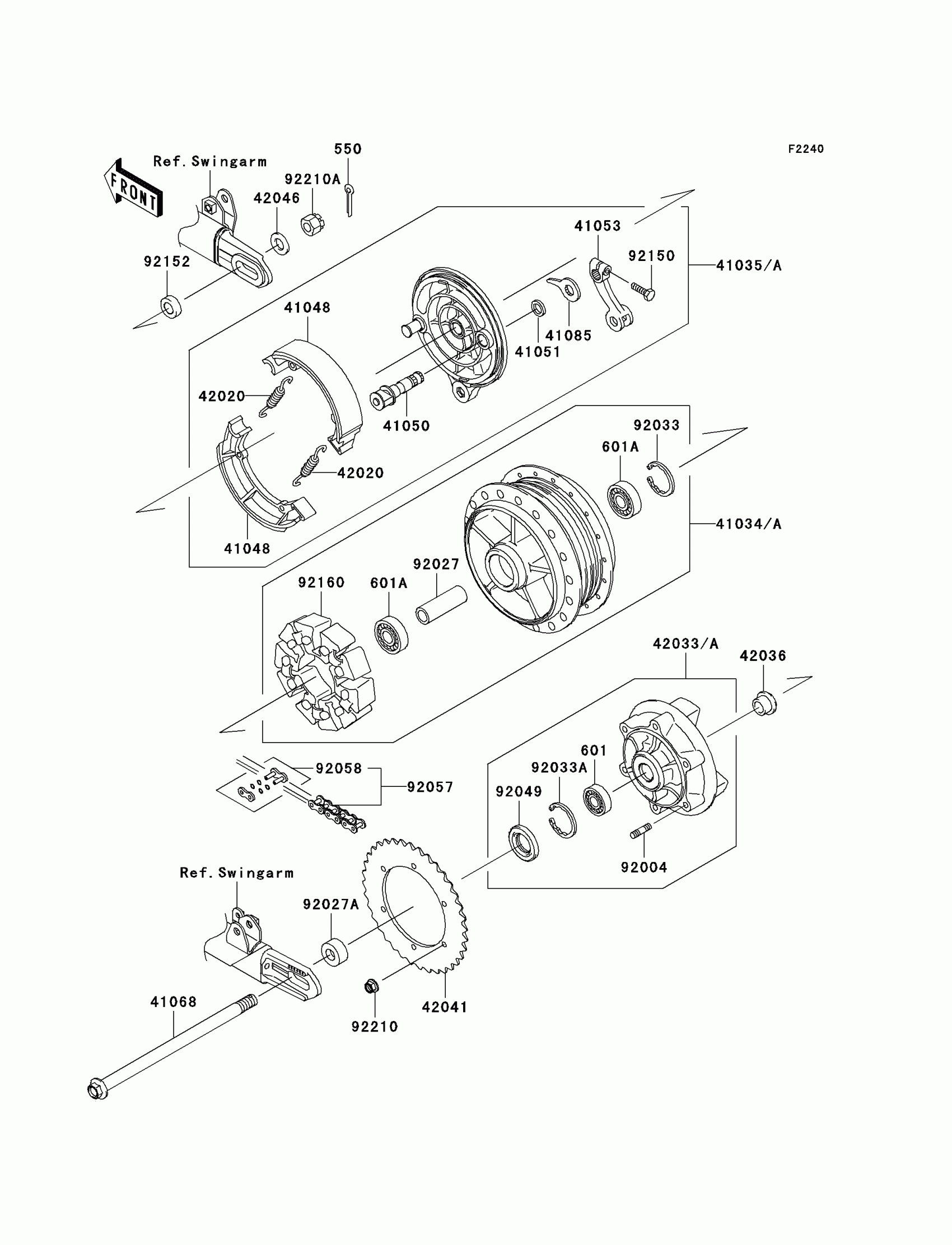

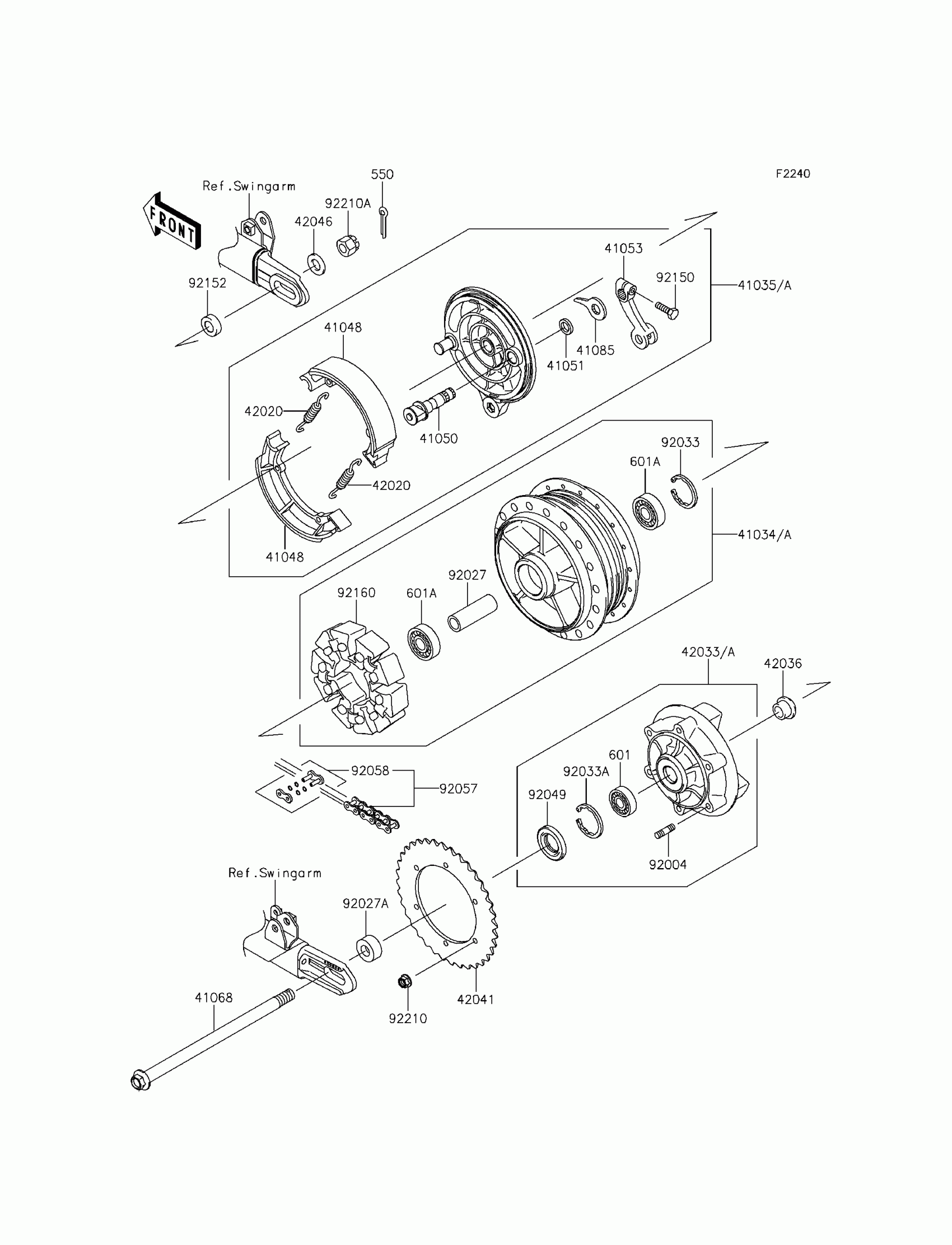

Kawasaki W800 (European) Rear Hub Diagram
