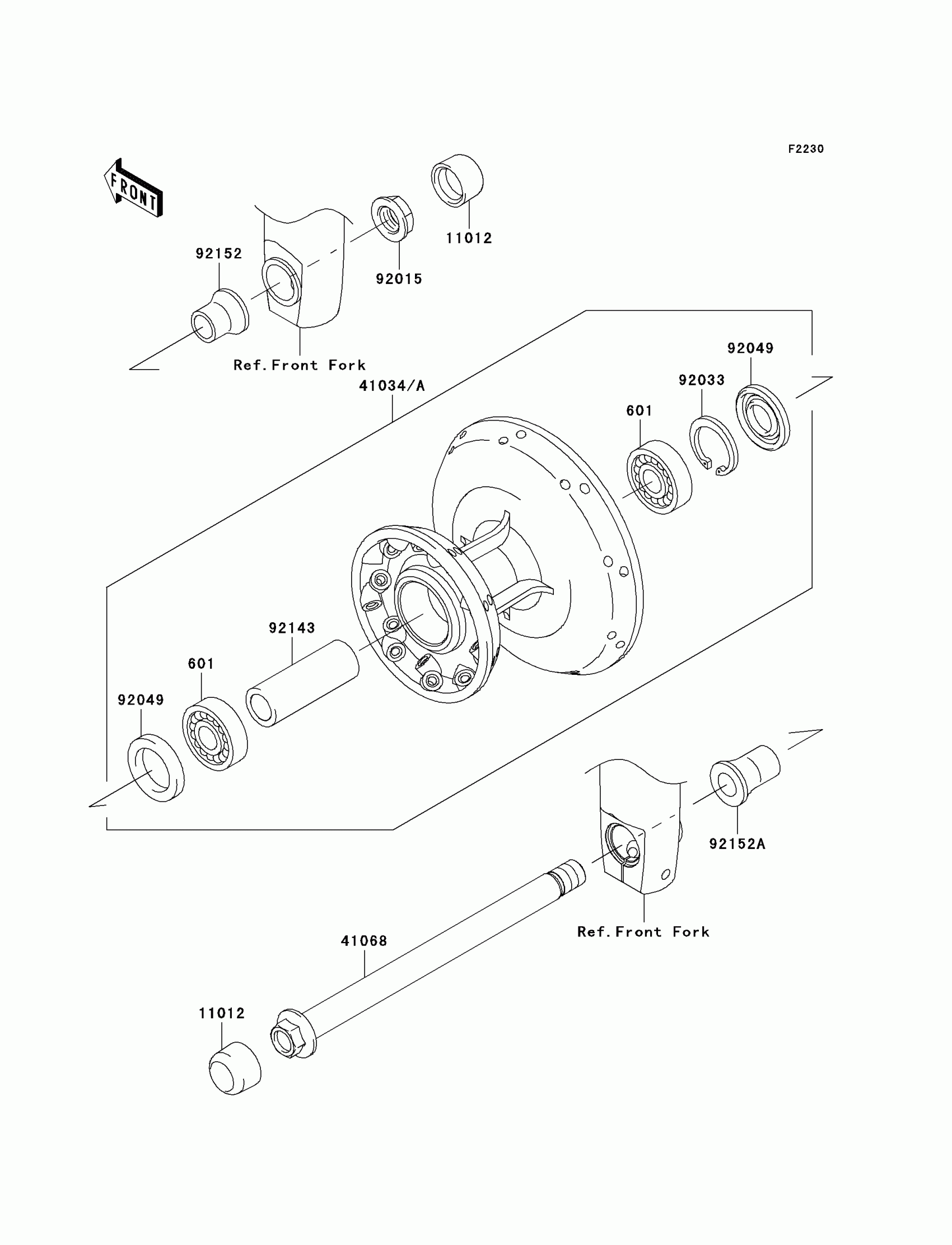

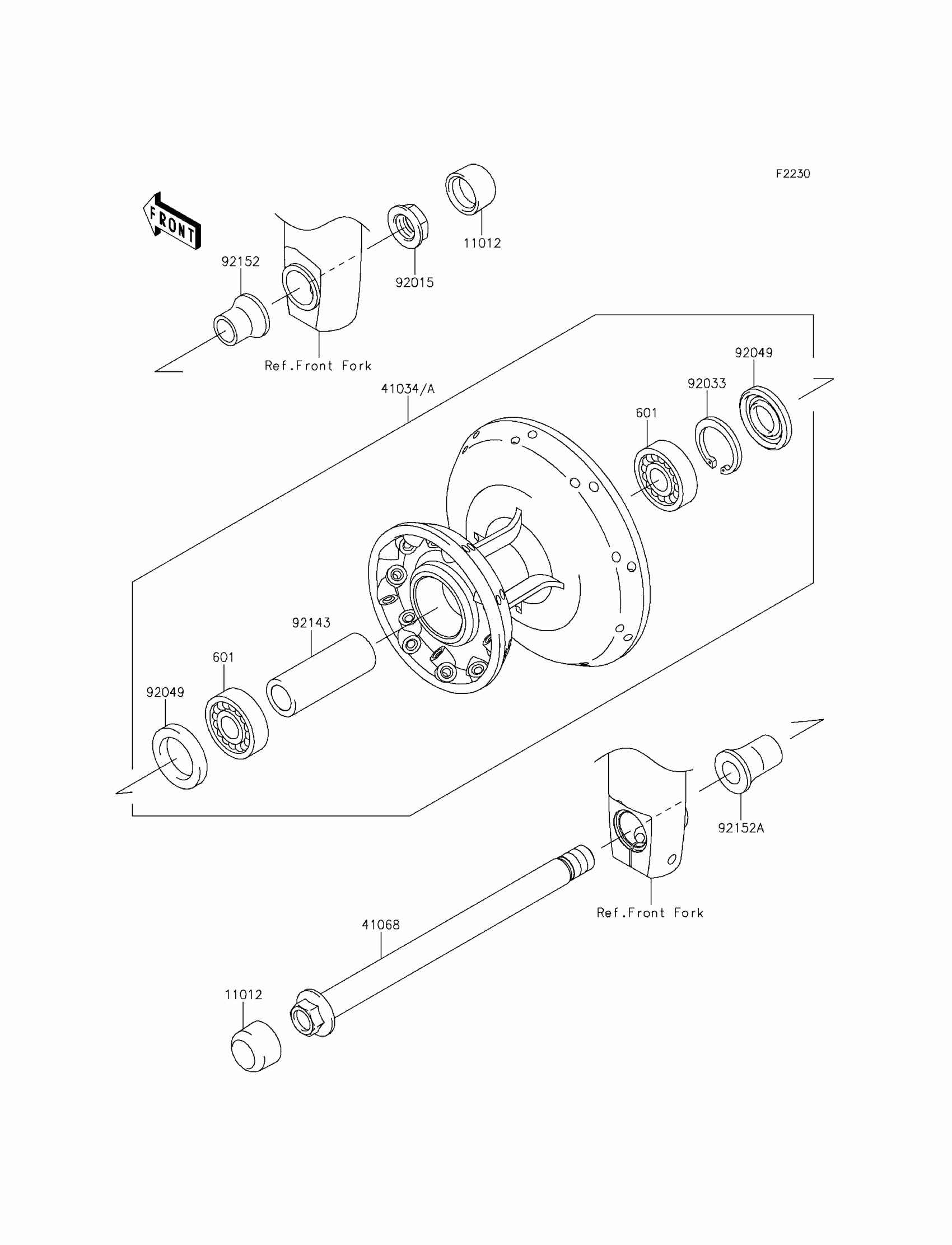

Kawasaki W800 (European) Front Hub Diagram

#

Description
Price

601

BEARING-BALL,#6203UG

601B6203UG

$34.89

11012

CAP,AXLE NUT

11012-1591

$4.39

41034A

DRUM-ASSY,FRONT BRAKE,SILVER

41034-1322-458

$504.78

41068

AXLE,FR,16X232

41068-0086

$85.35

92015

NUT,16MM

92015-1465

$14.01

92033

RING-SNAP,40MM

92033-1040

$4.45

92049

SEAL-OIL,AG1258AO

92049-1110

$9.02

92143

COLLAR,17.2X25X69

92143-1208

$12.47

92152

COLLAR,FR AXLE,RH,L=25.5

92152-1160

$17.34

92152A

COLLAR,FR AXLE,LH,L=31.5

92152-1307

$17.34
