2012 Kawasaki W800 (European) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

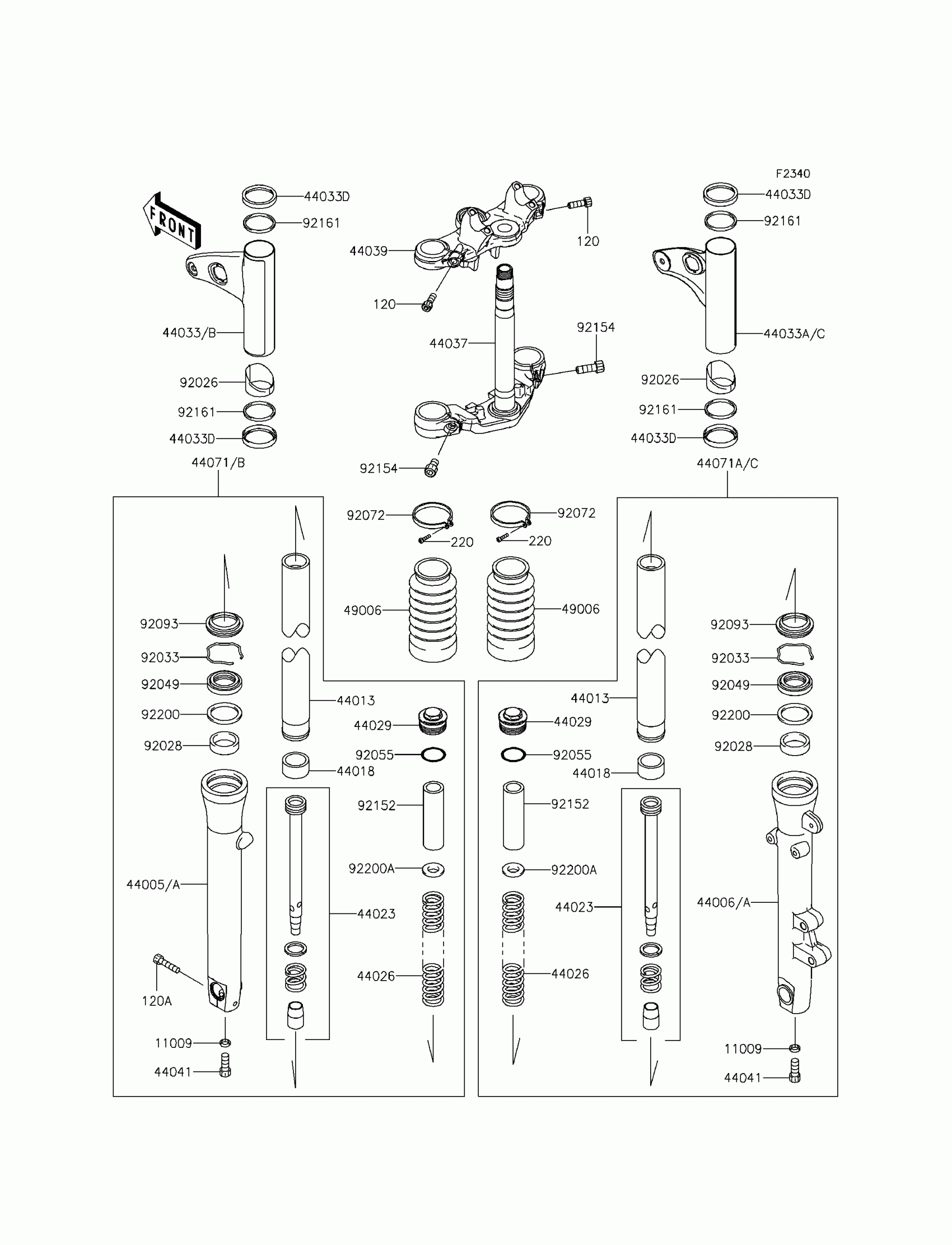

2012 Kawasaki W800 (European) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120CA0825

1

$1.55

In stock

120A

BOLT-SOCKET,8X35

120CA0835

1

$2.29

In stock

220

SCREW-PAN-CROS,4X16

220C0416

1
Out of stock

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44005

1

$440.23

In stock

44006

1

$440.23

In stock

44013

PIPE-FORK INNER

44013-1488

1

$78.93

In stock

44018

1

$20.24

In stock

44023

CYLINDER-SET-FORK

44023-1152

1

$128.86

In stock

44026

SPRING-FRONT FORK

44026-0032

1

$70.61

In stock

44029

SEAT-FORK SPRING

44029-1140

1
Out of stock

44033

COVER-FORK,LH

44033-0064

1

$124.67

In stock

44033A

COVER-FORK,RH

44033-0065

1

$124.67

In stock

44033D

COVER-FORK

44033-1197

1

$24.15

In stock

44037

HOLDER-FORK UNDER,BLACK

44037-0051-10

1

$385.21

In stock

44039

HOLDER-FORK UPPER,BLACK

44039-0041-10

1

$281.73

In stock

44041

1

$5.21

In stock

44071

DAMPER-ASSY,FORK,LH

44071-0724

1

$741.71

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-0725

1

$741.71

In stock

49006

BOOT,FORK

49006-1335

1

$77.32

In stock

92026

SPACER,FORK COVER

92026-1432

1

$5.19

In stock

92028

BUSHING

92028-1940

1

$29.46

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1515

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1050

1

$4.97

In stock

92072

BAND,BOOT

92072-1046

1

$9.71

In stock

92093

1

$17.76

In stock

92152

COLLAR,FORK,L=115

92152-1173

1

$8.44

In stock

92154

BOLT

92154-0445

1

$2.71

In stock

92161

DAMPER

92161-0512

1

$5.00

In stock

92200

WASHER

92200-1029

1
Out of stock

92200A

WASHER

92200-1187

1
Out of stock
