2012 Kawasaki W800 (European) Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

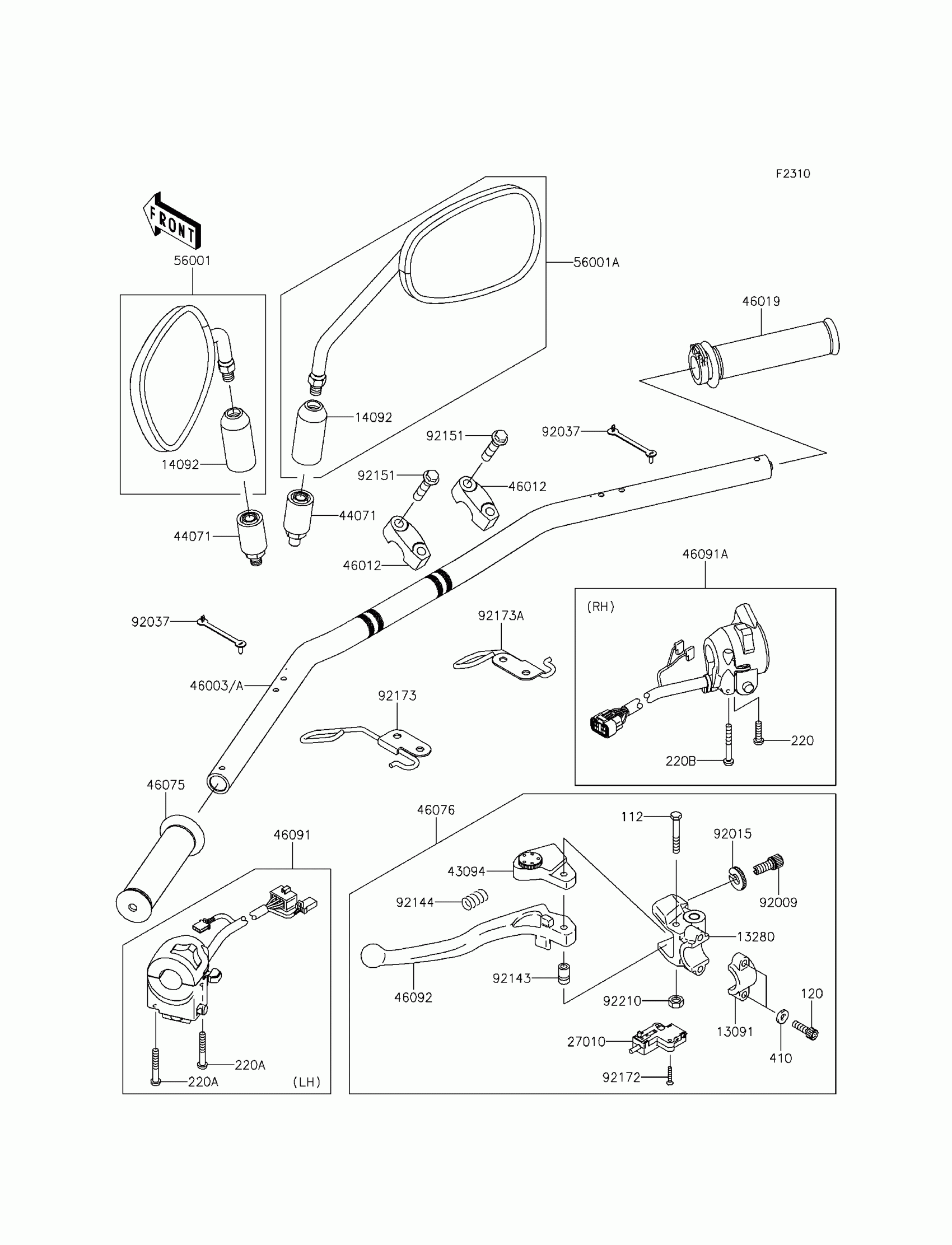

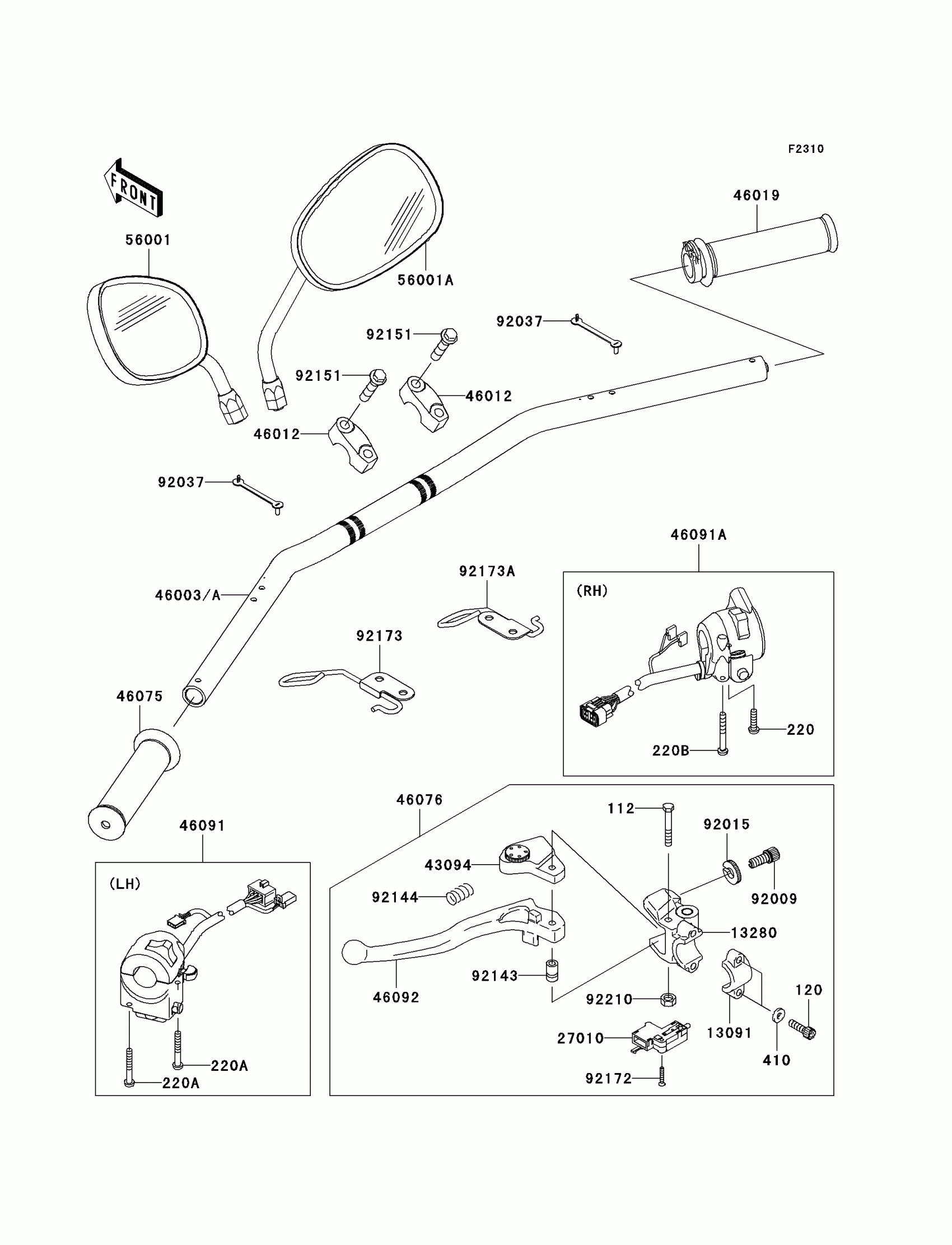

2012 Kawasaki W800 (European) Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X40

112C0640

1
Out of stock

120

BOLT-SOCKET,6X20

120CB0620

1
Out of stock

220

SCREW-PAN-CROS,5X20

220AB0520

1
Out of stock

220A

SCREW-PAN-CROS,5X35

220AB0535

1
Out of stock

220B

SCREW-PAN-CROS,5X40

220AB0540

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410AB0600

1
Out of stock

13091

HOLDER,CLUTCH LEVER

13091-1624

1

$36.55

In stock

13280

HOLDER,CLUTCH LEVER

13280-0248

1

$52.39

In stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1
Out of stock

43094

ADJUSTER,CLUTCH LEVER

43094-1053

1
Out of stock

46003

HANDLE,22.2MM

46003-0573

1
Out of stock

46012

HOLDER-HANDLE,UPP

46012-1267

1

$32.62

In stock

46019

GRIP-ASSY,THROTTLE

46019-1110

1

$39.26

In stock

46075

GRIP,LH

46075-1175

1

$30.72

In stock

46076

1

$111.09

In stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0221

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0228

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1162

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0198

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0199

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92143

COLLAR

92143-1379

1
Out of stock

92144

SPRING

92144-1467

1
Out of stock

92151

BOLT,FLANGED,8X35

92151-1402

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

92173

CLAMP,HOUSING,LH

92173-0282

1
Out of stock

92173A

CLAMP,HOUSING,RH

92173-0283

1
Out of stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock
