2020 Kawasaki W800 Cafe Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

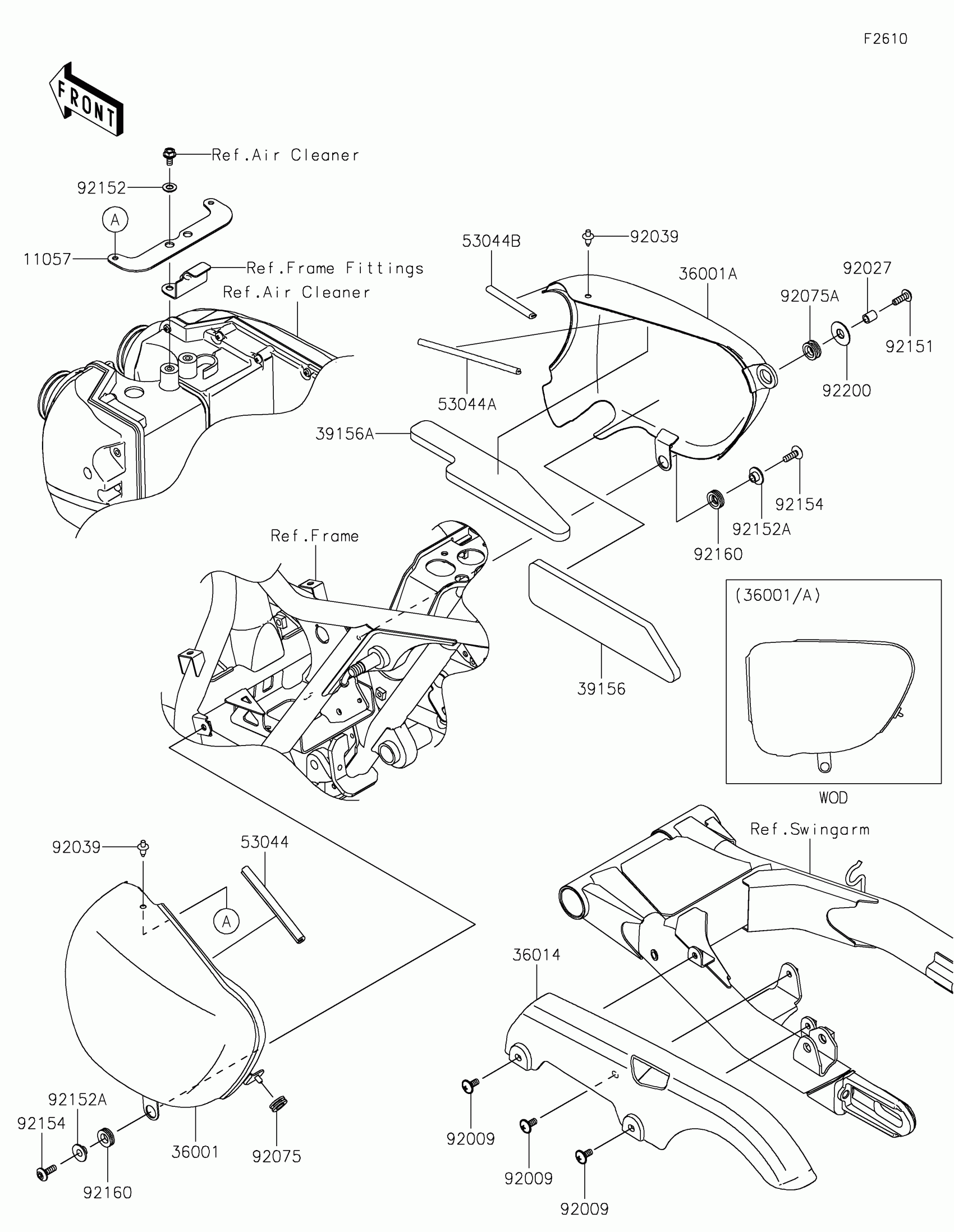

2020 Kawasaki W800 Cafe Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2999

1
Out of stock

36001

COVER-SIDE,LH,G.SILVER

36001-0694-474

1
Out of stock

36001A

COVER-SIDE,RH,G.SILVER

36001-0696-474

1
Out of stock

36014

CASE-CHAIN

36014-1234

1

$95.40

In stock

39156

1

$5.71

In stock

39156A

PAD,SIDE COVER,RH,UPP

39156-2533

1
Out of stock

53044

TRIM

53044-0667

1
Out of stock

53044A

TRIM,L=120

53044-1171

1
Out of stock

53044B

TRIM,L=80

53044-1218

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92039

RIVET

92039-0023

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92151

BOLT,SOCKET,6X20

92151-1750

1
Out of stock

92152

COLLAR

92152-0275

1
Out of stock

92152A

COLLAR,L=7.4

92152-2538

1
Out of stock

92154

BOLT,SOCKET,6X18

92154-2438

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92200

WASHER

92200-1153

1
Out of stock
