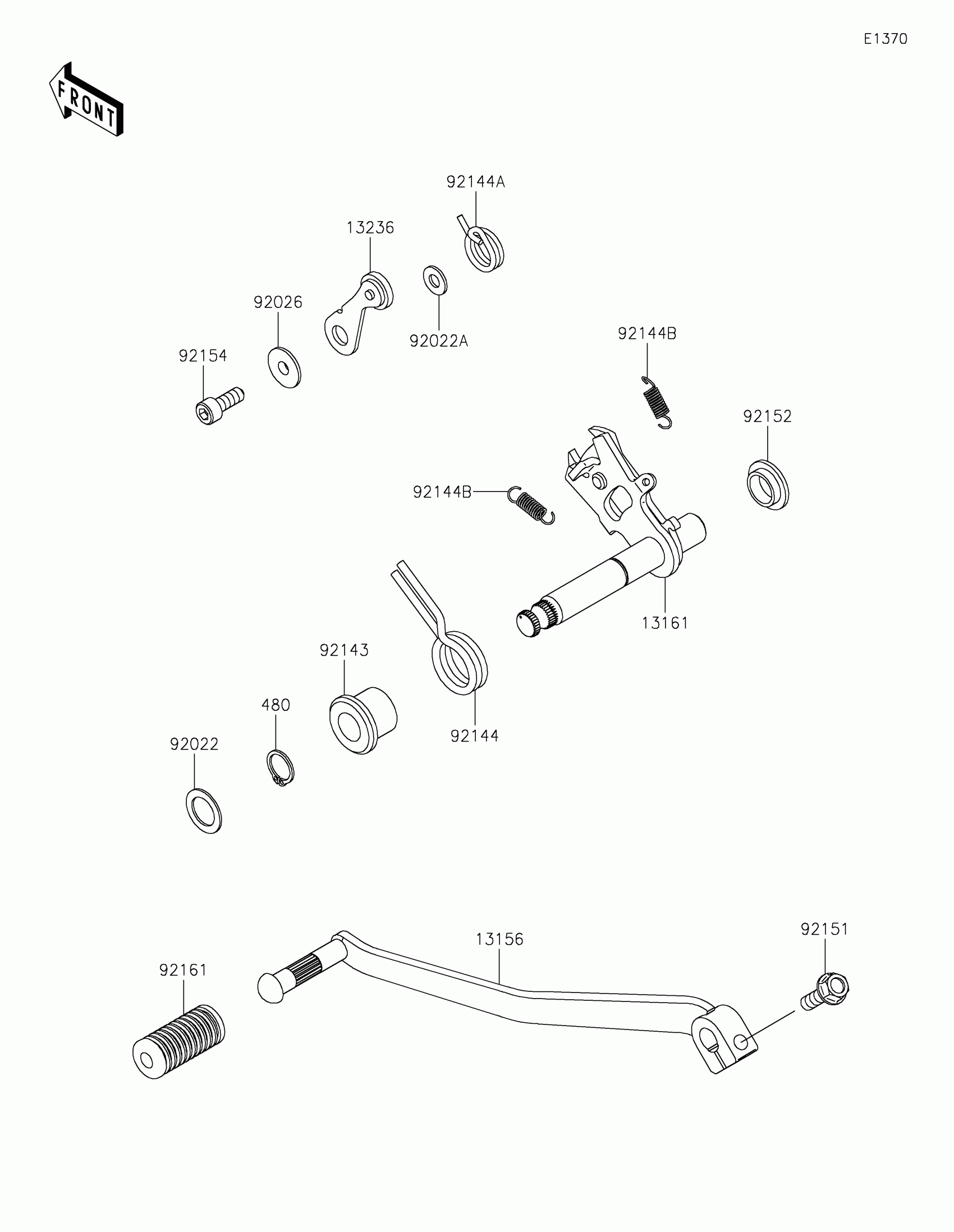

Kawasaki W800 CAFE Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0660

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-0558

$74.33

13236

LEVER-COMP,POSITION

13236-1253

$10.54

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92143

COLLAR,RETURN SPRING

92143-1498

$8.10

92144

SPRING,CHANGE SHAFT RETURN

92144-1628

$9.14

92144A

SPRING,LEVER POSITION

92144-1873

$7.63

92144B

SPRING,CHANGE LEVER

92144-1975

$4.80

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92152

COLLAR

92152-1075

$3.19

92154

BOLT,SOCKET,6X16

92154-0484

$1.44

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.65

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99
