2020 Kawasaki W800 Cafe Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

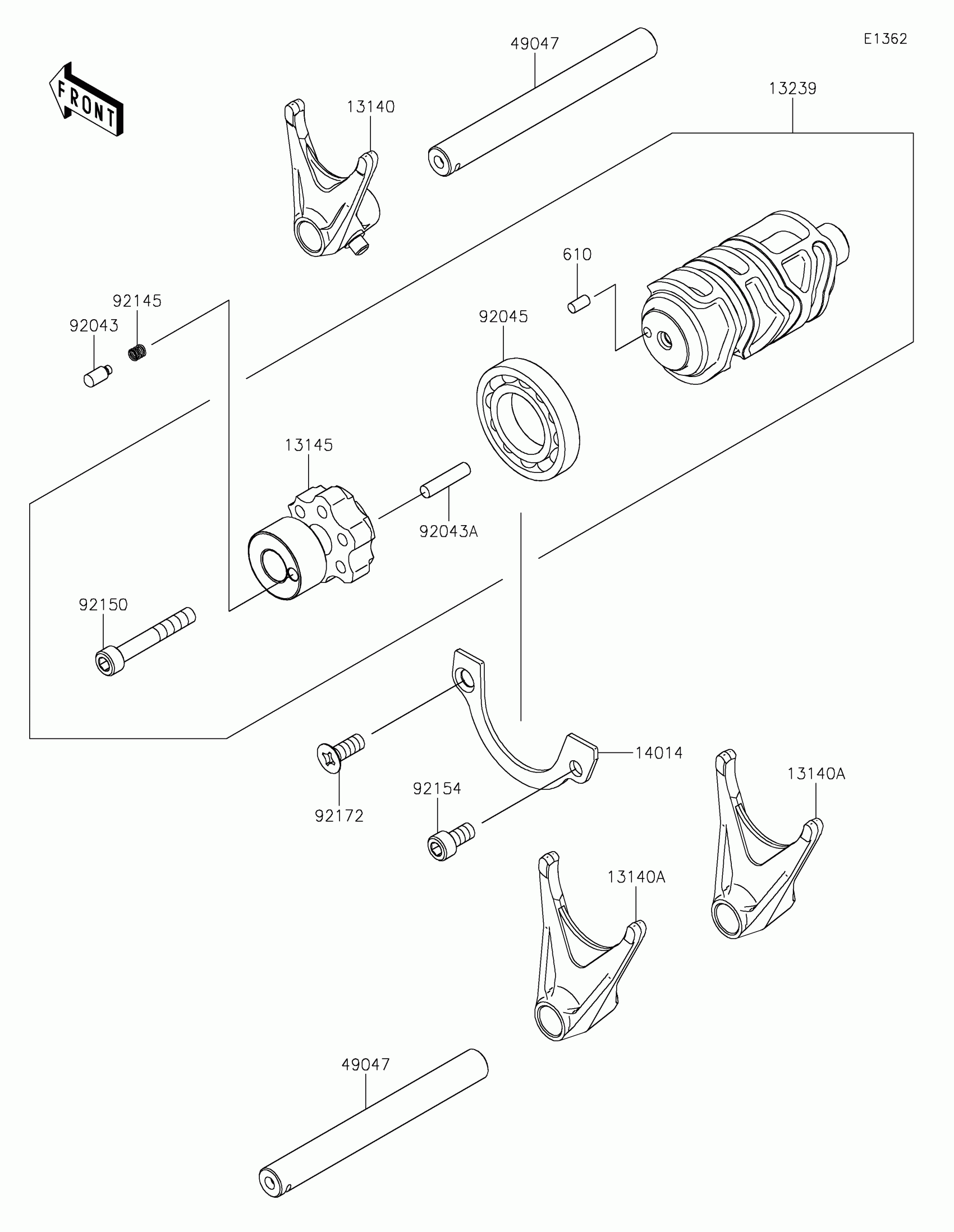

2020 Kawasaki W800 Cafe Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,INPUT 3RD

13140-1282

1
Out of stock

13140A

FORK-SHIFT,OUTPUT 4TH&TOP

13140-1283

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1083

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0557

1
Out of stock

14014

PLATE-POSITION

14014-1141

1

$7.71

In stock

49047

ROD-SHIFT

49047-1102

1
Out of stock

92043

PIN

92043-0712

1
Out of stock

92043A

PIN,5X21.8

92043-1518

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock

92145

SPRING

92145-1414

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1958

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-0483

1
Out of stock

92172

SCREW,6X16

92172-0503

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
