2020 Kawasaki W800 Cafe Rear Wheel/chain Diagram

← All diagrams

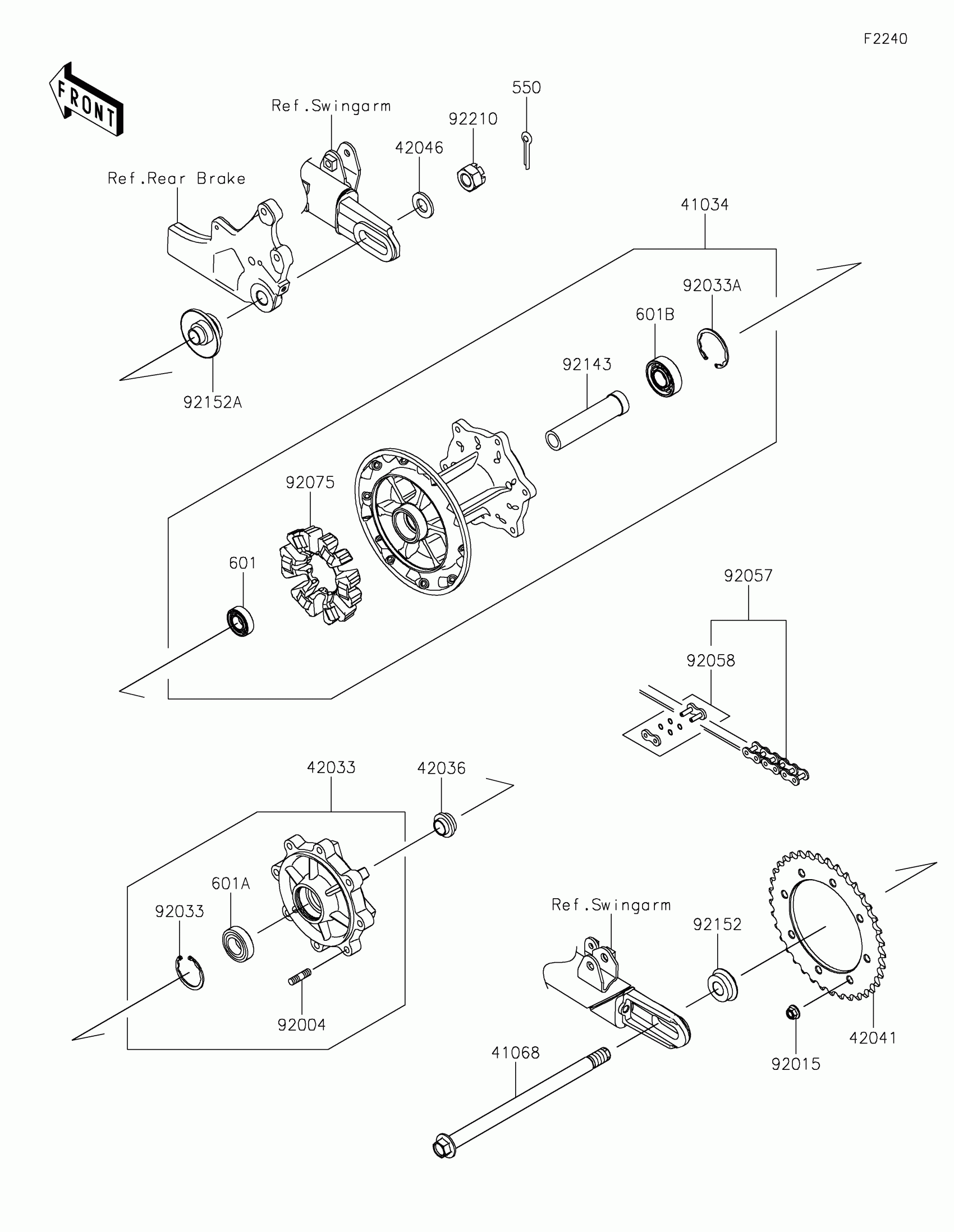

Find the part on the Rear Wheel/chain diagram for your 2020 Kawasaki W800 Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Cafe Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR,F.BLACK

41034-0603-21

1
Out of stock

41068

AXLE,RR,16X267

41068-0088

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0592

1
Out of stock

42036

SLEEVE,REAR AXLE,L=16

42036-1206

1
Out of stock

42041

SPROCKET-HUB,37T

42041-0170

1
Out of stock

42046

WASHER,17.3X32X3.2

42046-009

1
Out of stock

92004

STUD,8X16

92004-1150

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92033A

RING-SNAP,47MM

92033-1042

1
Out of stock

92057

CHAIN,DRIVE,EK520MVXLX104L

92057-0213

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0021

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1
Out of stock

92143

COLLAR,REAR BRAKE DRUM,L=113

92143-1060

1
Out of stock

92152

COLLAR,LH

92152-2523

1
Out of stock

92152A

COLLAR,RH

92152-2602

1
Out of stock

92210

NUT,CASTLE,16MM

92210-1171

1
Out of stock

550

PIN-COTTER,4.0X40

550AA4040

1
Out of stock

601

BEARING-BALL,#6003G

601B6003G

1
Out of stock

601A

BEARING-BALL,#6004UG

601B6004UG

1
Out of stock

601B

BEARING-BALL,#6204UG

601B6204UG

1
Out of stock
