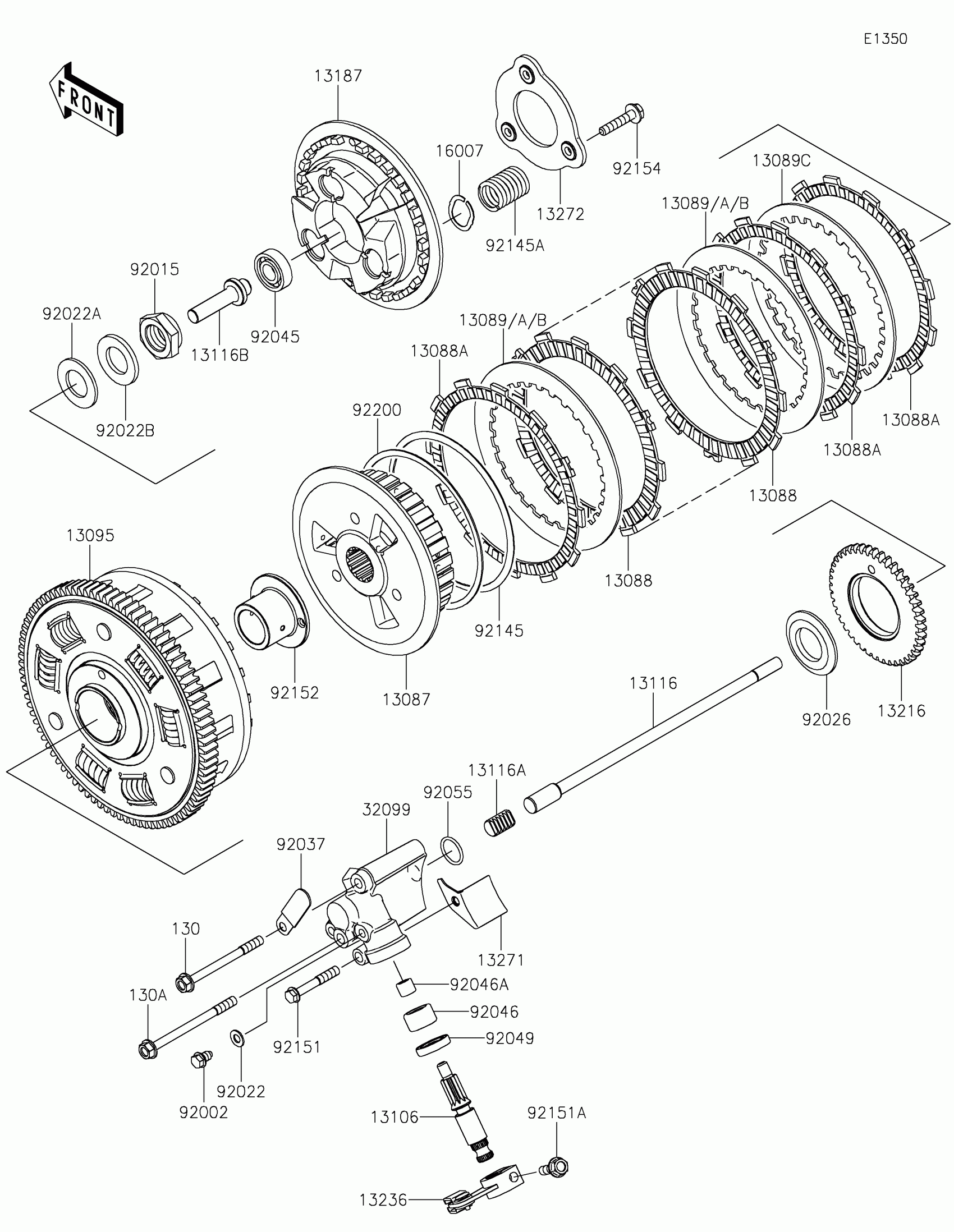

Kawasaki W800 CAFE Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0581

$148.00

13088

PLATE-FRICTION

13088-0569

$19.92

13088A

PLATE-FRICTION

13088-0601

$15.05

13089

PLATE-CLUTCH,T=2.3

13089-0027

Unavailable

13089A

PLATE-CLUTCH,T=2.0,28T

13089-0047

$11.29

13089B

PLATE-CLUTCH,T=1.6

13089-0048

Unavailable

13089C

PLATE-CLUTCH,T=2.0,30T

13089-0050

$11.36

13095

HOUSING-COMP-CLUTCH

13095-0594

$517.35

13106

SHAFT-CLUTCH RELEASE

13106-1068

$41.26

13116

ROD-PUSH

13116-0042

$68.00

13116A

ROD-PUSH,CLUTCH,6T

13116-1040

$20.88

13116B

ROD-PUSH,CLUTCH POSITION

13116-1164

$18.29

13187

PLATE-CLUTCH OPERATING

13187-0029

$109.20

13216

GEAR-COMP,OIL PUMP

13216-1177

$55.98

13236

LEVER-COMP,CLUTCH RELEASE

13236-1331

$20.66

13271

PLATE

13271-1179

$5.54

13272

PLATE

13272-2742

$18.05

16007

SEAT-SPRING

16007-0736

$10.49

32099

CASE,CLUTCH RELEASE

32099-1204

$62.33

92002

BOLT,FLANGED-SMALL,6X7X2.5

92002-1357

$4.17

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,20.3X36X2.3

92022-1116

$6.55

92022B

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25X47X4

92026-1242

$29.98

92037

CLAMP,L=45

92037-1539

$4.42

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92046A

BEARING-NEEDLE,HK0709

92046-1142

$14.29

92049

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O,16.8X1.9

92055-1598

$1.95

92145

SPRING

92145-1250

$18.05

92145A

SPRING

92145-1911

$9.07

92151

BOLT,6X40

92151-1131

$3.71

92151A

BOLT,FLANGED,6X20

92151-1226

$1.76

92152

COLLAR,CLUTCH GEAR

92152-1146

$67.61

92154

BOLT

92154-3982

$2.68

92200

WASHER,T=1.0

92200-1579

$10.10

130

BOLT-FLANGED,6X70

130CD0670

$4.46

130A

BOLT-FLANGED,6X80

130CD0680

$2.12
