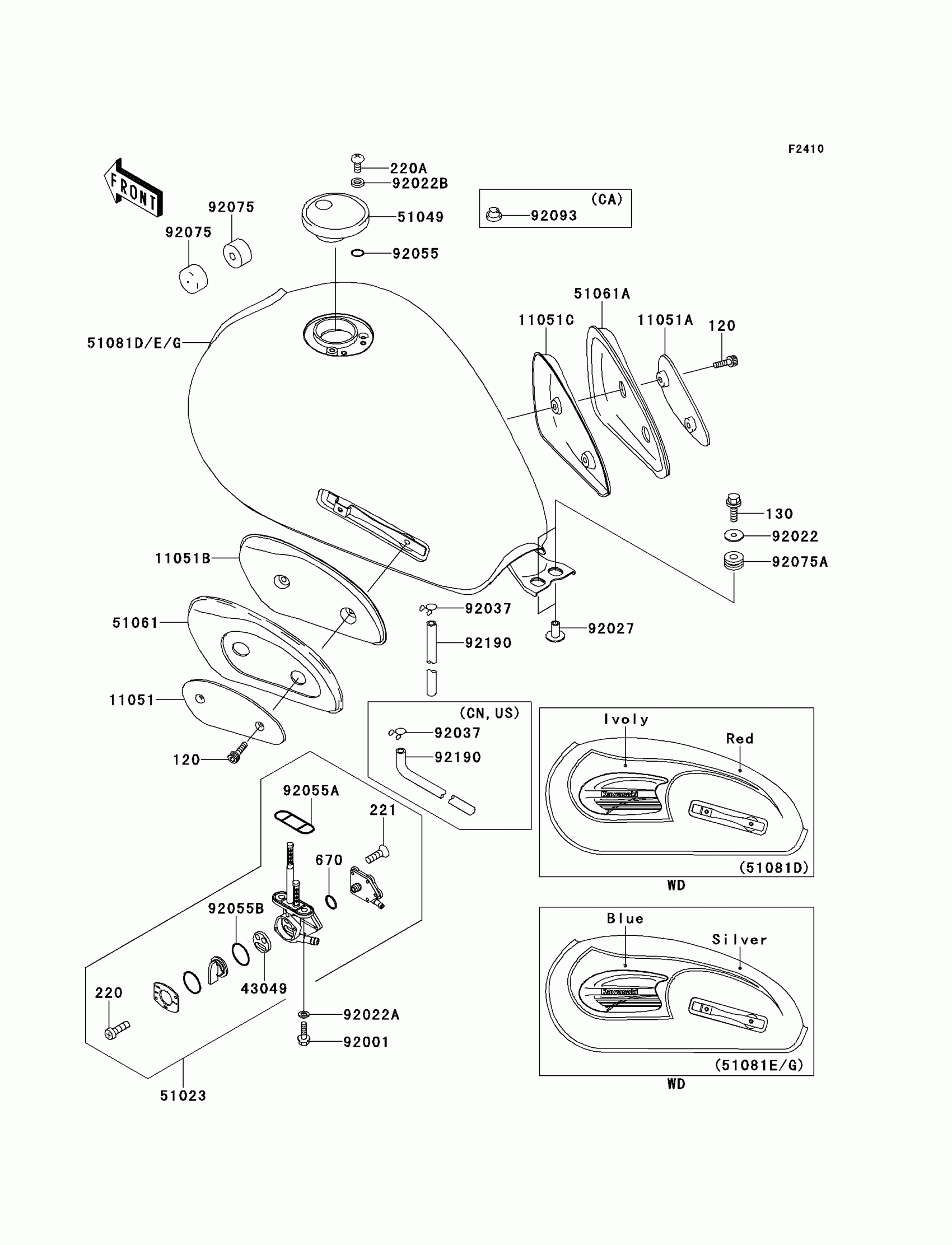

Kawasaki W650 Fuel Tank(EJ650-A2) Diagram

#

Description
Price

11051

BRACKET,KNEE PAD,LH,OUTER

11051-1533

Unavailable

11051A

BRACKET,KNEE PAD,RH,OUTER

11051-1534

Unavailable

11051B

BRACKET,KNEE PAD,LH,INNER

11051-1563

$34.34

11051C

BRACKET,KNEE PAD,RH,INNER

11051-1564

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.54

51023

TAP-ASSY,FUEL

51023-1251

$134.97

51049

CAP-TANK,FUEL

51049-1103

$112.77

51061

PAD-KNEE,LH

51061-1055

Unavailable

51061A

PAD-KNEE,RH

51061-1056

Unavailable

92001

BOLT,6X20

92001-1091

$2.99

92022

WASHER,6.5X24X2

92022-1690

$2.99

92022A

WASHER-PLAIN

92022-183

$2.99

92022B

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=13.1

92027-251

Unavailable

92055

RING-O

92055-1023

$2.99

92055A

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055B

RING-O,TAP LEVER

92055-1419

$3.81

120

BOLT-SOCKET,6X12

120R0612

$1.63

130

BOLT-FLANGED,6X25

130H0625

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER,10X24X12

92075-1690

$3.81

51081D

TANK-COMP-FUEL,RED/IVORY

51081-5305-8A

Unavailable

51081E

TANK-COMP-FUEL,BLUE/SILVER

51081-5306-L8

Unavailable

51081G

TANK-COMP-FUEL,BLUE/SILVER

51081-5341-L8

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92190

TUBE,DRAIN

92190-1453

$20.00

92190

TUBE,DRAIN

92190-1453

$20.00
