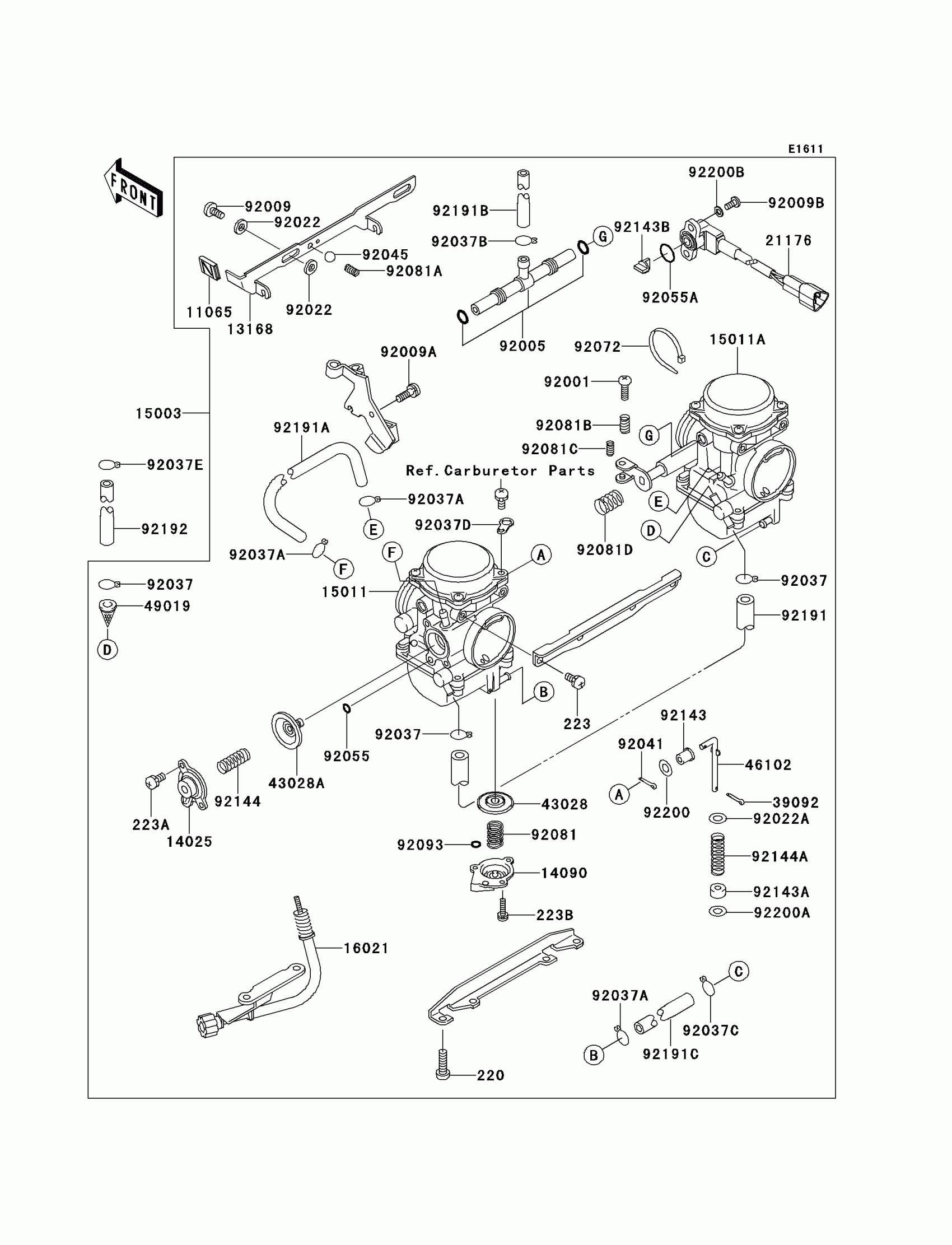

Find the part on the Carburetor diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,STARTER LEVER

11065-1092

1

$17.81

In stock

13168

LEVER,STARTER

13168-1679

1
Out of stock

14025

COVER,AIR CUT VALVE

14025-1903

1

$59.59

In stock

14090

COVER,ACCELERATOR

14090-1635

1

$60.49

In stock

15003

CARBURETOR-ASSY

15003-1594

1
Out of stock

15011

CARBURETOR,LH

15011-1795

1
Out of stock

15011A

CARBURETOR,RH

15011-1796

1

$780.57

In stock

16021

SCREW-THROTTLE STOP

16021-1228

1

$97.39

In stock

21176

SENSOR

21176-1101

1
Out of stock

39092

PIN-HAIR

39092-1058

1

$2.47

In stock

43028

DIAPHRAGM

43028-1077

1

$80.92

In stock

43028A

DIAPHRAGM,4.9MM,AIR CUT VALVE

43028-1084

1
Out of stock

46102

ROD

46102-1434

1
Out of stock

49019

FILTER-FUEL

49019-1092

1

$15.27

In stock

92001

1

$15.88

In stock

92005

FITTING

92005-1326

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92009B

SCREW

92009-1781

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1185

1

$4.87

In stock

92037C

CLAMP,TUBE

92037-1396

1

$4.37

In stock

92037D

CLAMP,HOSE

92037-1969

1

$6.44

In stock

92037E

CLAMP,TUBE

92037-1531

1

$4.37

In stock

92041

COTTER

92041-1061

1

$3.71

In stock

92045

1

$1.71

In stock

92055

RING-O

92055-1245

1

$4.42

In stock

92055A

RING-O,SENSOR

92055-1574

1

$3.88

In stock

92072

BAND,L=100

92072-1250

1
Out of stock

92081

SPRING,DIAPHRAGM

92081-1092

1

$11.12

In stock

92081A

SPRING,SHAFT STOP

92081-1619

1
Out of stock

92081B

SPRING

92081-1620

1

$3.94

In stock

92081C

1

$4.12

In stock

92081D

SPRING

92081-1876

1

$10.93

In stock

92093

SEAL-"U"RING

92093-1046

1

$5.15

In stock

92143

COLLAR

92143-1790

1

$3.27

In stock

92143A

COLLAR

92143-1791

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

223

1

$3.28

In stock

223A

1

$1.17

In stock

223B

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

92143B

COLLAR

92143-1907

1

$9.22

In stock

92144

1

$10.54

In stock

92144A

SPRING

92144-1886

1
Out of stock

92191

TUBE,FUEL

92191-1410

1
Out of stock

92191A

TUBE

92191-1411

1

$9.85

In stock

92191B

TUBE,7X11X370

92191-1412

1
Out of stock

92191C

TUBE

92191-1443

1

$13.22

In stock

92192

TUBE,L=180

92192-1110

1
Out of stock

92200

WASHER

92200-1274

1
Out of stock

92200A

WASHER

92200-1275

1
Out of stock

92200B

WASHER

92200-1369

1
Out of stock
