2001 Kawasaki W650 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2001 Kawasaki W650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

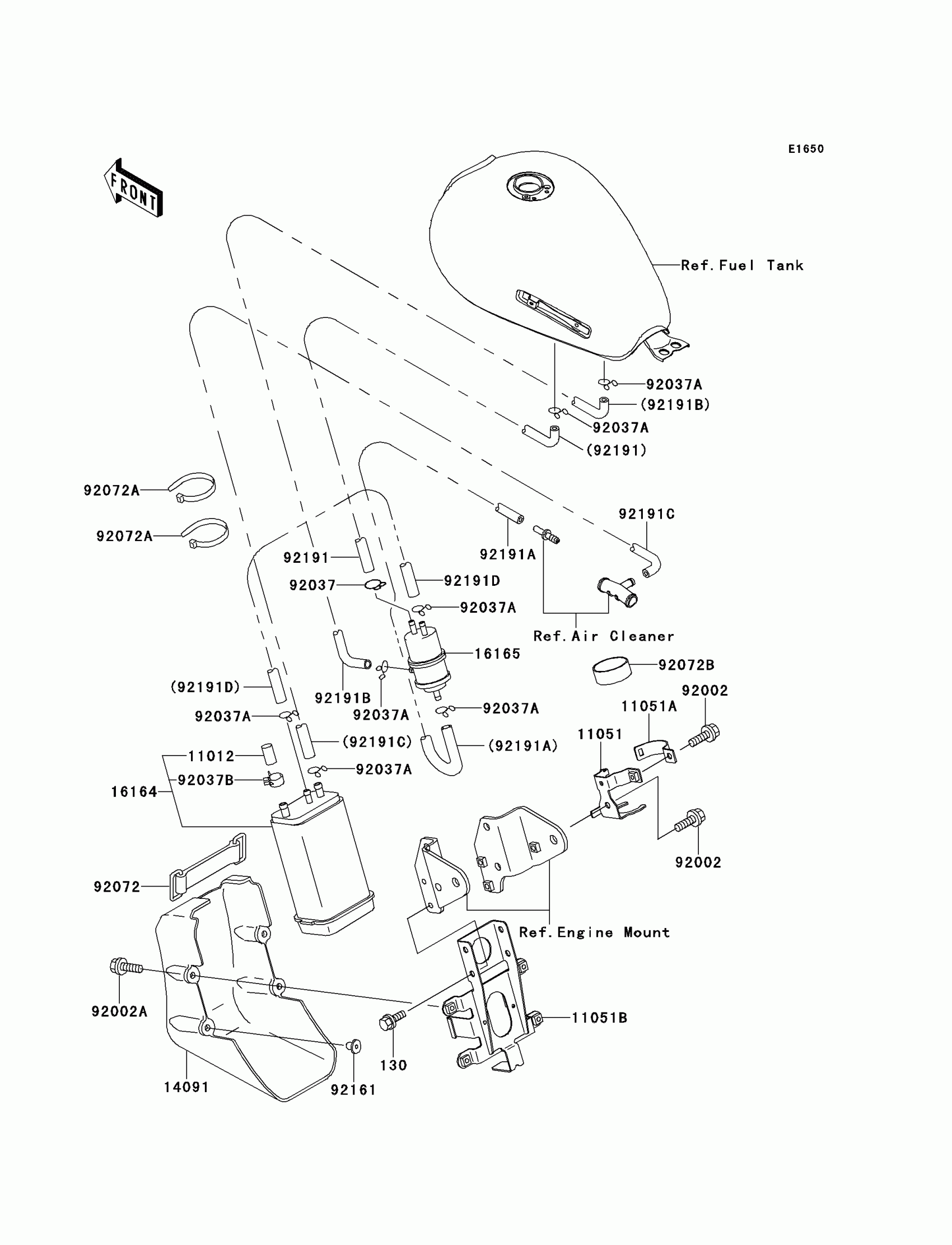

2001 Kawasaki W650 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

11051

BRACKET,SEPARATOR

11051-1447

1
Out of stock

11051A

BRACKET,SEPARATOR

11051-1448

1
Out of stock

11051B

BRACKET,CANISTER

11051-1970

1
Out of stock

14091

COVER,CANISTER

14091-1279

1
Out of stock

16164

CANISTER

16164-1073

1
Out of stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92002

BOLT,6X12

92002-1569

1
Out of stock

92002A

BOLT,6X16

92002-1933

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92072

BAND,L=90

92072-045

1

$14.14

In stock

92072A

BAND,L=250

92072-1237

1

$1.80

In stock

92072B

BAND

92072-1393

1

$5.86

In stock

92161

DAMPER

92161-1160

1

$3.80

In stock

92191

TUBE,BLUE

92191-1507

1
Out of stock

92191A

TUBE,WHITE

92191-1508

1
Out of stock

92191B

TUBE,RED

92191-1509

1

$15.22

In stock

92191C

TUBE,GREEN

92191-1537

1
Out of stock

92191D

TUBE,BLUE

92191-1538

1
Out of stock
