2002 Kawasaki W650 (Canada Only) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

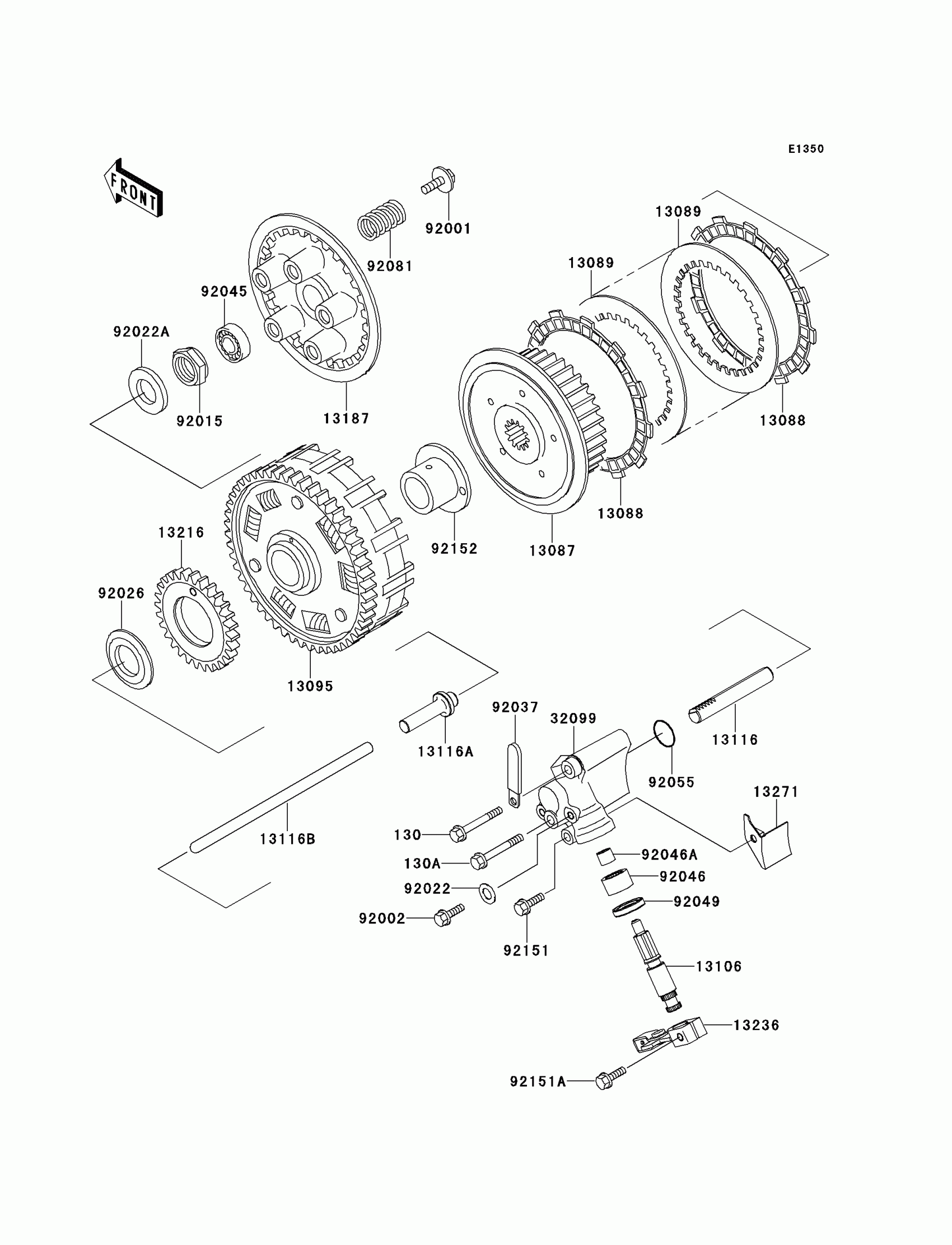

2002 Kawasaki W650 (Canada Only) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130Z0670

1
Out of stock

130A

BOLT-FLANGED

130Z0680

1
Out of stock

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1133

1

$12.15

In stock

13089

PLATE-CLUTCH

13089-027

1

$10.14

In stock

13095

HOUSING-COMP-CLUTCH

13095-1378

1

$545.23

In stock

13106

1

$41.26

In stock

13116

1

$45.25

In stock

13116A

1

$18.29

In stock

13116B

1

$34.05

In stock

13187

1

$76.98

In stock

13216

GEAR-COMP,OIL PUMP

13216-1177

1

$55.98

In stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1331

1
Out of stock

13271

PLATE

13271-1179

1
Out of stock

32099

CASE,CLUTCH RELEASE

32099-1204

1

$62.33

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92002

1

$4.17

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

1

$3.13

In stock

92022A

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25X47X4

92026-1242

1

$29.98

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92045

1

$12.85

In stock

92046

1

$20.10

In stock

92046A

BEARING-NEEDLE,HK0709

92046-1142

1
Out of stock

92049

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,16.8X1.9

92055-1598

1

$1.95

In stock

92081

SPRING,CLUTCH

92081-1864

1

$7.53

In stock

92151

BOLT,6X40

92151-1131

1

$3.87

In stock

92151A

BOLT,FLANGED,6X20

92151-1226

1

$2.03

In stock

92152

COLLAR,CLUTCH GEAR

92152-1146

1

$67.61

In stock
