2002 Kawasaki W650 (Canada Only) Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

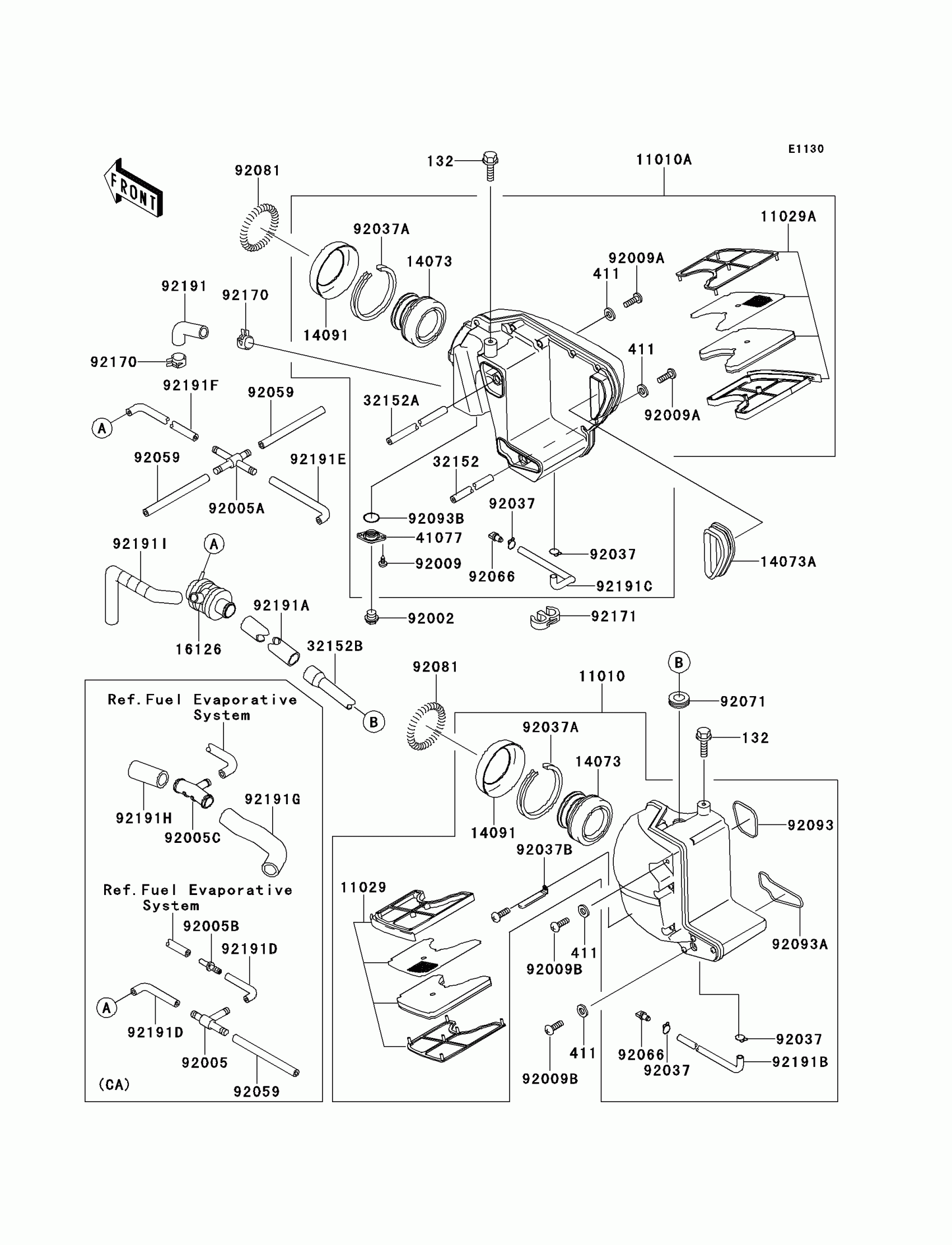

2002 Kawasaki W650 (Canada Only) Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR,LH

11010-1664

1
Out of stock

11010A

FILTER-ASSY-AIR,RH

11010-1731

1
Out of stock

11029

1

$26.29

In stock

11029A

1

$26.29

In stock

14073

DUCT,CARBURETOR

14073-1413

1

$24.20

In stock

14073A

DUCT

14073-1744

1
Out of stock

14091

COVER,AIR FILTER

14091-1088

1

$9.24

In stock

16126

VALVE,AIR SWITCH

16126-1376

1
Out of stock

32152

PIPE,L=220

32152-1895

1
Out of stock

32152A

PIPE,L=305

32152-1931

1

$10.86

In stock

32152B

PIPE,AIR SUCTION VALVE

32152-1946

1
Out of stock

41077

ADAPTER

41077-1101

1
Out of stock

92002

BOLT,16X10

92002-1448

1
Out of stock

92005A

FITTING,TUBE,X-TYPE

92005-1051

1
Out of stock

92009

SCREW,TAPPING,5X12

92009-1051

1
Out of stock

92009A

SCREW,TAPPING,5X20

92009-1399

1
Out of stock

92009B

SCREW,TAPPING,5X20

92009-1906

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,69MM

92037-1631

1

$12.08

In stock

92037B

CLAMP

92037-1679

1

$4.37

In stock

92059

TUBE,4X9X80

92059-1365

1

$12.97

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92071

1

$3.68

In stock

92081

SPRING,COIL,BLACK

92081-1457

1

$9.04

In stock

92093

SEAL

92093-1496

1

$3.27

In stock

92093A

SEAL

92093-1497

1

$3.97

In stock

92093B

SEAL

92093-1505

1
Out of stock

92170

CLAMP

92170-1060

1

$7.93

In stock

92171

CLAMP

92171-1432

1
Out of stock

92191

TUBE,BREATHER

92191-1379

1
Out of stock

92191A

TUBE,AIR SWITCH CLEANER

92191-1389

1
Out of stock

92191B

TUBE,DRAIN

92191-1391

1
Out of stock

132

BOLT-FLANGED-SMALL

132Y0608

1
Out of stock

411

WASHER-PLAIN,5MM,BLACK

411F0500

1
Out of stock

92191C

TUBE,DRAIN

92191-1392

1
Out of stock

92191E

TUBE,FITTING-TAP

92191-1422

1

$7.22

In stock

92191F

1

$4.92

In stock

92191I

TUBE,HEAD-AIR SWITCH

92191-1671

1
Out of stock
