2002 Kawasaki W650 (Canada Only) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

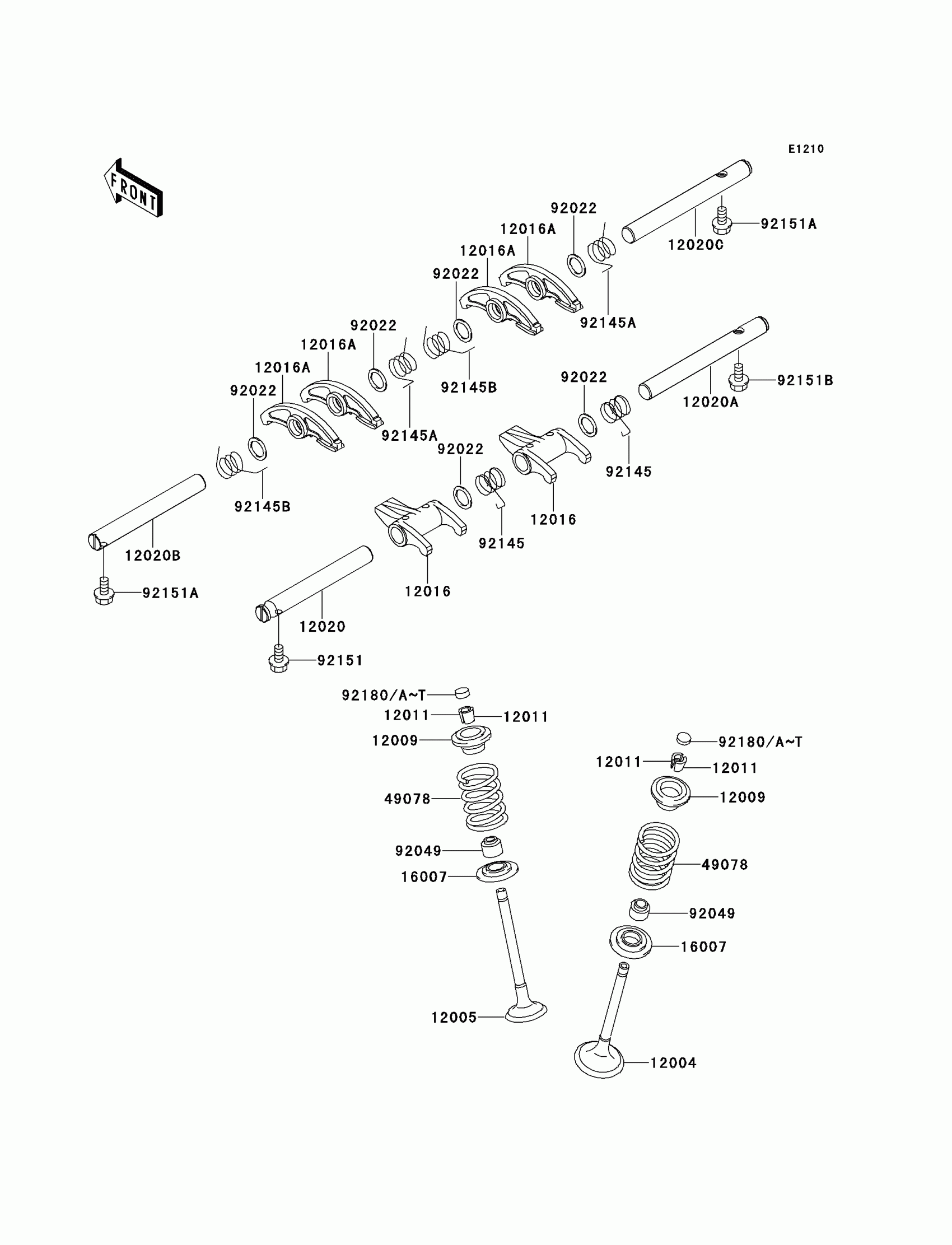

2002 Kawasaki W650 (Canada Only) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1138

1

$39.75

In stock

12005

VALVE-EXHAUST

12005-1301

1

$70.01

In stock

12009

1

$10.25

In stock

12011

COLLET

12011-1053

1

$4.34

In stock

12016

ARM-ROCKER,INTAKE

12016-1116

1

$136.20

In stock

12016A

ARM-ROCKER,EXHAUST

12016-1117

1

$88.14

In stock

12020

1

$49.12

In stock

12020A

1

$49.12

In stock

12020B

1

$66.84

In stock

12020C

1

$66.84

In stock

16007

SEAT-SPRING

16007-1163

1

$23.01

In stock

49078

SPRING-ENGINE VALVE

49078-1182

1

$14.05

In stock

92022

WASHER,13.2X20X0.5

92022-1224

1

$3.43

In stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock

92145

1

$3.20

In stock

92145A

1

$3.20

In stock

92145B

1

$3.20

In stock

92151

BOLT,6X25

92151-1641

1
Out of stock

92151A

BOLT,6X22

92151-1643

1
Out of stock

92151B

BOLT,6X16

92151-1644

1
Out of stock

92180

SHIM,T=2.50

92180-1014

1

$14.27

In stock

92180A

SHIM,T=2.55

92180-1016

—

$14.27

In stock

92180B

SHIM,T=2.60

92180-1018

—

$16.98

In stock

92180C

SHIM,T=2.65

92180-1020

—

$16.98

In stock

92180D

SHIM,T=2.70

92180-1022

—

$16.98

In stock

92180E

SHIM,T=2.75

92180-1024

—

$16.98

In stock

92180F

SHIM,T=2.80

92180-1026

—

$14.27

In stock

92180G

SHIM,T=2.85

92180-1028

—

$14.27

In stock

92180H

SHIM,T=2.90

92180-1030

—

$16.98

In stock

92180I

SHIM,T=2.95

92180-1032

—

$16.98

In stock

92180J

SHIM,T=3.00

92180-1034

—

$16.98

In stock

92180K

SHIM,T=3.05

92180-1036

—

$16.98

In stock

92180L

SHIM,T=3.10

92180-1038

—

$16.98

In stock

92180M

SHIM,T=3.15

92180-1040

—

$16.98

In stock

92180N

SHIM,T=3.20

92180-1042

—

$16.98

In stock

92180O

SHIM,T=3.25

92180-1044

—

$16.98

In stock

92180P

SHIM,T=3.30

92180-1046

—

$16.98

In stock

92180Q

SHIM,T=3.35

92180-1048

—

$14.27

In stock

92180R

SHIM,T=3.40

92180-1050

—

$16.98

In stock

92180S

SHIM,T=3.45

92180-1052

—

$16.98

In stock

92180T

SHIM,T=3.50

92180-1054

—

$16.98

In stock
