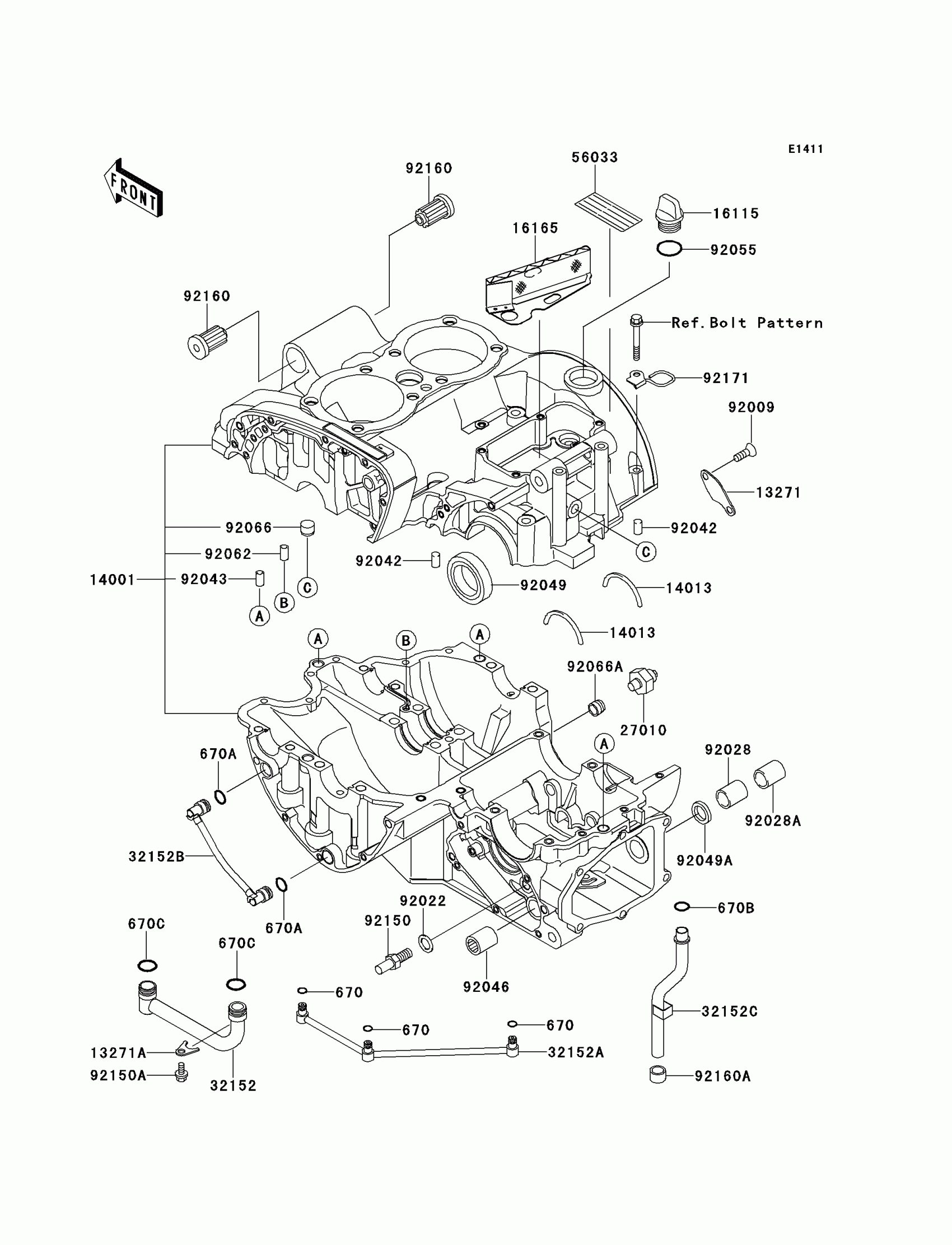

Find the part on the Crankcase diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING

670D1505

1

$3.43

In stock

670A

O RING,10MM

670D2010

1

$1.63

In stock

670B

O RING,12MM

670D2012

1

$2.19

In stock

670C

O RING,14MM

670D2014

1

$4.37

In stock

13271

PLATE,BREATHER

13271-1186

1
Out of stock

13271A

PLATE,OIL PIPE

13271-1187

1
Out of stock

14001

SET-CRANKCASE

14001-1260

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

16165

SEPARATOR,BREATHER

16165-1068

1

$33.74

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

32152

PIPE,MAIN OIL

32152-1902

1

$43.29

In stock

32152A

1

$58.53

In stock

32152B

PIPE,BALANCER OIL

32152-1904

1

$58.53

In stock

32152C

PIPE,BREATHER OIL

32152-1905

1

$16.56

In stock

56033

LABEL-MANUAL,OIL CAPACITY

56033-1155

1
Out of stock

92009

SCREW,6X12

92009-1880

1
Out of stock

92022

WASHER,10X15X1.0

92022-1973

1
Out of stock

92028

BUSHING,KICK LEVER,INSIDE

92028-1899

1
Out of stock

92028A

1

$7.29

In stock

92042

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,HTC40628

92049-1501

1
Out of stock

92049A

SEAL-OIL,KICK PEDAL

92049-1523

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92062

NOZZLE,6X8,BLACK

92062-1079

1

$8.37

In stock

92066

PLUG,10.5MM

92066-1355

1

$5.37

In stock

92066A

PLUG,MAIN GALLERY

92066-1530

1
Out of stock

92150

BOLT,RETURN SPRING

92150-1803

1

$9.22

In stock

92150A

BOLT,FLANGED,6X12

92150-1826

1

$3.20

In stock

92160

DAMPER,ENGINE MOUNT

92160-1483

1
Out of stock

92160A

DAMPER,BREATHER PIPE

92160-1986

1
Out of stock

92171

CLAMP,DRAIN TUBE

92171-1124

1

$13.54

In stock
