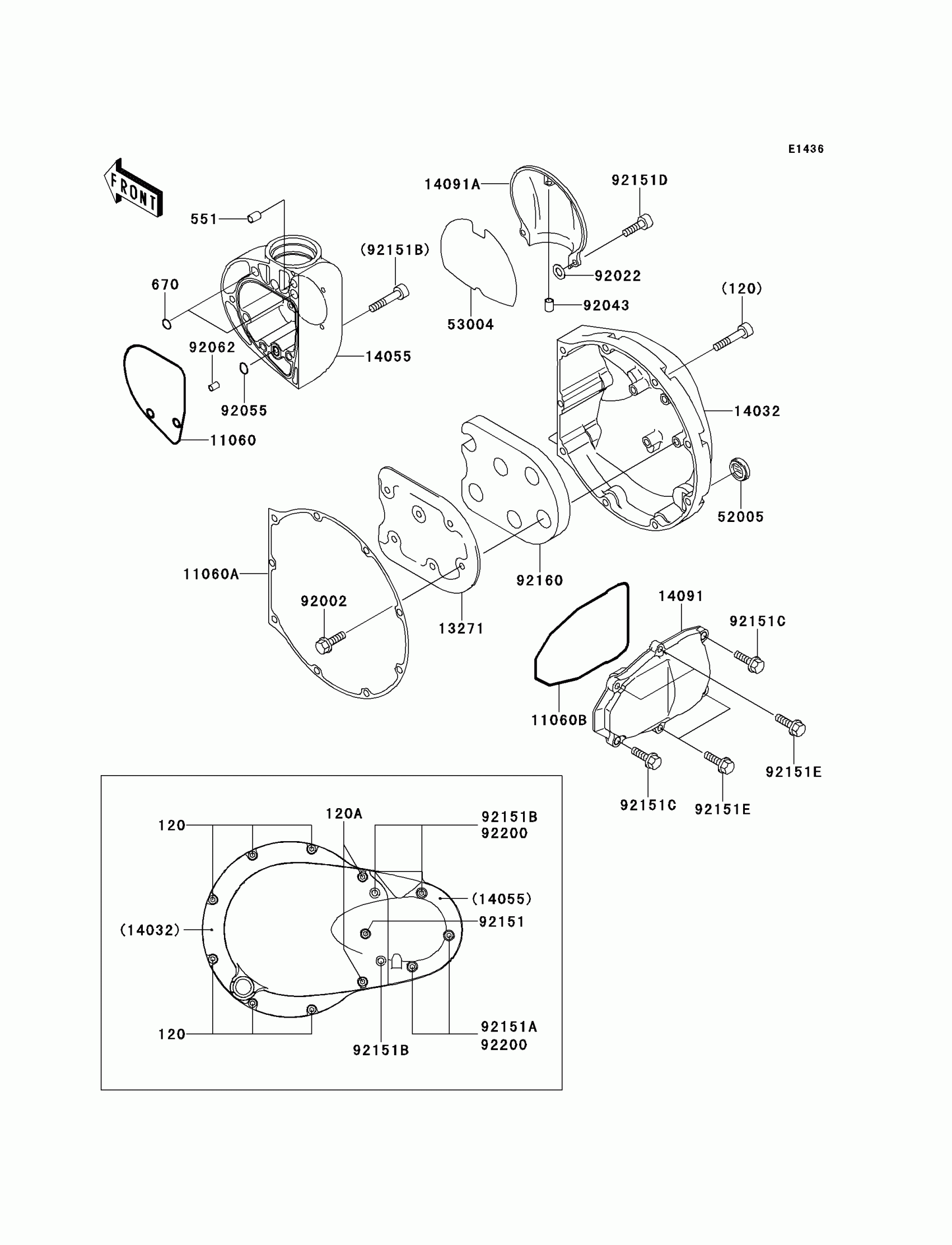

Kawasaki W650 (Canada Only) Right Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X25

120R0625

$3.75

120A

BOLT-SOCKET,6X50

120R0650

$4.68

551

PIN-DOWEL,8X20

551A0820

$0.93

670

O RING,7MM

670D1507

$1.24

11060

GASKET,GEAR CASE

11060-1890

$15.00

11060A

GASKET,CLUTCH COVER

11060-1891

$21.47

11060B

GASKET,KICK COVER

11060-1896

Unavailable

13271

PLATE,SOUND ARRESTER

13271-1215

$8.93

14032

COVER-CLUTCH

14032-1495

$227.84

14055

CASE-GEAR

14055-1141

$128.46

14091

COVER,KICK

14091-1080

$114.65

14091A

COVER,BEVEL GEAR

14091-1287

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

53004

MAT,BEVEL COVER

53004-1124

$7.18

92002

BOLT,6X10

92002-1541

$4.27

92022

WASHER,5.2X10X1.5

92022-1023

$2.99

92043

PIN,6X12

92043-1606

$1.97

92055

RING-O,12.3X1.9

92055-1594

$1.95

92062

NOZZLE,6X8,BLACK

92062-1079

$8.37

92151

BOLT,SOCKET,6X70

92151-1495

Unavailable

92151A

BOLT,SOCKET,6X55

92151-1496

$2.19

92151B

BOLT,SOCKET,6X60

92151-1497

$1.89

92151C

BOLT

92151-1499

Unavailable

92151D

BOLT,SOCKET,5X14

92151-1581

$1.35

92151E

BOLT,6X22

92151-1642

Unavailable

92160

DAMPER,SOUND ARRESTER

92160-1996

Unavailable

92200

WASHER,6.8X11.5X1.0

92200-1461

$1.89
