2002 Kawasaki W650 (Canada Only) Cylinder Head Diagram

← All diagrams

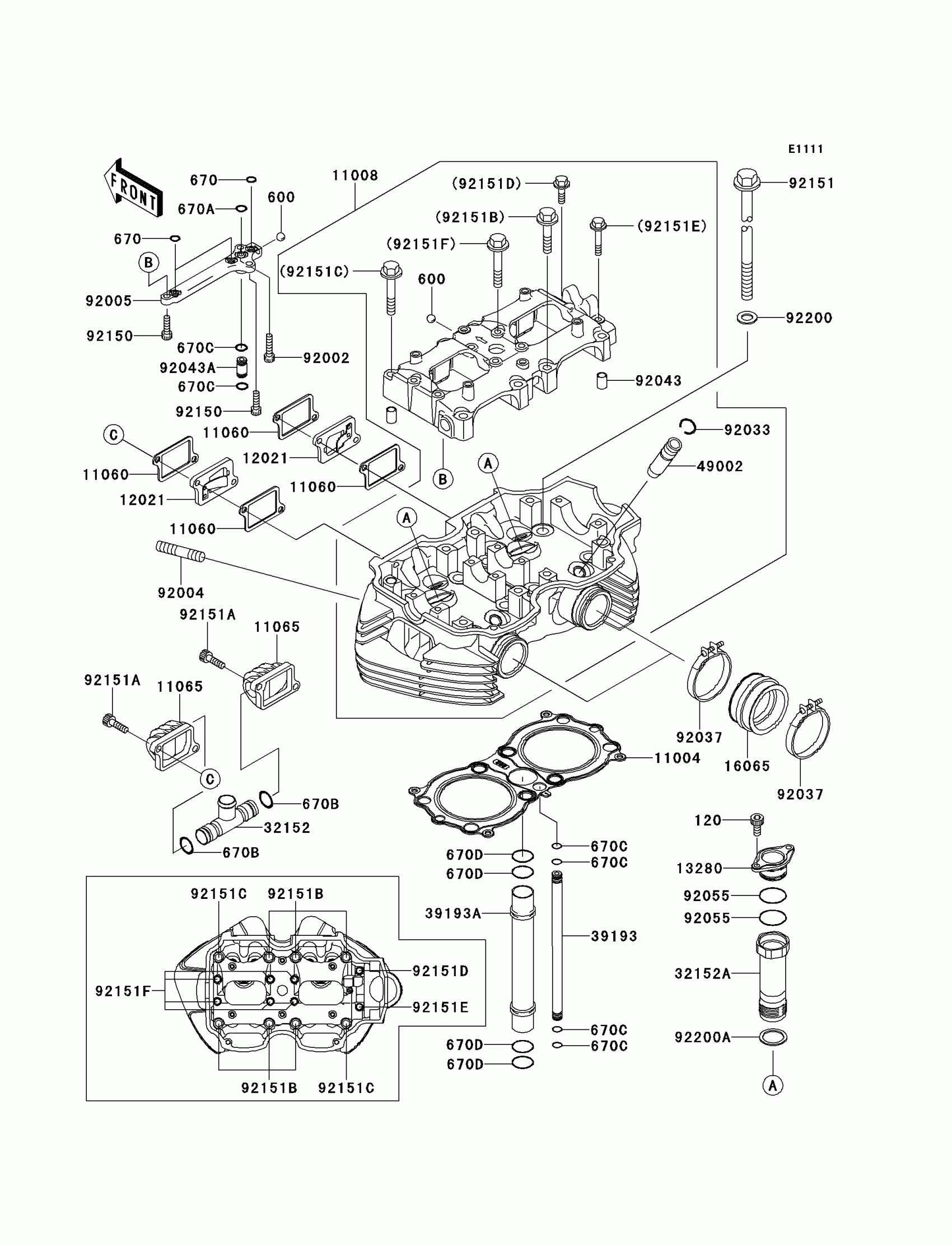

Find the part on the Cylinder Head diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120R0514

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

670

O RING,9MM

670D1509

1
Out of stock

670A

O RING,10MM

670D1510

1
Out of stock

670B

O RING,14MM

670D2014

1
Out of stock

670C

O RING

670E1507

1
Out of stock

670D

O RING,22MM

670E2022

1
Out of stock

11004

GASKET-HEAD

11004-1341

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1362

1
Out of stock

11060

GASKET,AIR SUCTION VALVE

11060-1886

1
Out of stock

11065

CAP

11065-1121

1
Out of stock

12021

VALVE-ASSY-REED

12021-1115

1
Out of stock

13280

HOLDER

13280-1118

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1361

1
Out of stock

32152

PIPE,AIR SUCTION VALVE

32152-1900

1
Out of stock

32152A

PIPE,PLUG HOLE

32152-1901

1
Out of stock

39193

PIPE-OIL,CASE-HEAD

39193-1045

1
Out of stock

39193A

PIPE-OIL

39193-1046

1
Out of stock

49002

GUIDE-VALVE

49002-1116

—
Out of stock

92002

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

92004

STUD,8X30

92004-1121

1
Out of stock

92005

FITTING

92005-1361

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92037

CLAMP

92037-1523

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN

92043-1587

1
Out of stock

92055

RING-O,24.7X1.9

92055-1592

1
Out of stock

92150

BOLT,SOCKET,6X20

92150-1880

1
Out of stock

92151

BOLT,11X195

92151-1452

1
Out of stock

92151A

BOLT,SOCKET,6X22

92151-1455

1
Out of stock

92151B

BOLT,8X40

92151-1621

1
Out of stock

92151C

BOLT,8X50

92151-1622

1
Out of stock

92151D

BOLT,6X22

92151-1623

1
Out of stock

92151E

BOLT,6X35

92151-1624

1
Out of stock

92151F

BOLT,6X50

92151-1625

1
Out of stock

92200

WASHER,11.5X20.5X1.6

92200-1128

1
Out of stock

92200A

WASHER,22X26X1.2

92200-1484

1
Out of stock
