2002 Kawasaki W650 (Canada Only) Kickstarter Mechanism Diagram

← All diagrams

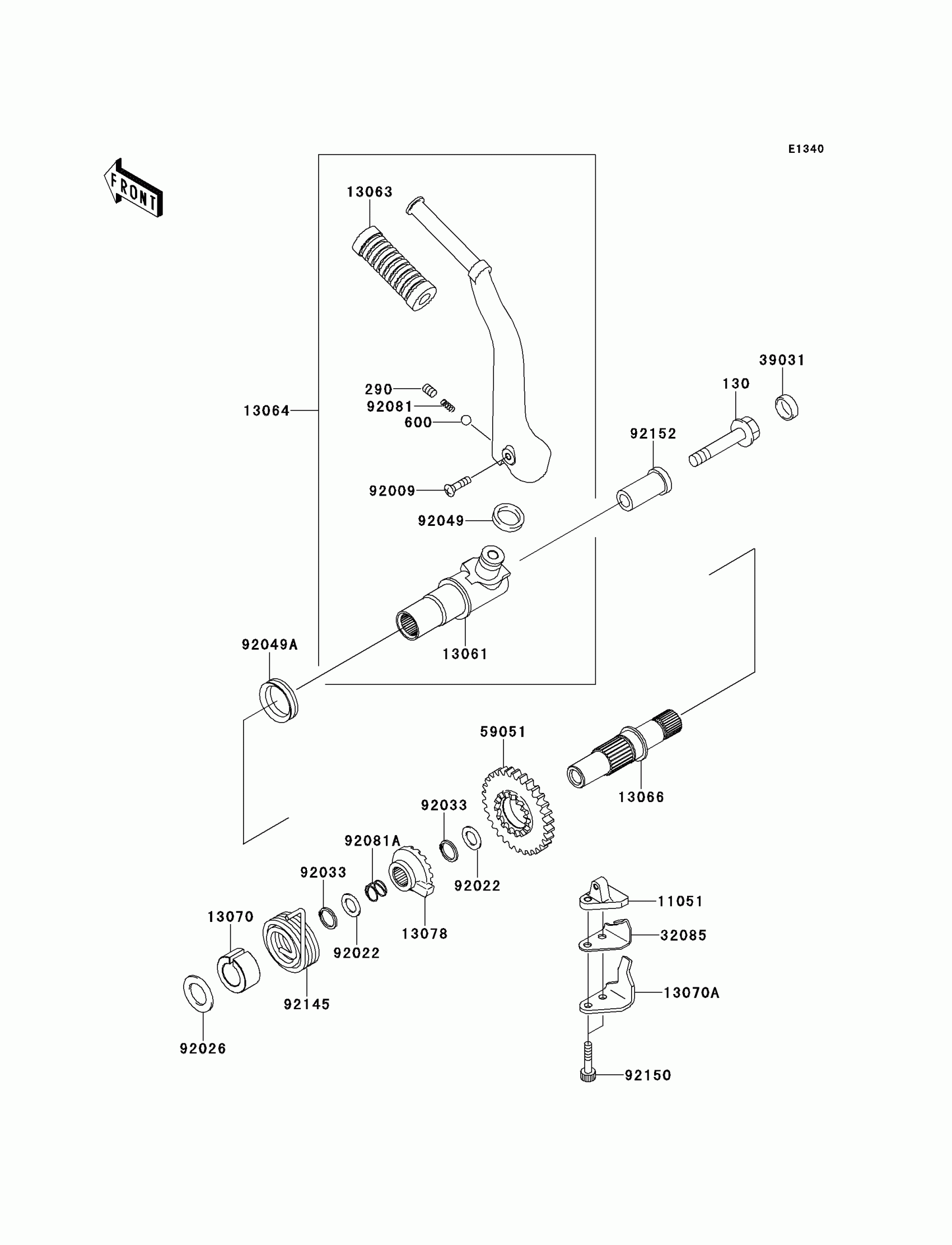

Find the part on the Kickstarter Mechanism diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130T1070

1
Out of stock

290

SCREW-SET-SOCKET

290P0812

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

11051

BRACKET

11051-1210

1
Out of stock

13061

BOSS,KICK PEDAL

13061-1728

1
Out of stock

13063

DAMPER,KICK PEDAL

13063-004

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1192

1
Out of stock

13066

SHAFT-KICK

13066-1102

1
Out of stock

13070

GUIDE,RETURN SPRING

13070-1334

1
Out of stock

13070A

GUIDE

13070-1335

1
Out of stock

13078

RATCHET

13078-1051

1
Out of stock

32085

STOPPER

32085-1488

1
Out of stock

39031

CAP-END

39031-1061

1
Out of stock

59051

GEAR-SPUR,KICK SHAFT

59051-1376

1
Out of stock

92009

SCREW,6X30

92009-1590

1
Out of stock

92022

WASHER,25.3X30X0.5

92022-159

1
Out of stock

92026

SPACER,KICK GUIDE

92026-1537

1
Out of stock

92033

RING-SNAP,24MM

92033-026

1
Out of stock

92049

SEAL-OIL

92049-1406

1
Out of stock

92049A

SEAL-OIL

92049-1505

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING

92081-097

1
Out of stock

92145

SPRING,KICK RETURN

92145-1219

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1653

1
Out of stock

92152

COLLAR,KICKSTARTER

92152-1145

1
Out of stock
