2002 Kawasaki W650 (Canada Only) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

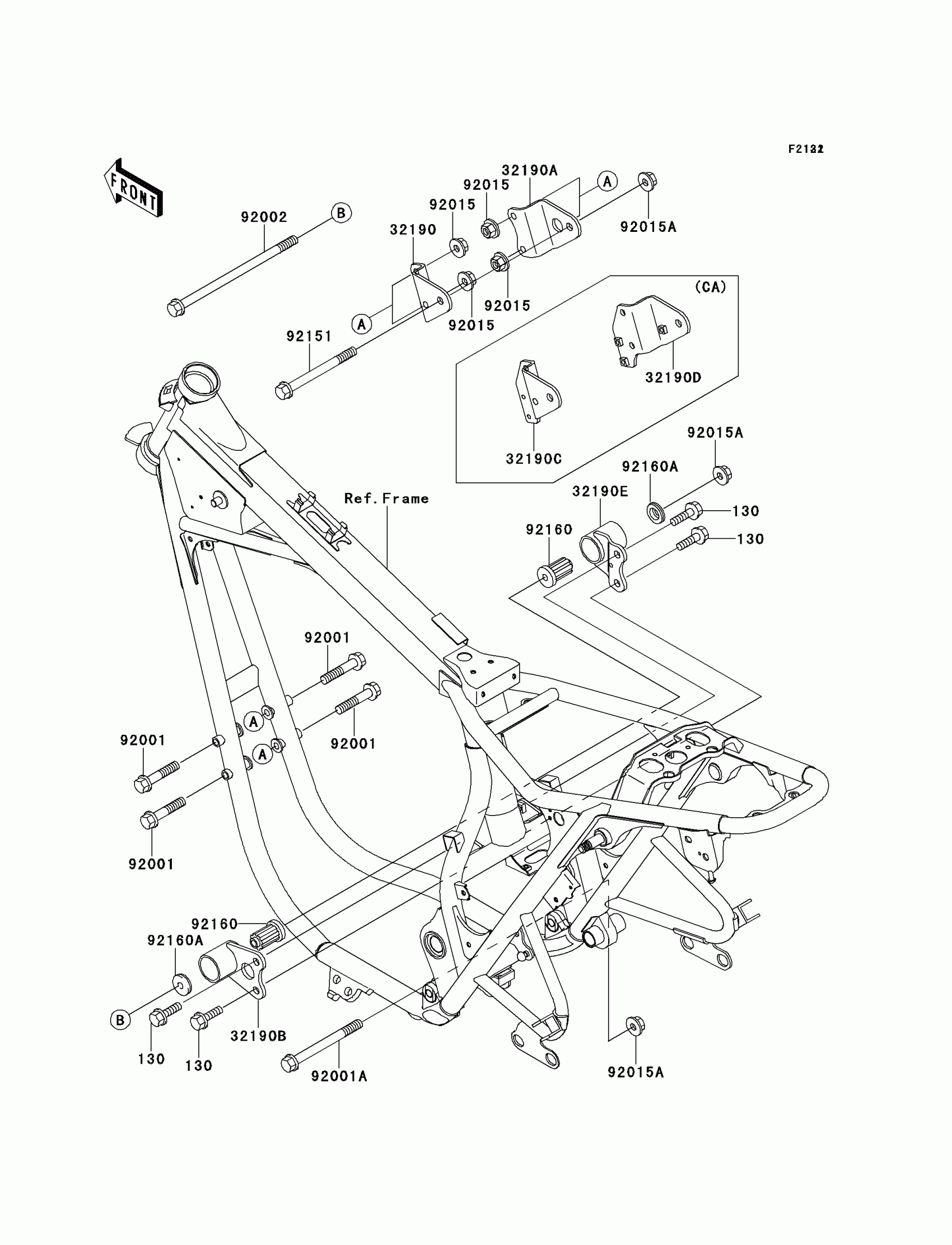

2002 Kawasaki W650 (Canada Only) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

32190

1

$20.66

In stock

32190A

1

$20.66

In stock

32190B

1

$25.12

In stock

32190E

1

$30.93

In stock

92001

1

$5.97

In stock

92001A

1

$19.25

In stock

92002

BOLT,FLANGED,10X230

92002-1531

1

$19.69

In stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,LOCK,10MM

92015-1522

1

$7.49

In stock

92151

BOLT,FLANGED,10X135

92151-1783

1

$9.49

In stock

92160

DAMPER,ENGINE MOUNT

92160-1483

1
Out of stock

92160A

DAMPER

92160-1984

1

$4.68

In stock
