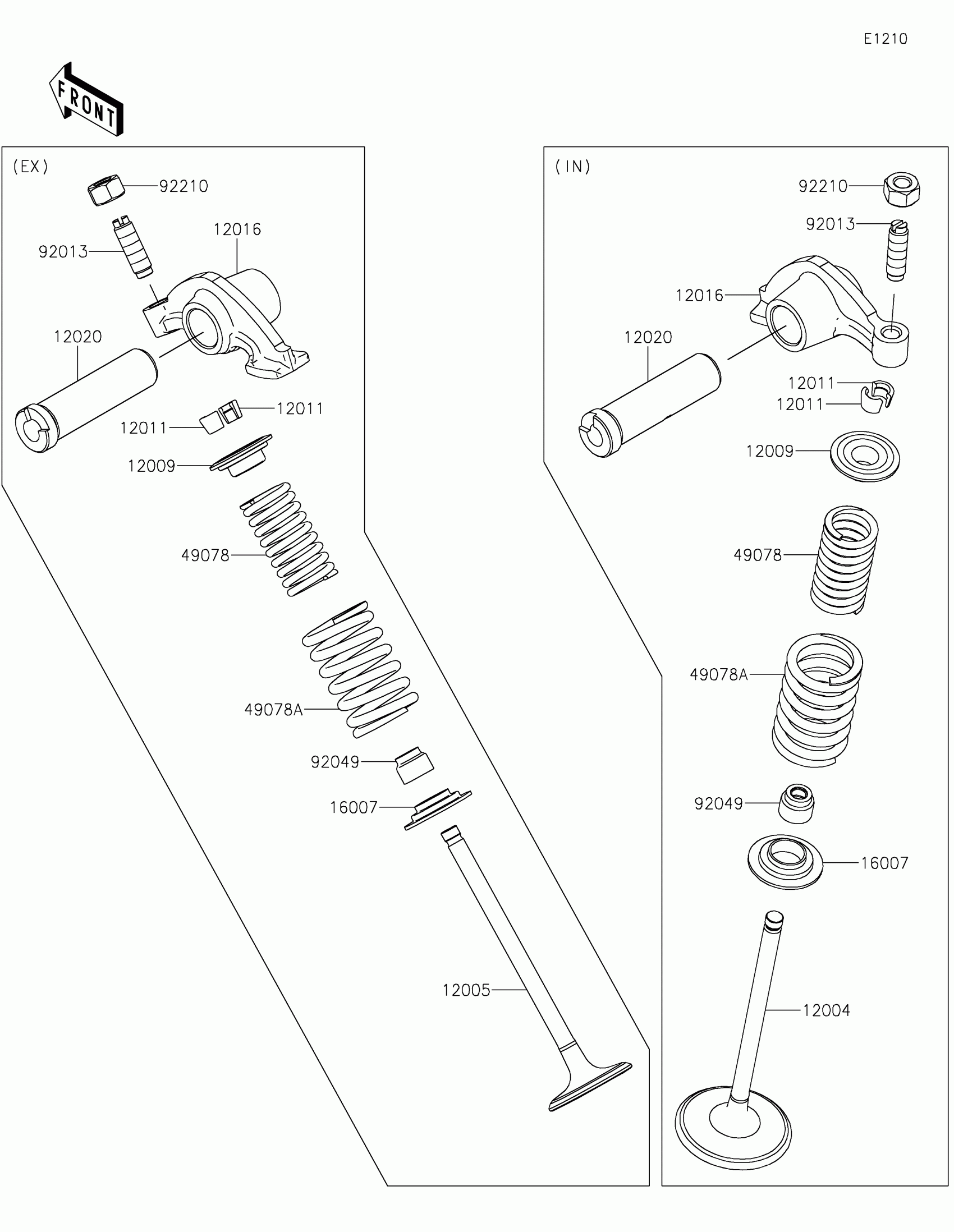

Find the part on the Valve diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0780

1

$61.18

In stock

12005

VALVE-EXHAUST

12005-0803

1

$62.14

In stock

12009

1

$10.02

In stock

12011

COLLET

12011-1003

1

$3.69

In stock

12016

ARM-ROCKER

12016-0728

1

$56.34

In stock

12020

SHAFT-ROCKER

12020-0030

1

$14.56

In stock

16007

SEAT-SPRING

16007-0787

1

$22.42

In stock

49078

SPRING-ENGINE VALVE

49078-0756

1

$13.03

In stock

49078A

SPRING-ENGINE VALVE

49078-0757

1

$14.97

In stock

92013

SCREW,6MM

92013-009

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92210

NUT,6MM

92210-1490

1
Out of stock
