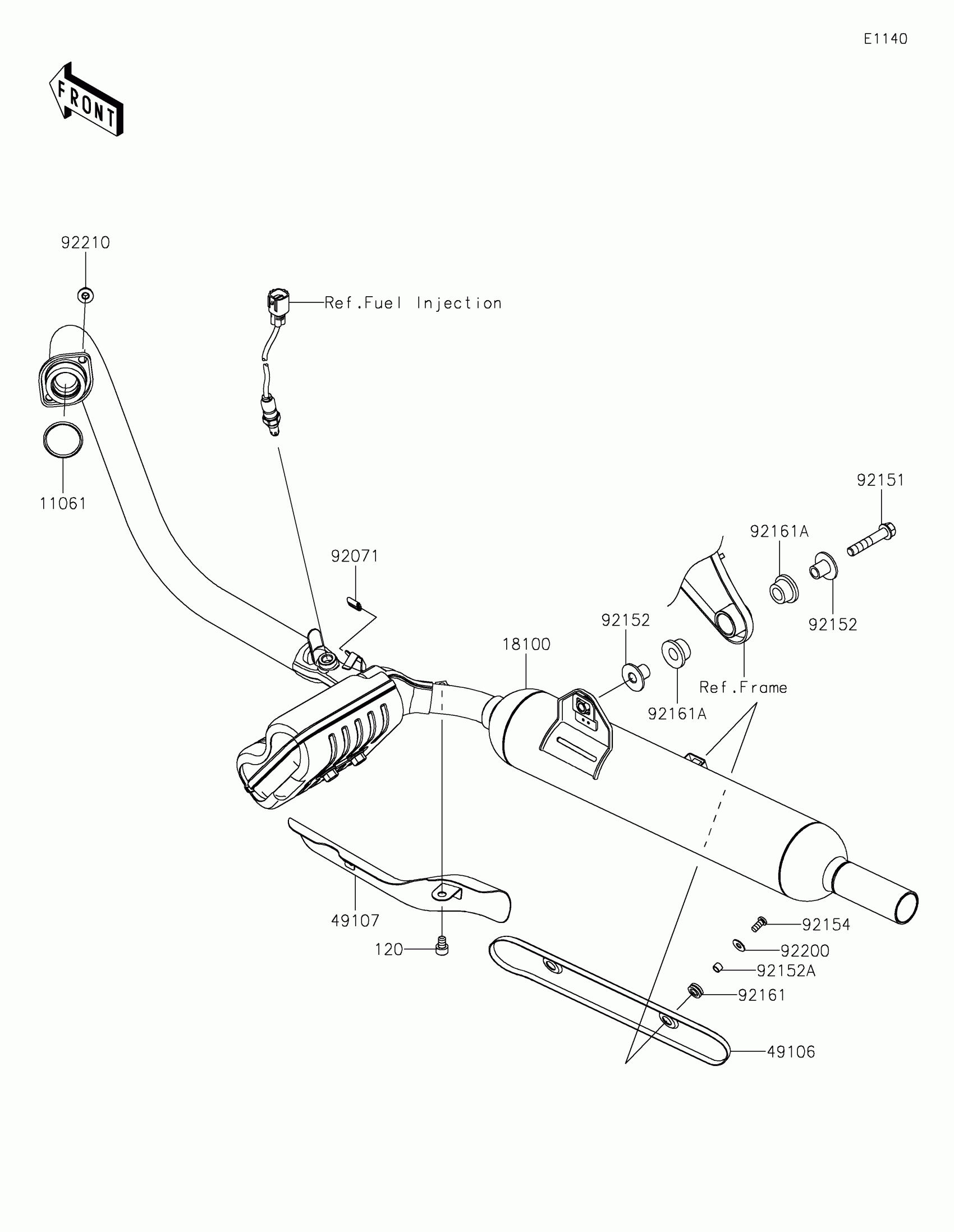

Find the part on the Muffler diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EX PIPE

11061-0027

1

$6.05

In stock

18100

BODY-ASSY-MUFFLER

18100-0635

1

$971.66

In stock

49106

COVER-MUFFLER

49106-0889

1

$96.21

In stock

49107

COVER-EXHAUST PIPE

49107-0883

1

$106.53

In stock

92071

GROMMET

92071-1226

1

$5.11

In stock

92151

BOLT,FLANGED,10X54

92151-1785

1

$3.69

In stock

92152

COLLAR

92152-1682

1
Out of stock

92152A

COLLAR,6.5X8.5X6

92152-1962

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-2817

1

$2.75

In stock

92161

DAMPER

92161-1475

1

$4.23

In stock

92161A

DAMPER

92161-1497

1

$2.68

In stock

92200

WASHER,6.5X16X1

92200-1974

1

$3.29

In stock

92210

NUT,8MM

92210-2207

1

$1.14

In stock

120

BOLT-SOCKET,8X12

120CB0812

1

$1.66

In stock
