2025 Kawasaki W230 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

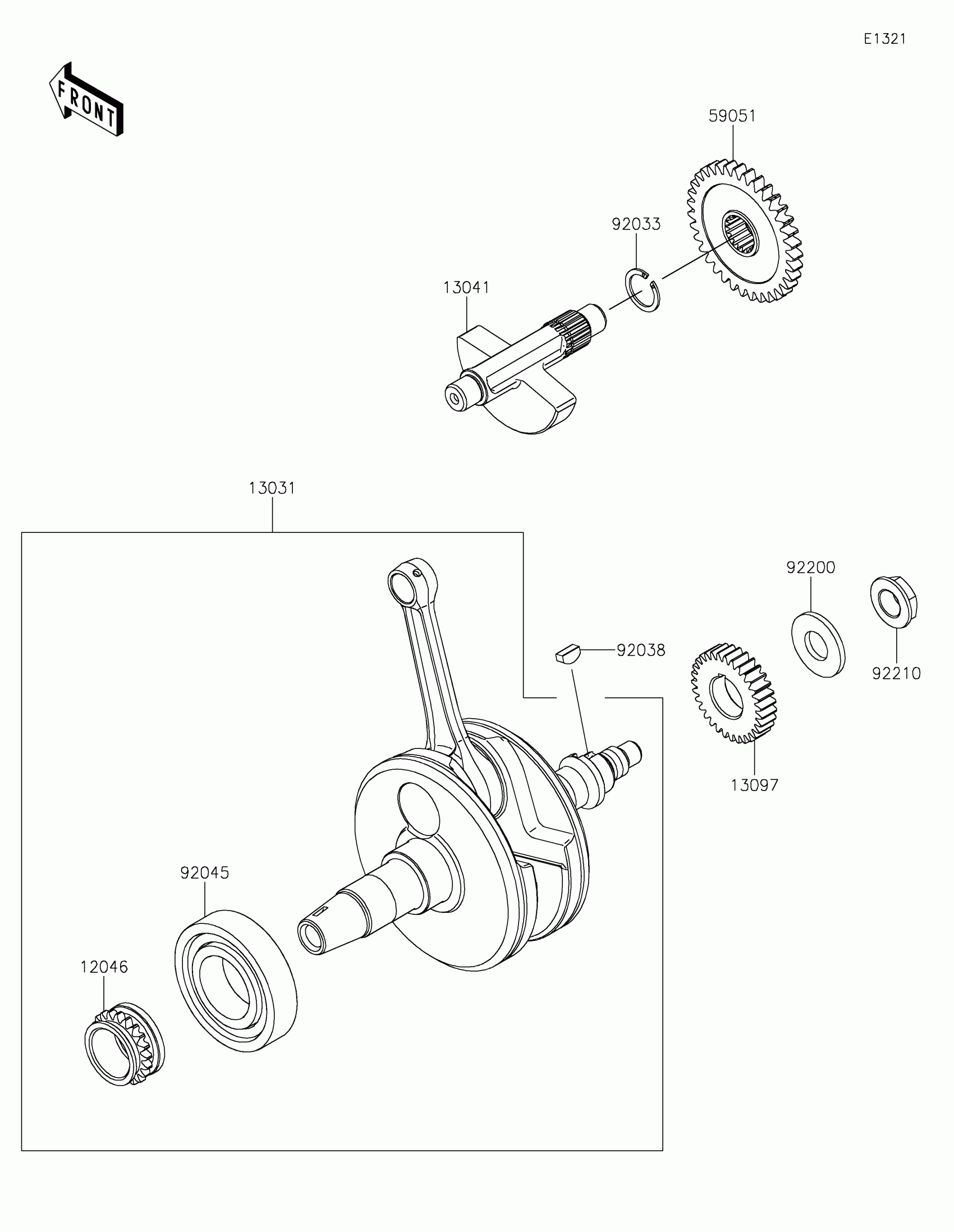

2025 Kawasaki W230 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,21T

12046-0613

1

$28.89

In stock

13031

CRANKSHAFT-COMP

13031-1556

1

$682.08

In stock

13041

BALANCER

13041-0571

1

$102.25

In stock

13097

1

$79.65

In stock

59051

1

$90.58

In stock

92033

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92038

KEY

92038-1057

1

$4.80

In stock

92045

BEARING-BALL,6207CS17

92045-0906

1
Out of stock

92200

WASHER,16.3X35X3.2

92200-0119

1
Out of stock

92210

NUT,16MM

92210-1538

1

$10.73

In stock
