2025 Kawasaki W230 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

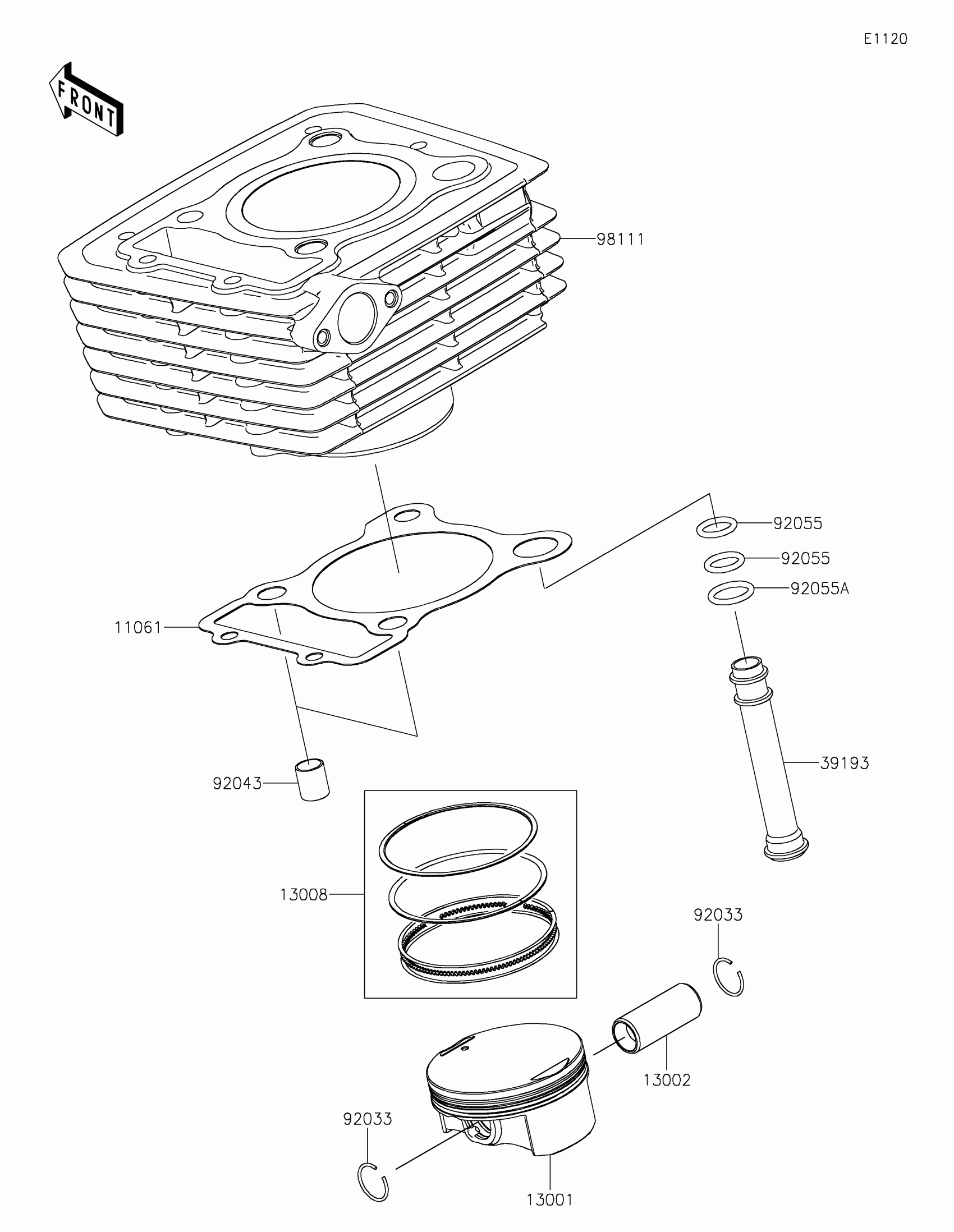

2025 Kawasaki W230 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$7.56

In stock

13001

PISTON-ENGINE

13001-0850

1

$130.08

In stock

13002

PIN-PISTON

13002-0718

1

$14.37

In stock

13008

RING-SET-PISTON

13008-0580

1

$39.49

In stock

39193

PIPE-OIL

39193-0586

1

$7.80

In stock

92033

1

$3.23

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,12.3X2.4

92055-0918

1

$2.29

In stock

92055A

RING-O,14.8X2.4

92055-0919

1

$12.63

In stock

98111

1

$570.36

In stock
