2025 Kawasaki W230 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

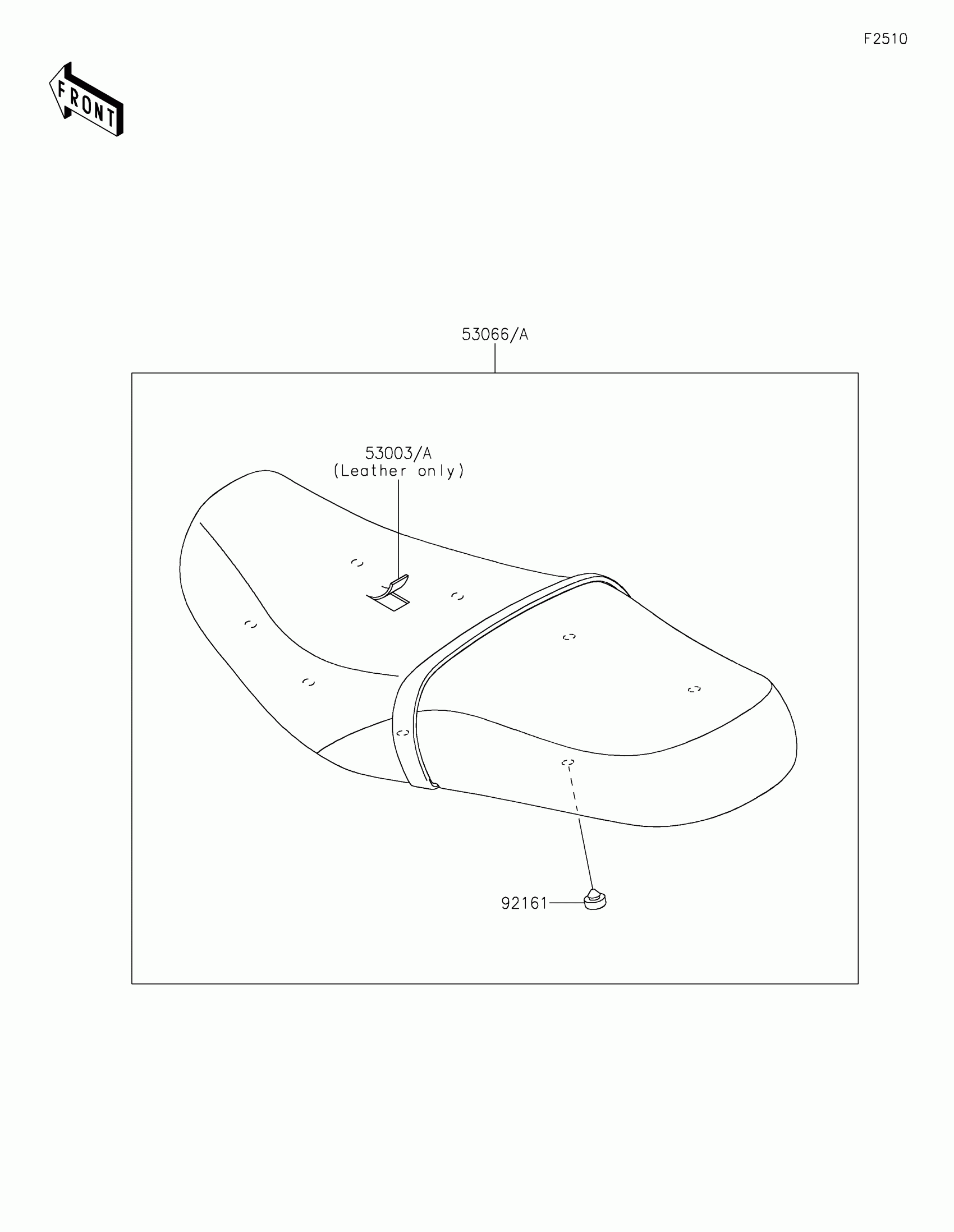

2025 Kawasaki W230 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53003

LEATHER,SEAT,BLACK+BLK+WHT

53003-0711-77A

1
Out of stock

53003A

1

$201.03

In stock

53066

SEAT-ASSY,BLACK+BLK+WHT

53066-0934-77A

1
Out of stock

53066A

SEAT-ASSY,BLACK+BLK+BLK

53066-0934-77R

1

$502.53

In stock

92161

DAMPER,10X20X8

92161-1609

1

$4.98

In stock
