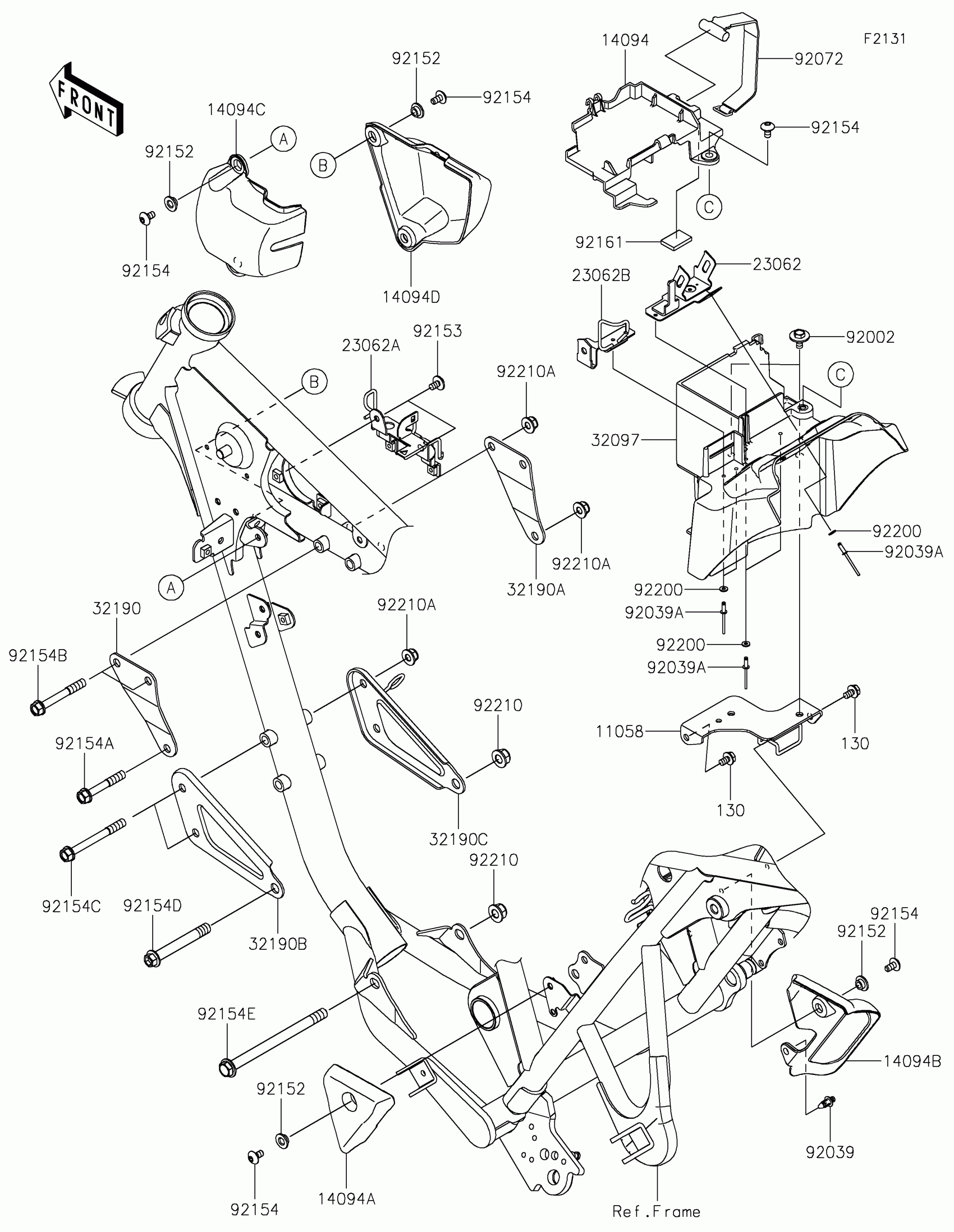

Find the part on the Frame Fittings diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$14.88

In stock

14094

COVER,BATTERY

14094-0140

1

$30.17

In stock

14094A

COVER,PIVOT,LH

14094-0141

1

$23.00

In stock

14094B

COVER,PIVOT,RH

14094-0142

1

$22.97

In stock

14094C

COVER,ABS-UNIT,LH

14094-0143

1

$29.00

In stock

14094D

COVER,ABS-UNIT,RH

14094-0144

1

$29.79

In stock

23062

BRACKET-COMP

23062-1523

1

$9.58

In stock

23062A

1

$20.10

In stock

23062B

BRACKET-COMP,RELAY

23062-1575

1

$8.12

In stock

32097

CASE-BATTERY

32097-0575

1

$43.53

In stock

32190

1

$11.81

In stock

32190A

1

$11.81

In stock

32190B

1

$18.46

In stock

32190C

1

$20.73

In stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92039A

RIVET,3.2X9.5

92039-0752

1

$0.93

In stock

92072

BAND,BATTERY

92072-0953

1

$8.56

In stock

92152

COLLAR

92152-3921

1

$1.53

In stock

92153

BOLT,SOCKET,6X10

92153-1800

1

$1.53

In stock

92154

BOLT,SOCKET,6X12

92154-1484

1

$2.03

In stock

92154A

BOLT,FLANGED,8X52

92154-7525

1

$4.68

In stock

92154B

BOLT,FLANGED,8X62

92154-7526

1

$5.29

In stock

92154C

BOLT,FLANGED,8X77

92154-7527

1

$7.68

In stock

92154D

BOLT,FLANGED,10X77

92154-7528

1

$11.44

In stock

92154E

BOLT,FLANGED,10X137

92154-7529

1

$19.76

In stock

92161

DAMPER,18X26X4

92161-2624

1

$0.64

In stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

92210A

NUT,8MM,M=8.5

92210-1649

1

$2.41

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
