2025 Kawasaki W230 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

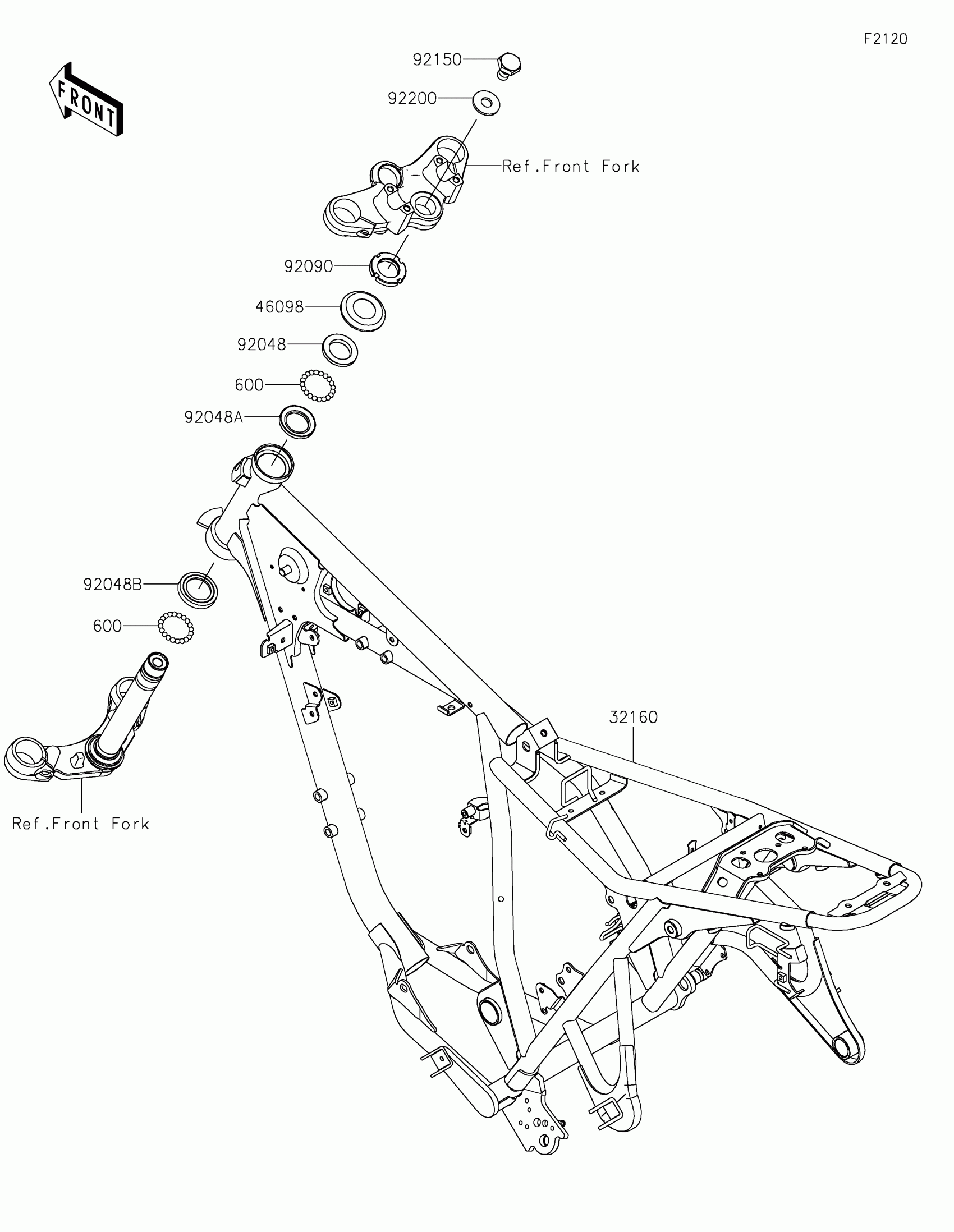

2025 Kawasaki W230 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,MAIN

32160-2040

1

$1,428.46

In stock

46098

CAP,STEERING STEM

46098-016

1

$5.66

In stock

92048

1

$13.85

In stock

92048A

1

$9.20

In stock

92048B

1

$12.67

In stock

92090

NUT,30MM

92090-007

1

$9.29

In stock

92150

BOLT,14X25

92150-1672

1

$13.51

In stock

92200

WASHER,14.5X36X3.2

92200-2648

1

$3.80

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
